Advantech AIM Estación de acoplamiento para vehículo - Estación de acoplamiento

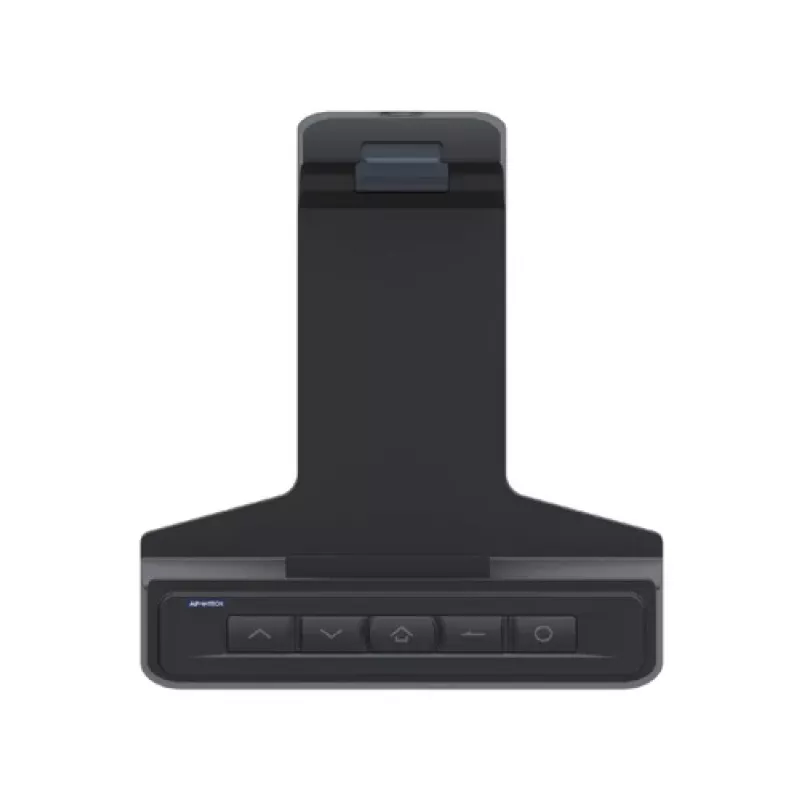

Field technicians and mobile workers often struggle to keep their tablets secure, charged, and connected while on the move. The Advantech AIM-VED0-0422 vehicle docking station solves this by providing a rugged, reliable mounting and connectivity hub for Advantech AIM series tablets in vehicles.

Who is it for

This docking station is ideal for professionals in logistics, public safety, field service, and transportation who need hands-free tablet access in cars, trucks, or forklifts. It transforms a consumer tablet into a robust mobile workstation.

Main features

• Compatible with Advantech AIM series tablets (AIM-75S, AIM-78S, AIM-75H, AIM-78H)
• Wide 9-32V DC power input with ignition sense for automatic startup/shutdown
• Two USB 3.0 Type-A ports for high-speed peripherals
• Gigabit Ethernet and RS-232 serial port for reliable wired connectivity
• Three SMA antenna pass-through connectors (GPS, WWAN, WLAN) for enhanced signal reception
• Key lock mechanism secures the tablet against theft
• VESA 75mm and RAM mount compatibility for flexible installation
• Rugged aluminum alloy and PC+ABS construction for durability
• MIL-STD-810G certified for shock and vibration resistance
• LED indicators for power and status at a glance

Specifications

• Operating temperature: -20°C to 60°C (-4°F to 140°F)
• Storage temperature: -30°C to 70°C (-22°F to 158°F)
• Certifications: E-Mark, CE, FCC
• Material: Aluminum alloy, PC+ABS
• Colour: Black

Tips

For optimal performance, mount the docking station in a location that allows easy tablet insertion and removal while driving. Use the ignition sense feature to conserve vehicle battery when the engine is off. Ensure all antenna cables are properly routed to avoid interference.
