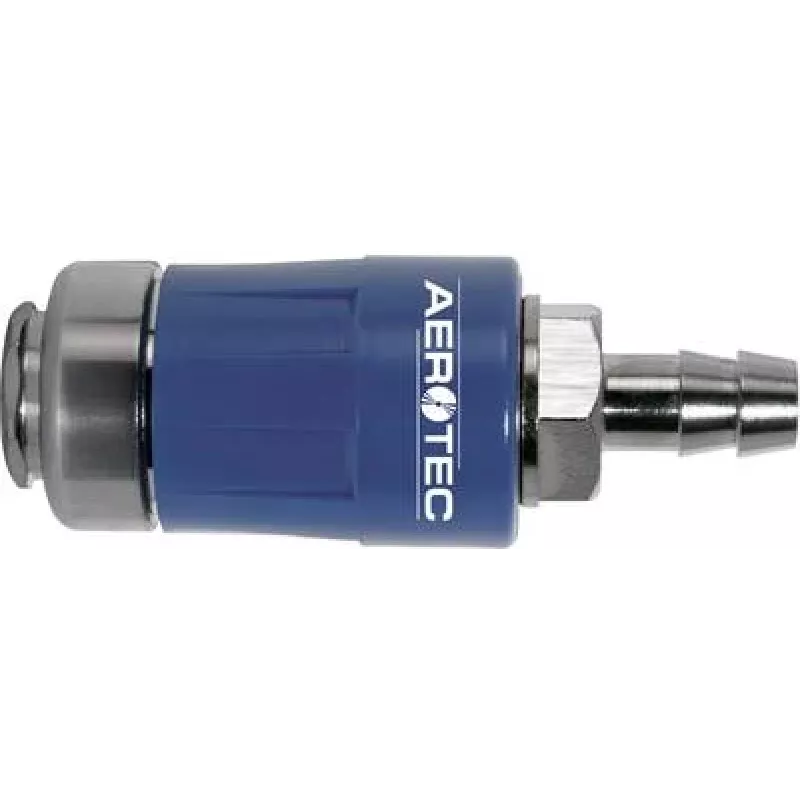

Aerotec acoplamiento de seguridad G 1/4" rosca hembra NW 7.2 2005309

Compressed air couplings that disconnect under pressure can whip dangerously, risking injury and equipment damage. This Aerotec safety coupling vents the air before disconnection, preventing hose whip and making one-hand operation safe and controlled.

Who is it for

Workshop and industrial users who connect and disconnect pneumatic tools frequently and need a coupling that protects both operator and equipment.

Main features

• Safety venting before disconnection prevents hose whip
• One-hand operation for quick tool changes
• Nickel-plated steel body with NBR seal
• G 1/4" internal thread, NW 7.2 nominal width
• Max. operating pressure 12 bar

Specifications

• Nominal width: NW 7.2
• Connection thread: G 1/4" internal
• Coupling type: Safety coupling, single shut-off
• Material: Nickel-plated steel
• Seal material: NBR
• Max. operating pressure: 12 bar
• Temperature range: -20°C to +100°C
• Air throughput: 1100 L/min at 6 bar (0.5 bar pressure drop)
• Standard: Europrofil
• Compatibility: NW 7.2 plugs

Tips

Pair with Aerotec NW 7.2 plugs for a secure, leak-free connection. Regularly inspect the seal and replace if worn to maintain safety and performance.
