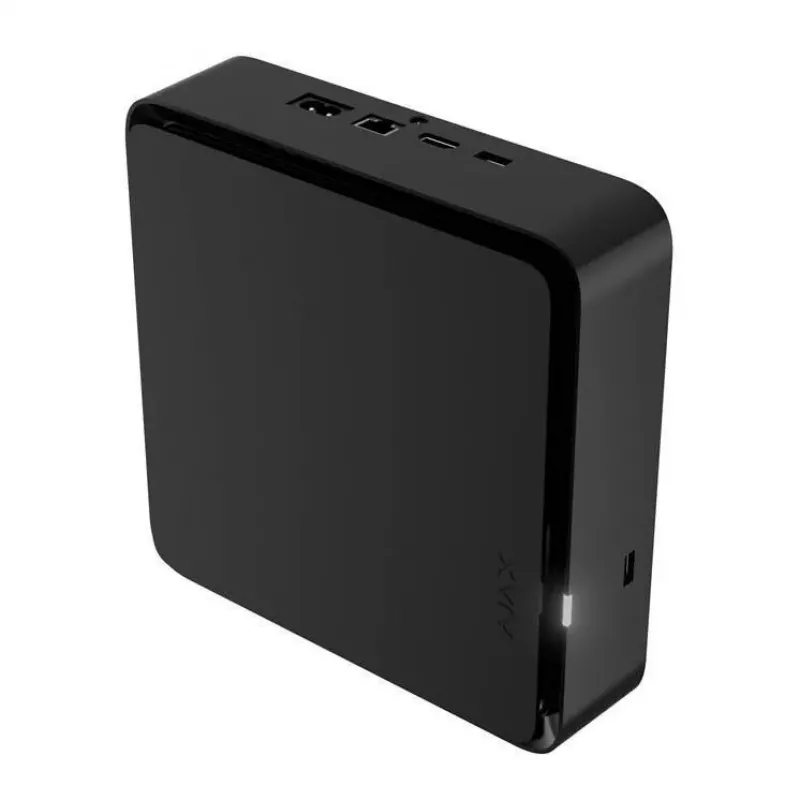

AJAX NET VIDEO RECORDER 8CH/HAC BLACK 134499

The AJAX NET VIDEO RECORDER 8CH/HAC BLACK (model 134499) is a professional 8-channel hybrid video recorder supporting HDCVI, AHD, TVI, CVBS, and IP cameras. With 8 BNC inputs and 2 additional IP channels (up to 6MP), it offers flexible surveillance solutions for small to medium-sized installations. Featuring H.265+ compression, WizSense smart analytics, and a compact 1U design, this NVR ensures efficient storage and intelligent monitoring.

Advantages

Hybrid compatibility with multiple camera technologies; H.265+ compression reduces bandwidth and storage; WizSense AI for perimeter protection and SMD Plus; 1 SATA port supporting up to 6TB; DMSS mobile app support for remote access.

Suitable for

• Retail stores
• Office buildings
• Warehouses
• Residential properties

Key specifications

• Video Input: 8 BNC (HDCVI/AHD/TVI/CVBS) + 2 IP (up to 6MP)
• Video Compression: H.265+/H.265/H.264+/H.264
• Max Recording Resolution: 1080N (1080x960) @ 25/30fps per channel
• Video Output: 1 HDMI, 1 VGA
• Audio: 1 RCA In / 1 RCA Out (two-way talk)
• Storage: 1 SATA port, up to 6TB
• Network: 1 RJ-45 (10/100Mbps)
• USB: 2 x USB 2.0
• Smart Features: WizSense (SMD Plus, Perimeter Protection)
• Power Supply: DC12V/1.5A
• Operating System: Embedded Linux
• Playback: 8 channels
• Color: Black
• Form Factor: Compact 1U

Recommendations

For optimal performance, use with AJAX HDCVI or IP cameras. Ensure hard drive is installed before operation. Compatible with DMSS app for mobile monitoring.
