Akasa Ashton T carcasa SBC para ASUS Tinker Board 3N con puertos duales Single LAN, sin ventilador, aluminio negro

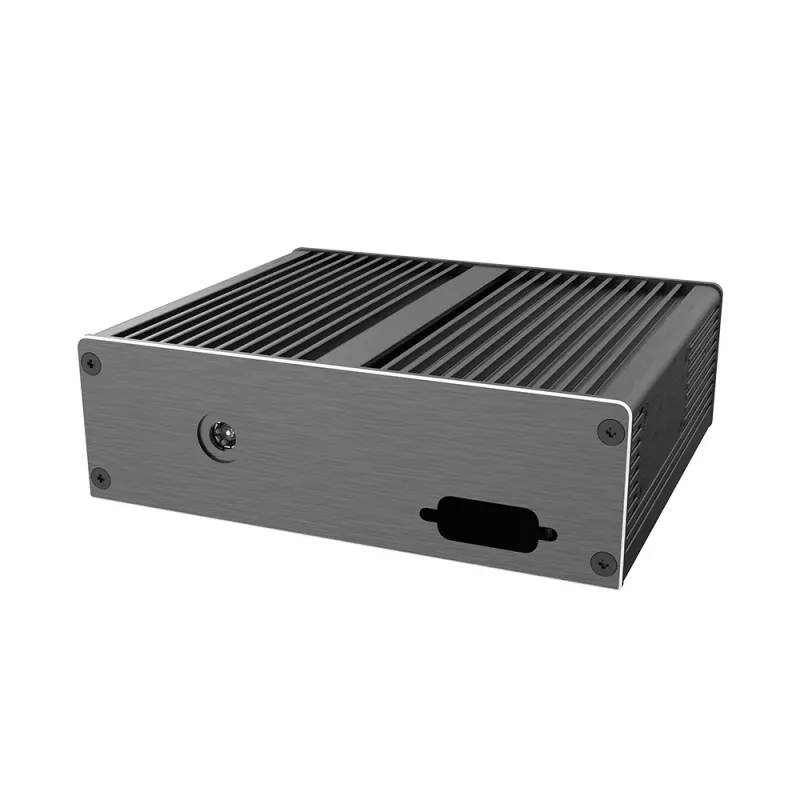

The Akasa Ashton T is a premium fanless case designed specifically for the ASUS Tinker Board 3N single-board computer. Crafted from high-quality aluminum, this case provides excellent passive cooling while maintaining a sleek, compact profile. It features cutouts for two single LAN ports, dual USB 3.2 Gen 1 Type-A, dual USB 2.0 Type-A, USB-C, HDMI, audio jack, DC-in, and SMA antenna openings. The case supports VESA mounting (75x75mm, 100x100mm) and includes a Kensington lock slot for security. Ideal for industrial, embedded, or home server applications where silent operation and reliability are paramount.

Advantages

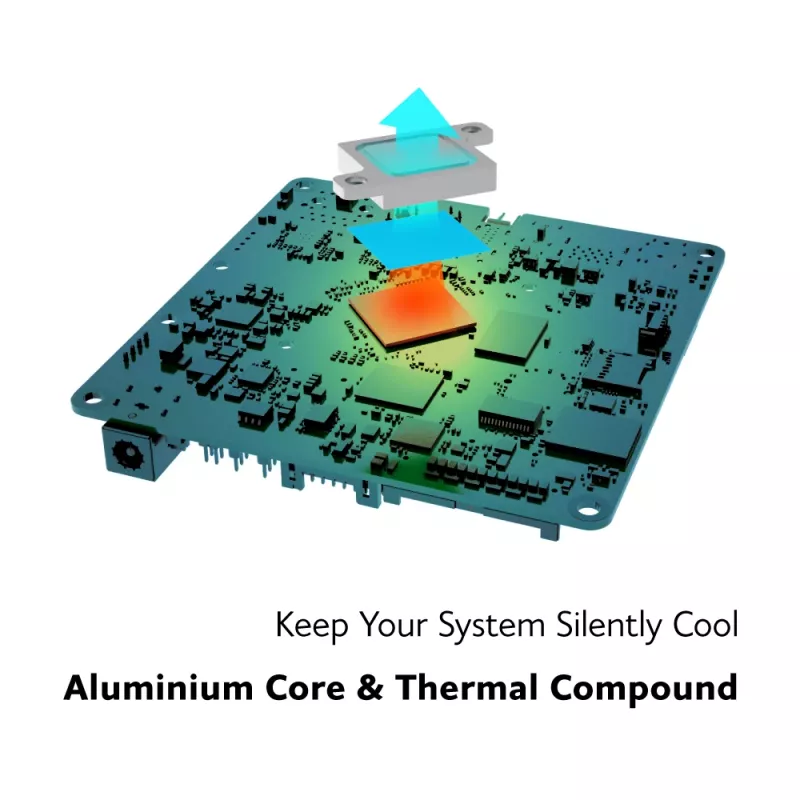

Fanless design ensures silent operation and zero maintenance. The aluminum body acts as a heatsink, efficiently dissipating heat from the Tinker Board 3N. Dual LAN ports make it perfect for networking applications like routers or firewalls. VESA mountable for easy integration into displays or kiosks.

Suitable for

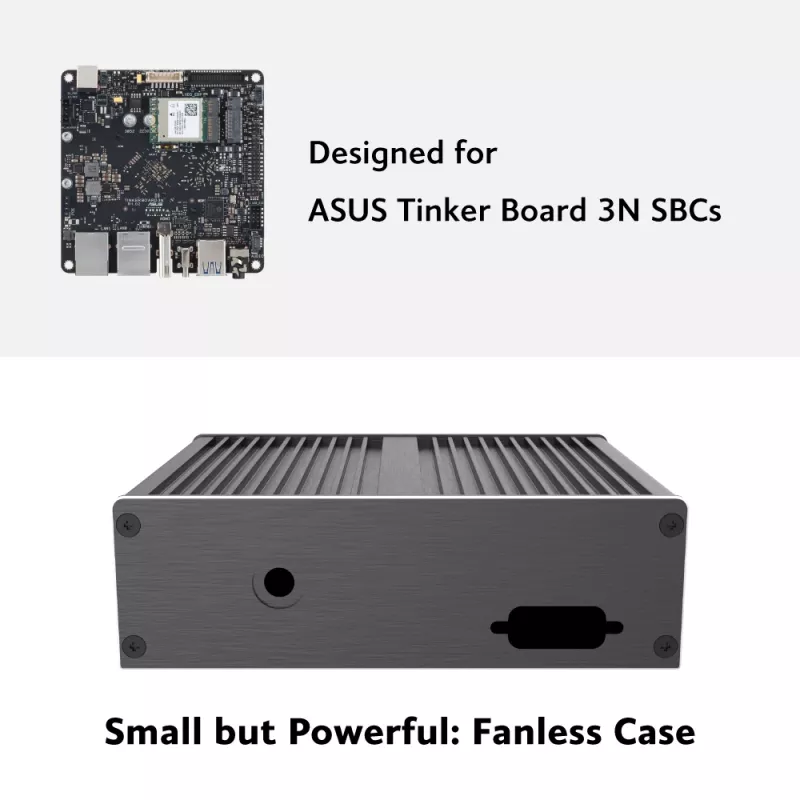

• ASUS Tinker Board 3N single-board computers
• Network appliances requiring dual Ethernet
• Digital signage and kiosks
• Industrial automation and embedded systems
• Home servers and media centers

Key specifications

• Brand: Akasa
• Model: Ashton T
• MPN: A-RA15-M2B
• EAN: 4710679553337
• Product colour: Black
• Material: Aluminum
• Form factor: Single Board Computer (SBC) Case
• Supported motherboard form factors: Proprietary (ASUS Tinker Board 3N)
• Cooling method: Fanless (Passive Cooling)
• LAN port cutouts: 2x Single LAN
• USB port cutouts: 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A, 1x USB-C
• Video output cutouts: 1x HDMI
• Audio port cutouts: 1x Audio Jack
• Power input cutouts: 1x DC-in Jack, 1x USB-C (Power)
• Storage support: M.2 2280 SSD (via Tinker Board 3N)
• Antenna openings: 2x SMA
• Mounting options: VESA 75x75mm, 100x100mm
• Security features: Kensington lock slot
• Included accessories: Thermal kit, screws, VESA mounting bracket
• Additional cutouts: MicroSD Card Slot, GPIO, MIPI CSI, MIPI DSI, RTC Battery Header

Recommendations

For optimal performance, pair with an ASUS Tinker Board 3N and a compatible M.2 SSD. Ensure adequate airflow around the case for best passive cooling. The VESA mount allows easy attachment to monitors or walls.
