Soporte para ventilador Akasa AK-MX304-08BK

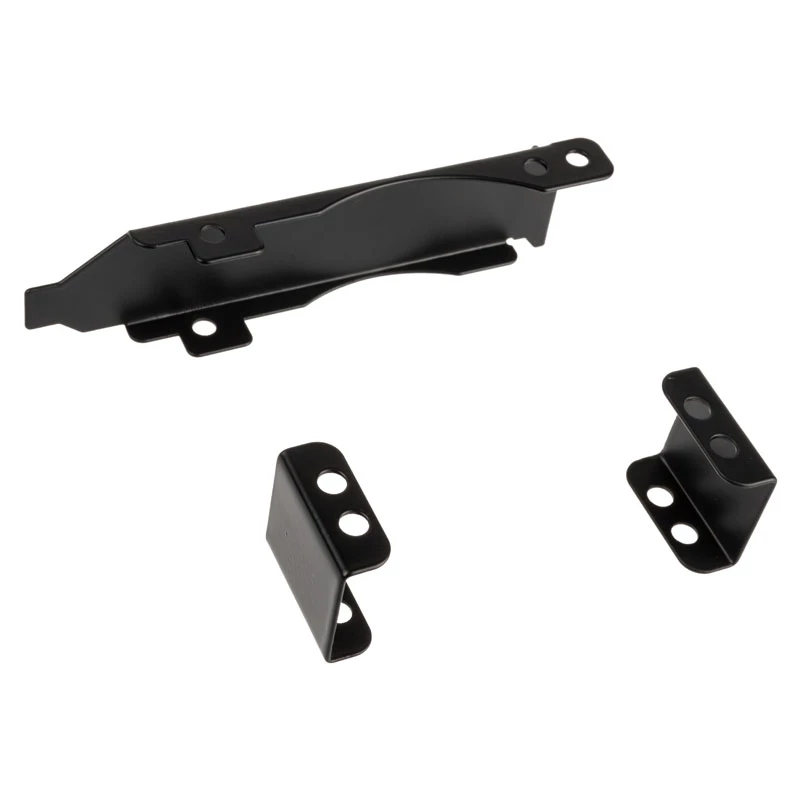

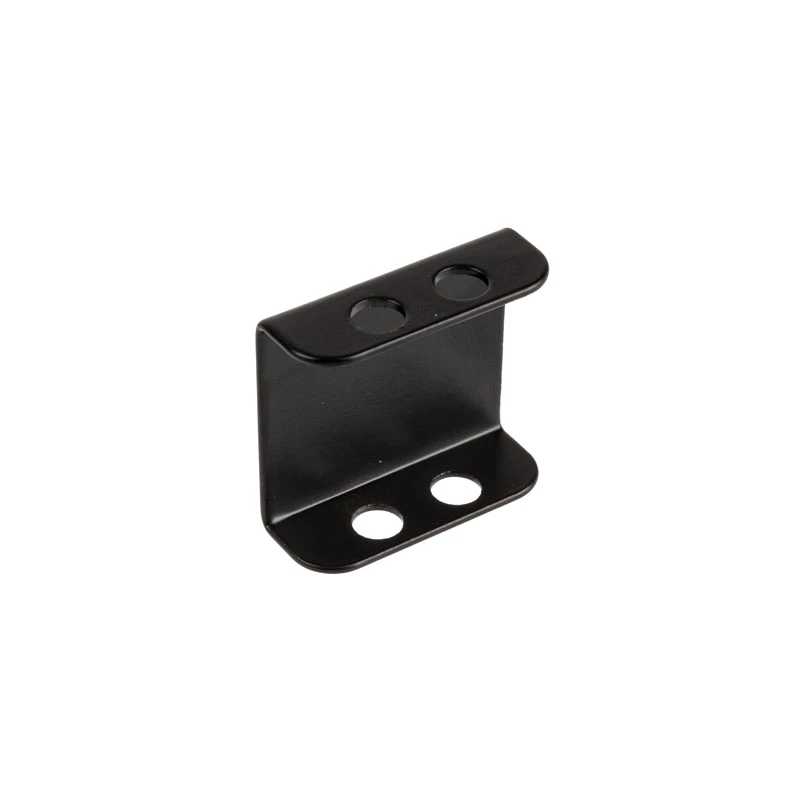

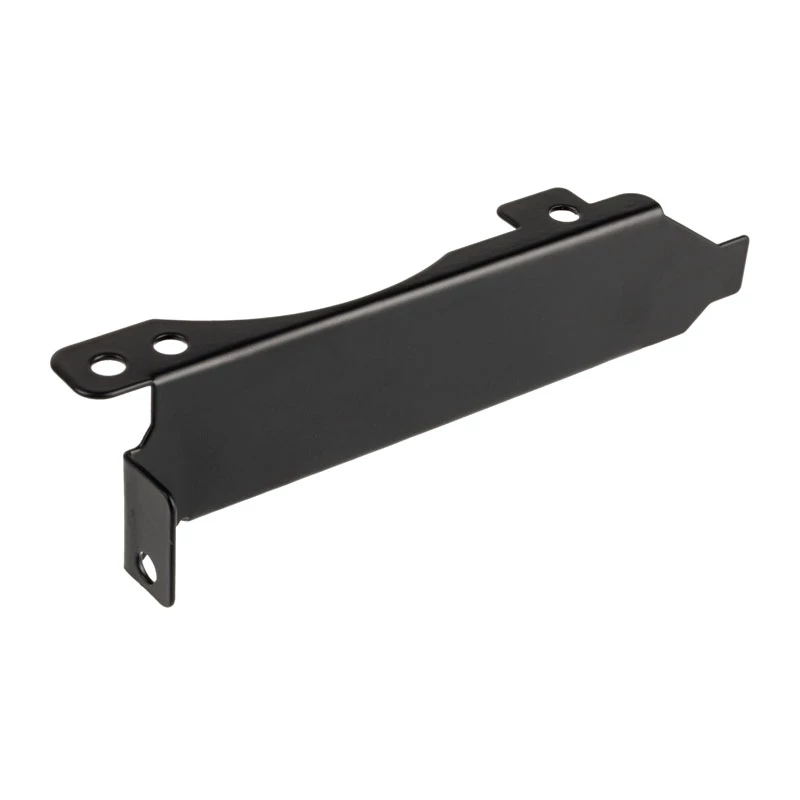

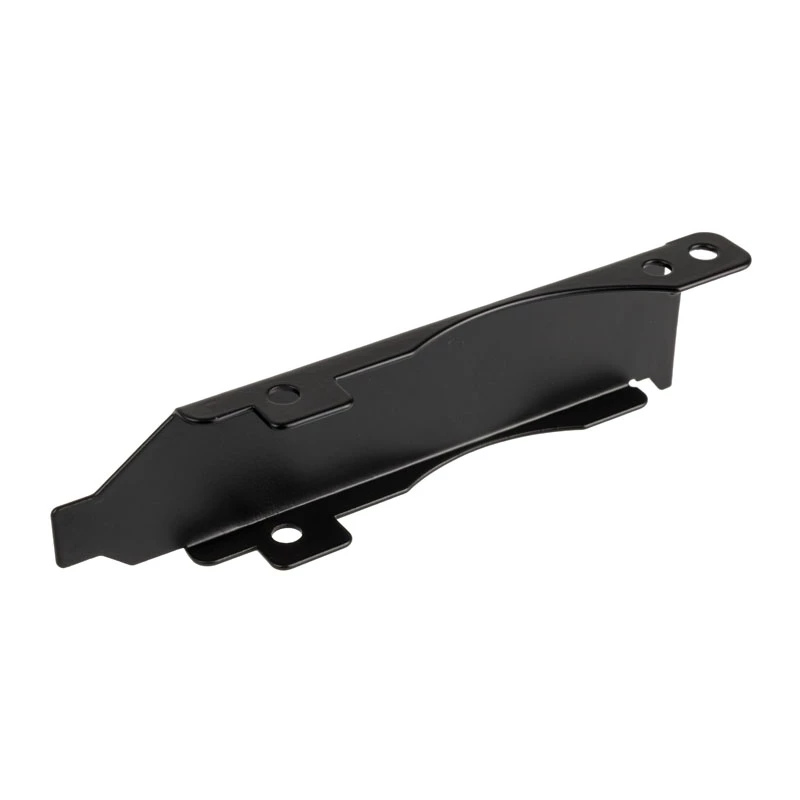

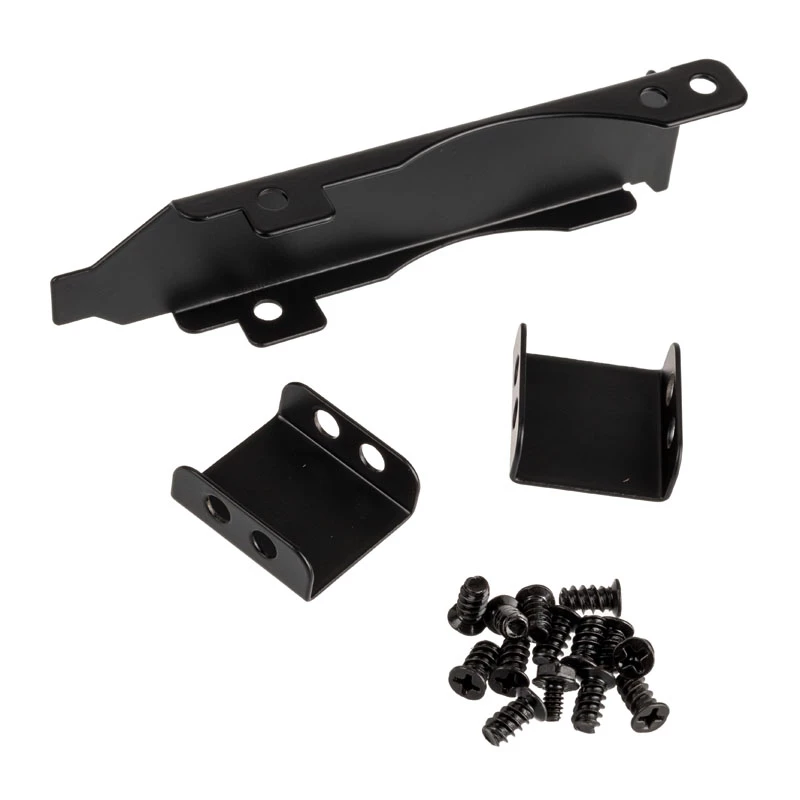

The Akasa AK-MX304-08BK fan holder is a compact metal adapter that mounts one or two 80 mm or 92 mm cooling fans to a PCI bracket beside a graphics card. It increases airflow around the GPU and inside the case to improve heat dissipation and help maintain system stability. Constructed from durable iron with a black varnish finish, the holder is intended for use in PC builds and rack chassis where additional targeted cooling is needed.

Advantages

The holder supports single or dual 80/92 mm fans on an available PCI slot, providing targeted airflow to the GPU area. Its metal construction with a black varnish surface offers corrosion resistance and long-term durability. The adapter is straightforward to install and compatible with standard PCI brackets, making it a practical accessory for DIY builders and system maintainers.

Suitable for

• Adding extra cooling to graphics cards (GPU)
• Improving case airflow in small or crowded builds
• Rack chassis installations requiring targeted fan placement
• DIY PC cooling modifications and upgrades

Key specifications

• Model: Akasa AK-MX304-08BK
• Supported fan sizes: 80 mm or 92 mm (single or dual)
• Material: iron with black varnish finish
• Dimensions (approx.): width 31.5 mm, depth 125.8 mm, height 25.8 mm
• Mounting: PCI bracket adapter
• Pack quantity: 1
• EAN: 4710679550459

How to use

Install the fan(s) onto the holder using the appropriate screws for 80 mm or 92 mm fans. Secure the holder into an available PCI slot using the PCI bracket as you would with a standard expansion bracket. Orient the fans to blow toward or away from the GPU as required to achieve the desired airflow direction. Recheck all fastenings and cable connections before powering on the system.

Recommendations

For optimal results, use low-noise fans with adequate static pressure and ensure airflow direction complements the case ventilation. Verify there is sufficient clearance beside the GPU and that fan power cables reach available headers or a power source.
