Akyga AK-EV-20 cargador para patinete eléctrico para baterías de litio de 48 V (13S), 54,6 V, 2 A, 109 W, conector macho LP16, 1,2 m

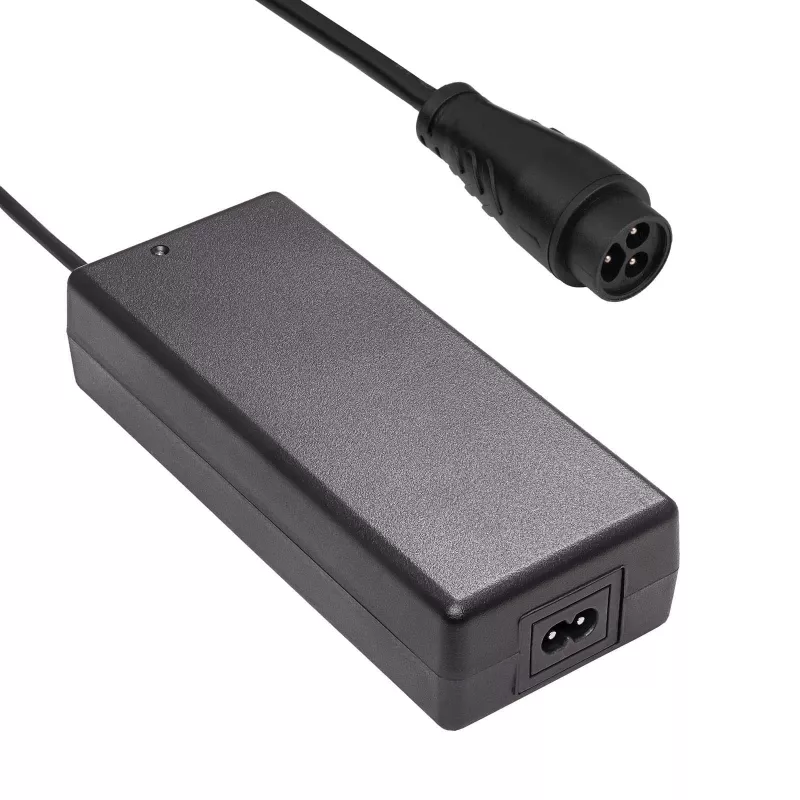

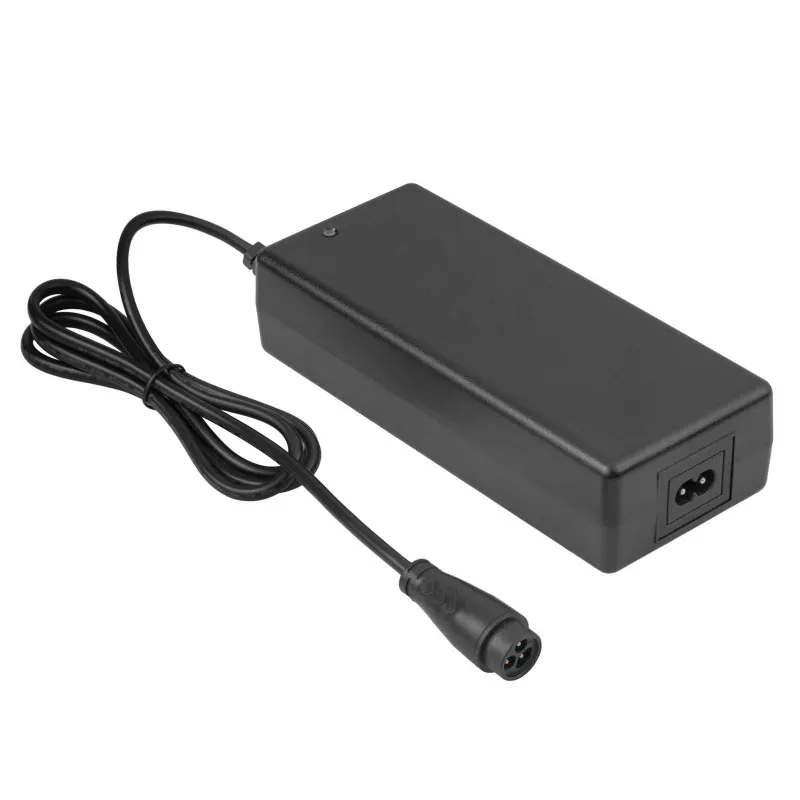

The AKYGA AK-EV-20 is a high-quality electric vehicle charger designed for 48V Li-ion battery systems (13S). With an output of 54.6V DC and 2A (109W), it provides efficient and reliable charging for your electric vehicle or battery pack. The charger features a LP16 male connector and a 1.2-meter cable, making it suitable for various applications.

Advantages

This charger offers multiple protection features including over-voltage, over-current, short-circuit, and over-temperature protection, ensuring safe operation. The LED indicator shows red during charging and green when full or in standby, providing clear status at a glance. With an efficiency of over 80%, it minimizes energy loss.

Suitable for

• Electric vehicles with 48V Li-ion battery systems (13S)
• E-bikes, e-scooters, and other electric mobility devices
• Battery charging stations and maintenance

Key specifications

• Input: 100-240V AC, 50/60 Hz
• Output: 54.6V DC, 2A, 109W

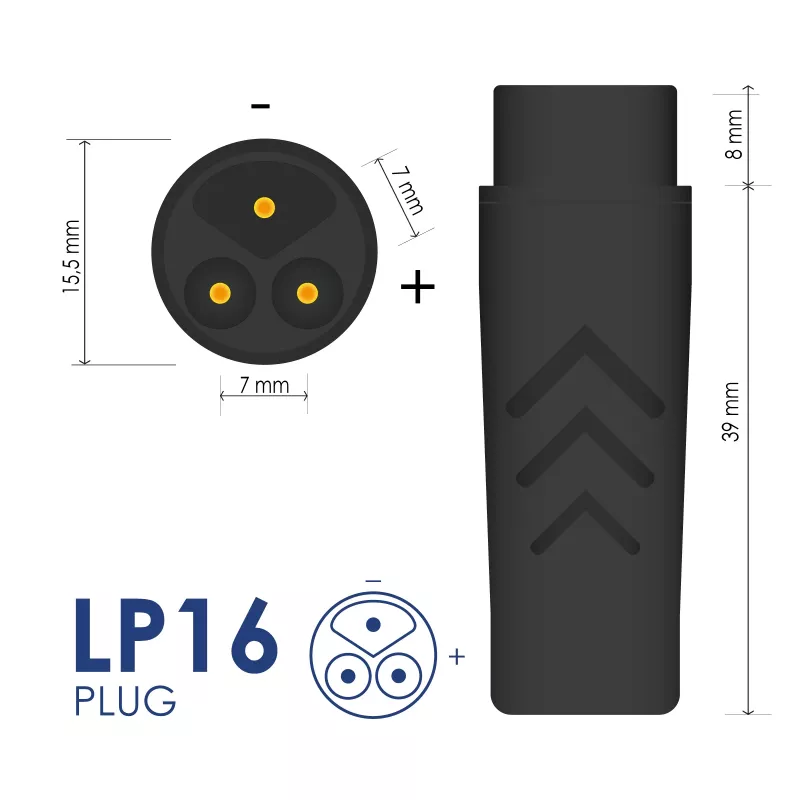

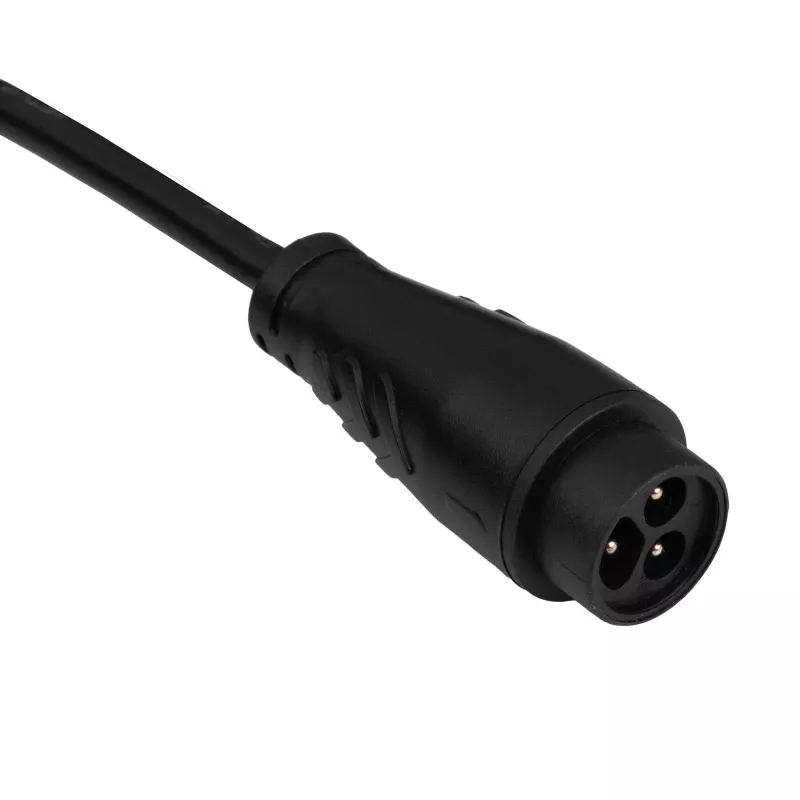

• Connector: LP16 Male
• Cable length: 1.2 m
• Housing material: ABS Plastic
• Color: Black
• Operating temperature: 0°C to 40°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use only with compatible 48V Li-ion battery systems. Ensure proper ventilation during charging. This charger is not suitable for lead-acid batteries.
