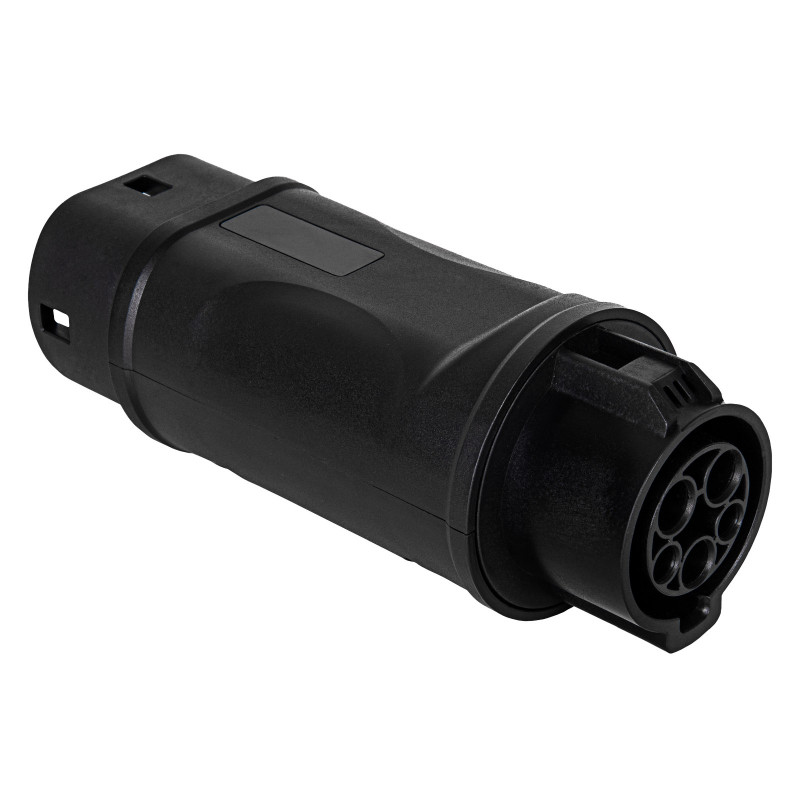

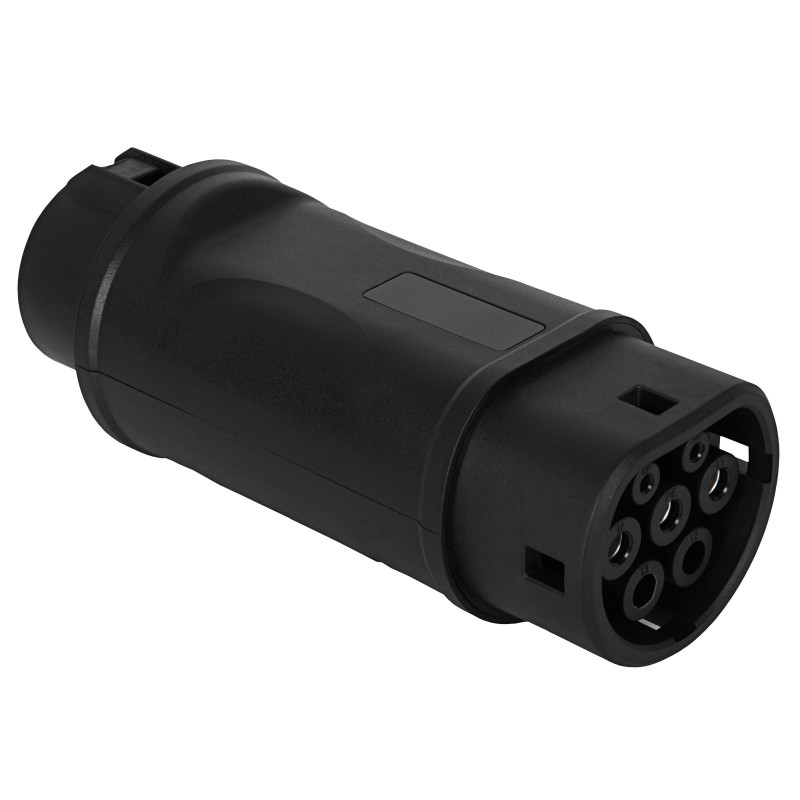

Akyga AK-SC-E09 adaptador de carga para vehículos eléctricos Type 1 (J1772) conector hembra a Type 2 (IEC 62196-2) conector macho, monofásico, 32 A, negro

The Akyga AK-SC-E09 adapter is a handy converter that allows switching from a Type1 to a Type2 connector. It enables connecting an electric car with a Type2 socket to an older EVSE charger with a Type1 plug.

Key features

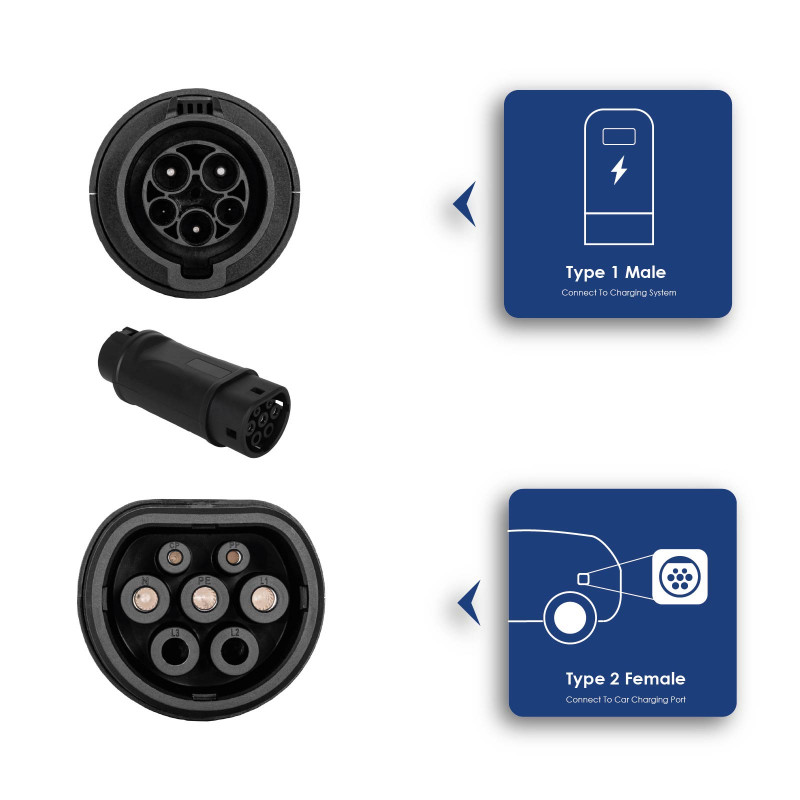

• Converts Type1 to Type2 connector
• Maximum current: 32 A
• Maximum power: 8 kW
• IP rating: IP55
• Flame resistance: UL94V-0
• Silver-plated plugs
• TPE material
• Black color

Specifications

• Brand: Akyga
• MPN: AK-SC-E09
• Supply voltage: 250 V
• Number of phases: 1 phase
• Connector resistance: 0.5 mΩ
• Temperature range: -30 to +55 °C

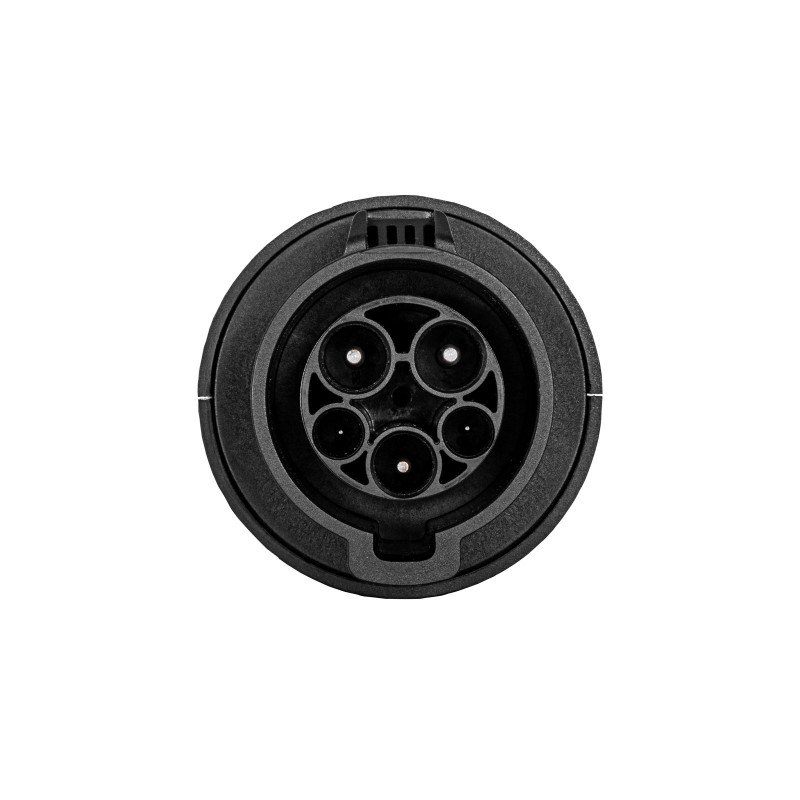

• Connector 1: Type 1 (J1772), female

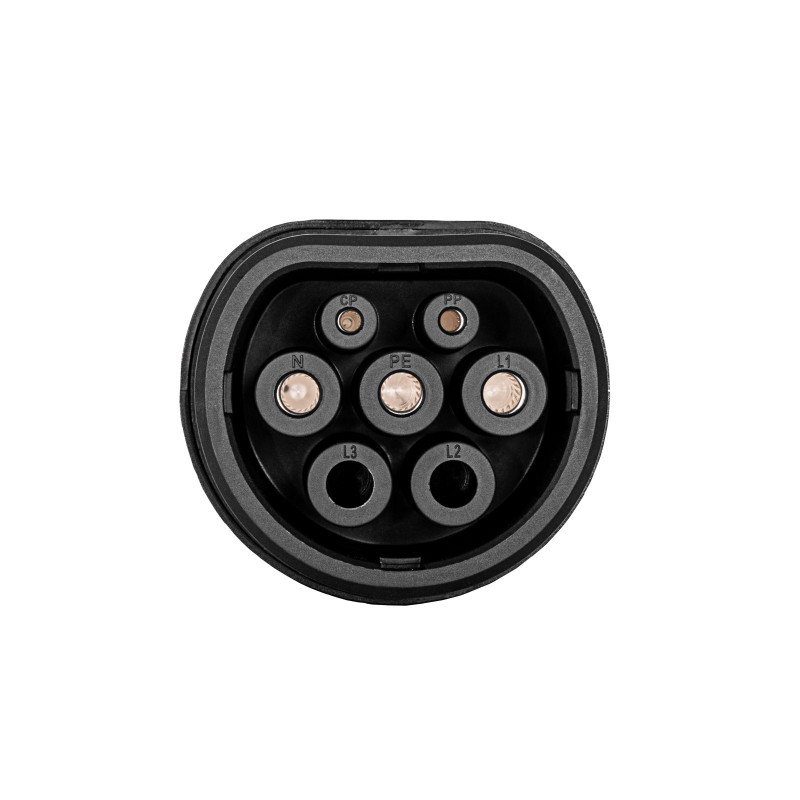

• Connector 2: Type 2 (IEC 62196-2), male
• Product size (L x W x H): 55 x 60 x 165 mm
• Net weight: 356 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720137838
