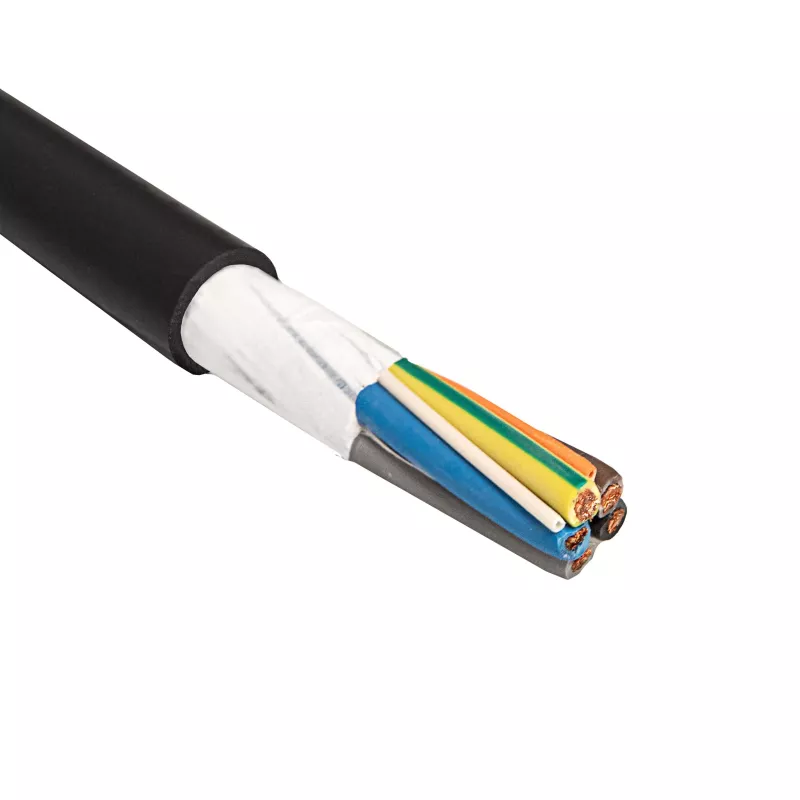

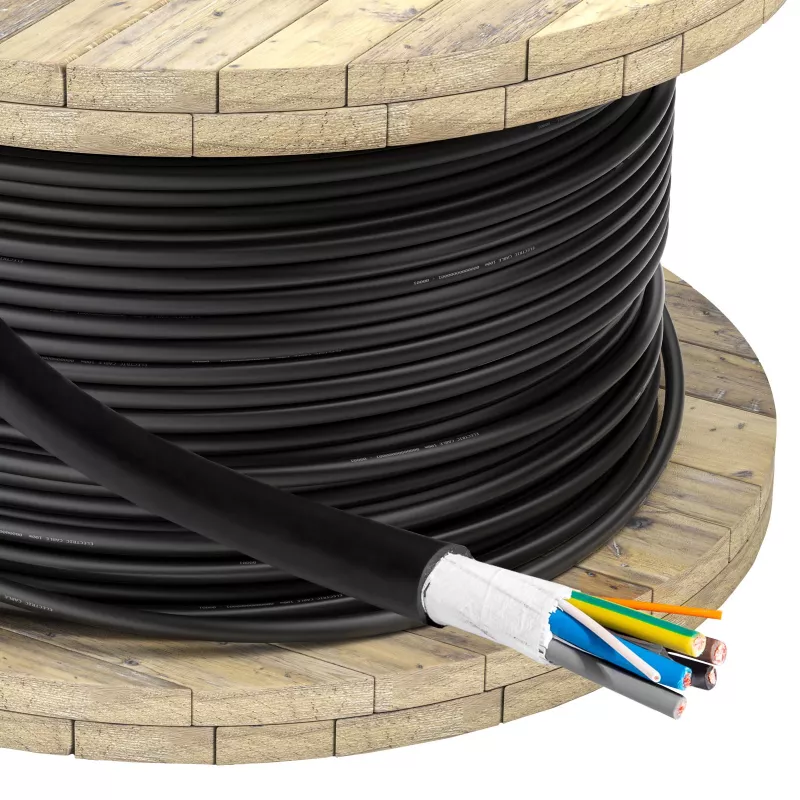

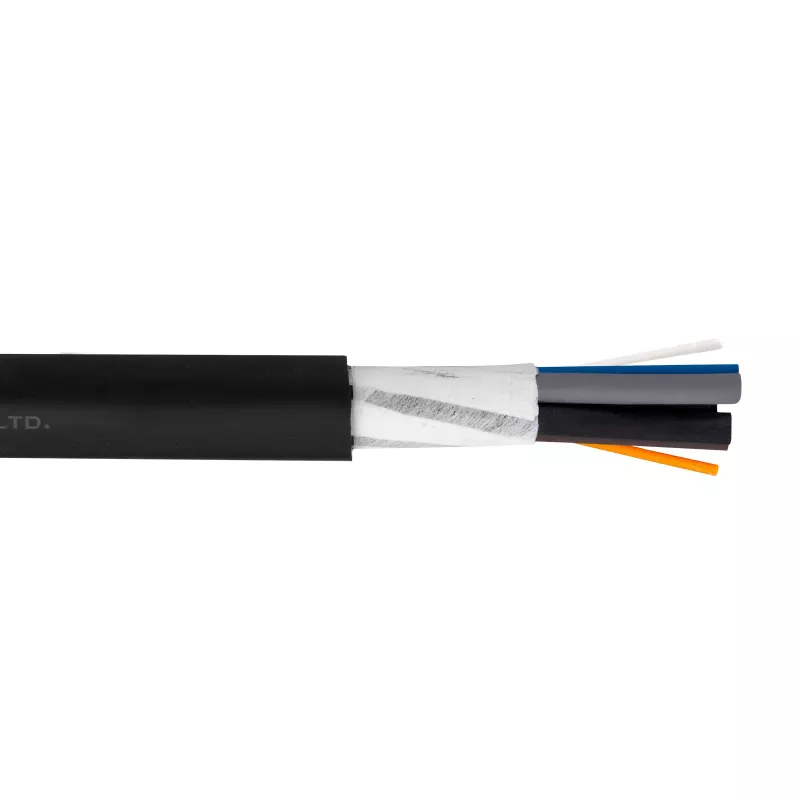

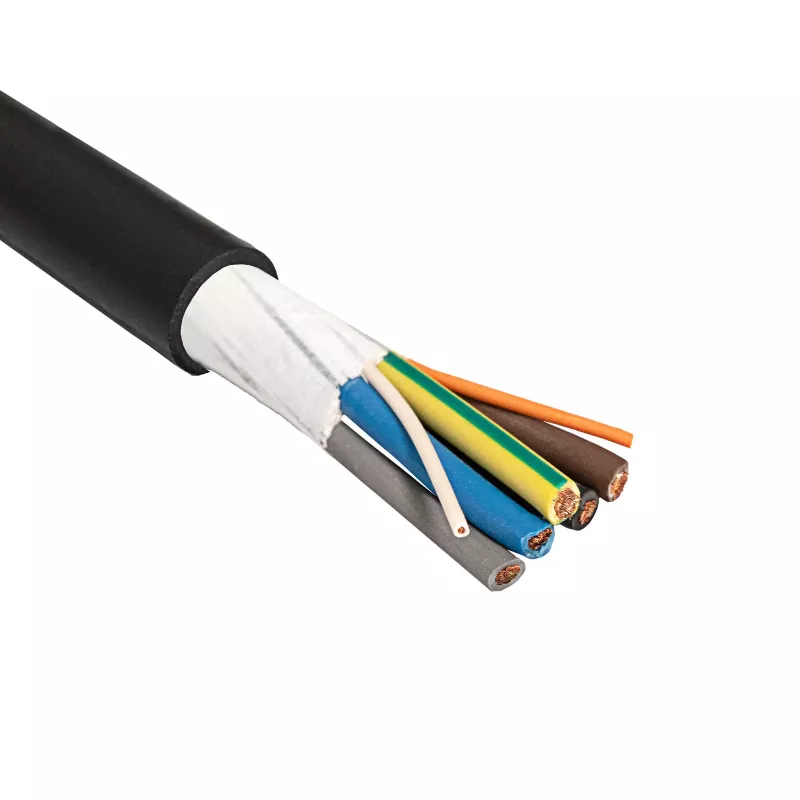

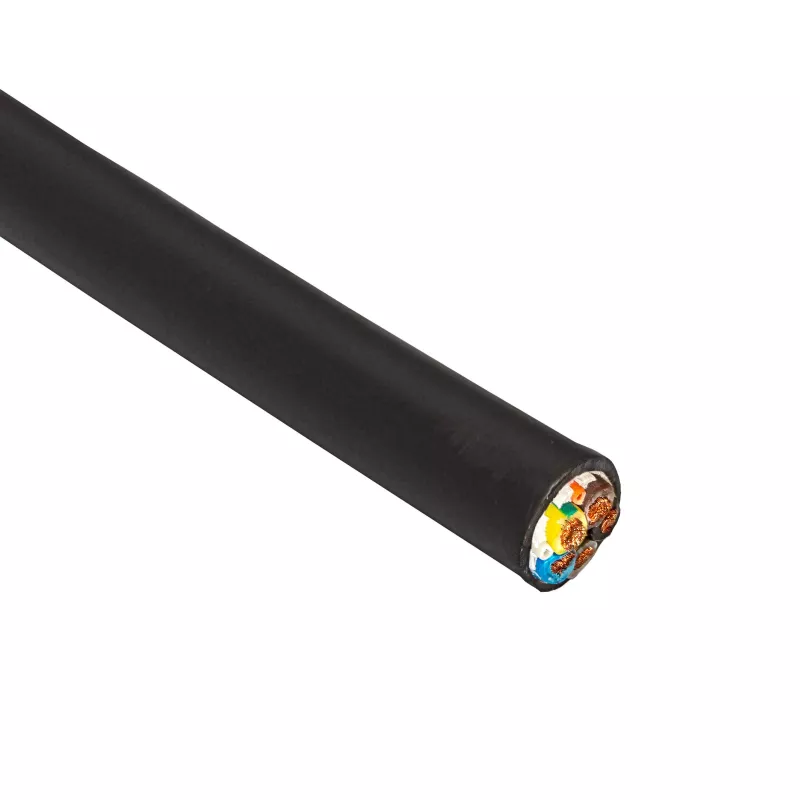

Akyga AK-SC-E12 Cable de carga EV 5 x 6 mm² + 2 x 0,75 mm², trifásico, 32 A, 450/750 V, por metros

The Akyga AK-SC-E12 is an EV charging cable designed for charging electric cars and motorbikes. It is made of copper conductors with a TPE jacket and is available per metre, allowing the length to be adapted as needed. The cable has 7 conductors, including 2 communication conductors for communication between the vehicle and the charging station.

Key features

• Designed for charging electric cars and motorbikes
• Copper conductors with TPE jacket
• 7 conductors, including 2 communication conductors
• Available per metre
• Flame resistance: UL94V-0

Specifications

• Brand: Akyga
• MPN: AK-SC-E12
• Conductor cross section: 5 x 6 mm² + 2 x 0.75 mm²
• Maximum operating current per phase: 32 A
• Supply voltage: AC 450 / 750 V
• Number of phases: 3 phase
• Operating temperature: -40 - 125 °C
• Cable length: 1 m
• Cable colour: Black
• Conductor material: Copper
• Jacket material: TPE
