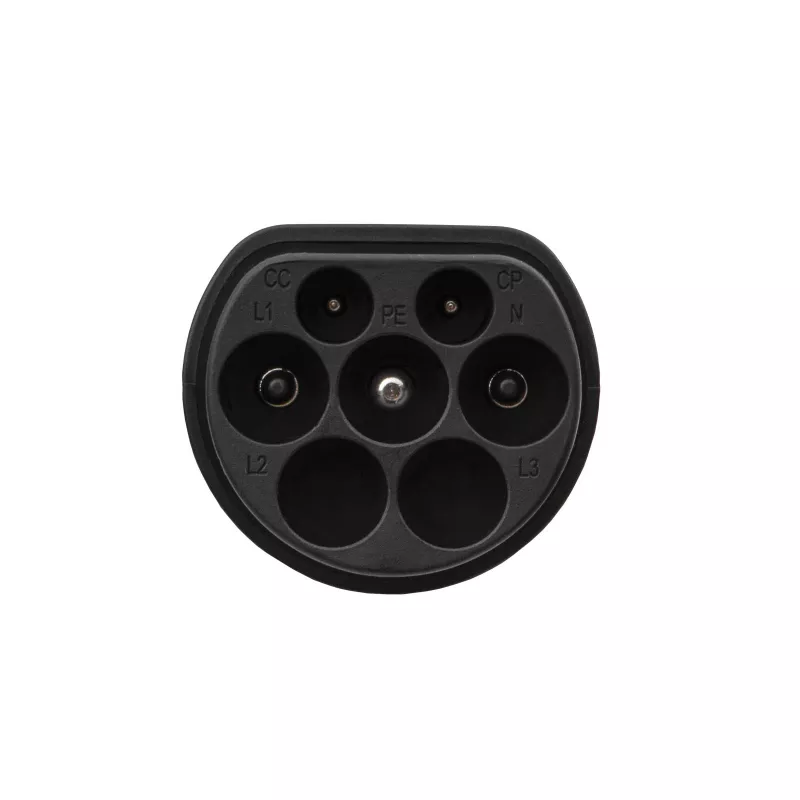

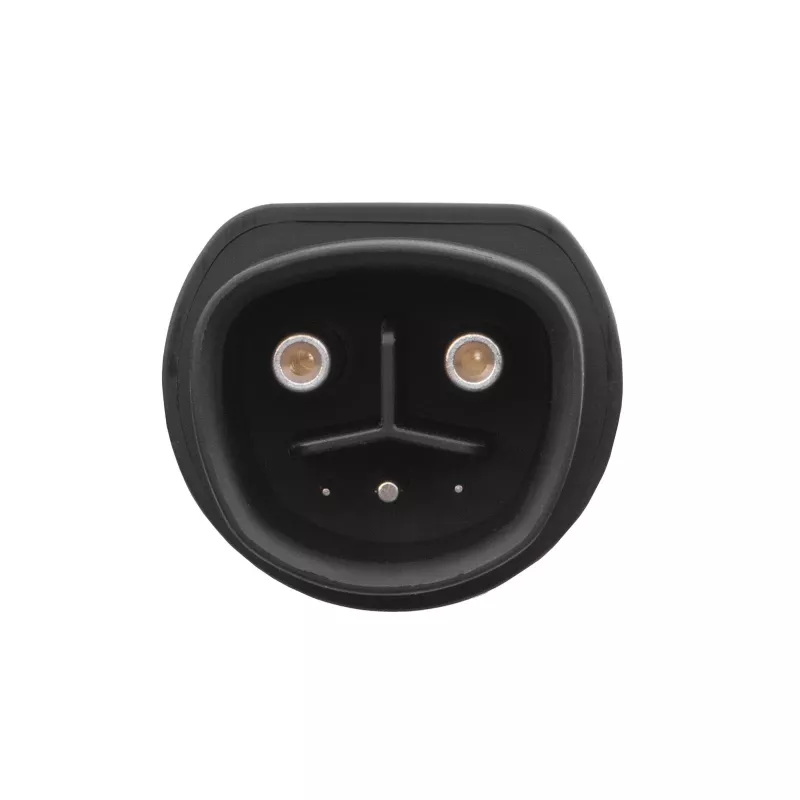

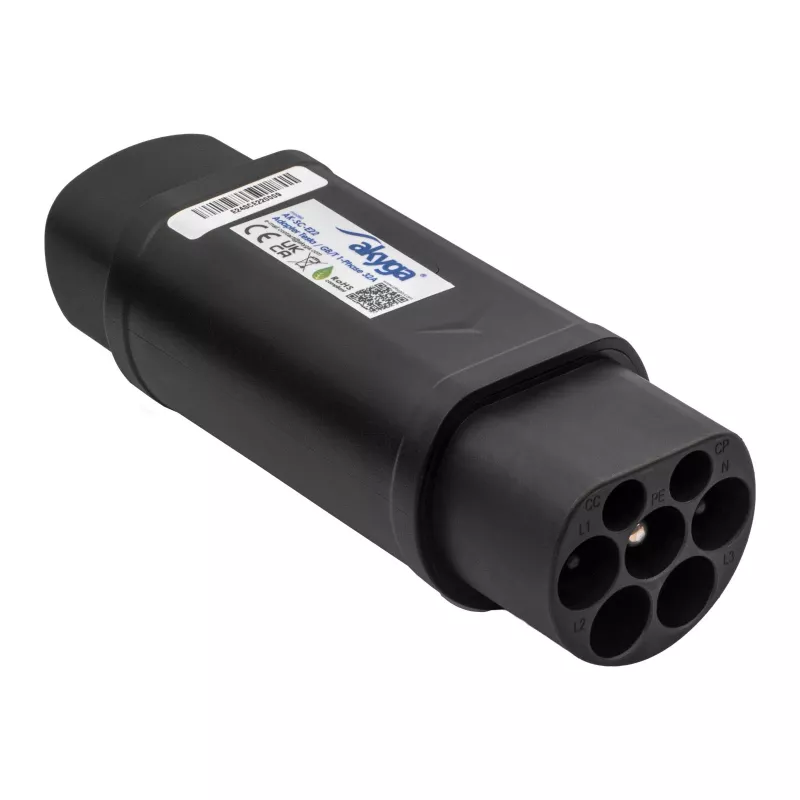

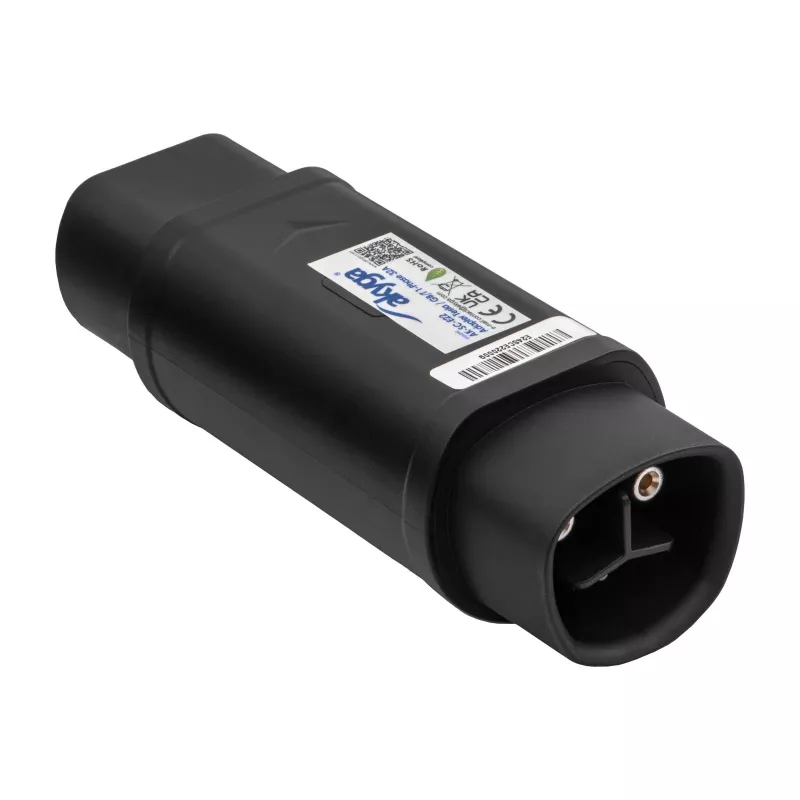

Akyga AK-SC-E22 Adaptador de carga para vehículos eléctricos de Tesla a GB/T monofásico 32A

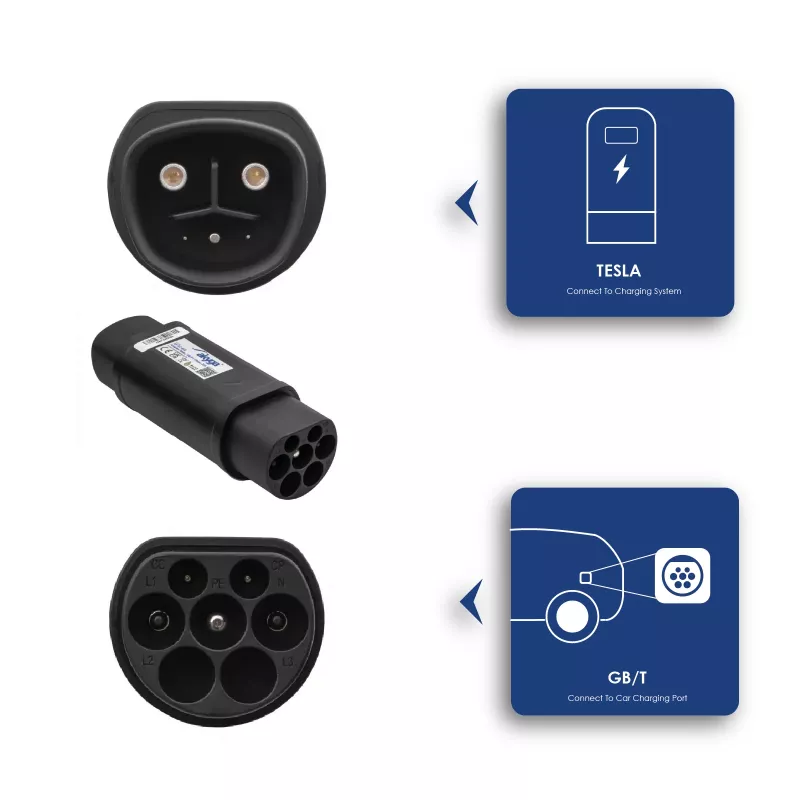

The Akyga AK-SC-E22 is an EV charging adapter designed to connect a Tesla charger with a NACS connector to a Chinese electric car with a GB/T socket. It supports single-phase charging up to 32 A and is suitable for vehicles from brands such as BYD, NIO, XPeng, Zeekr and Geely.

Key features

• Enables charging of GB/T-equipped vehicles using Tesla/NACS chargers
• Single-phase charging up to 32 A
• Silver-plated contacts for conductivity
• Heat- and impact-resistant construction
• Flame resistance: UL94V-0
• IP rating: IP55

Specifications

• Brand: Akyga
• MPN: AK-SC-E22
• Product type: Electric Car Accessory
• Supply voltage: 110-250 V
• Number of phases: 1 phase
• Maximum current: 32 A
• Maximum power: 8 kW
• Connector resistance: 0.5 mΩ
• Plug 1: Tesla Female Connector (NACS)
• Plug 2: GB/T (20234.2-2015) Male Connector
• Plated plugs: Silver
• Material: TPE
• Product colour: Black
• Operating temperature: -30 to +50 °C
• Product dimensions (L x W x H): 160 x 59 x 53 mm
• Net weight: 289 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5906708750627
