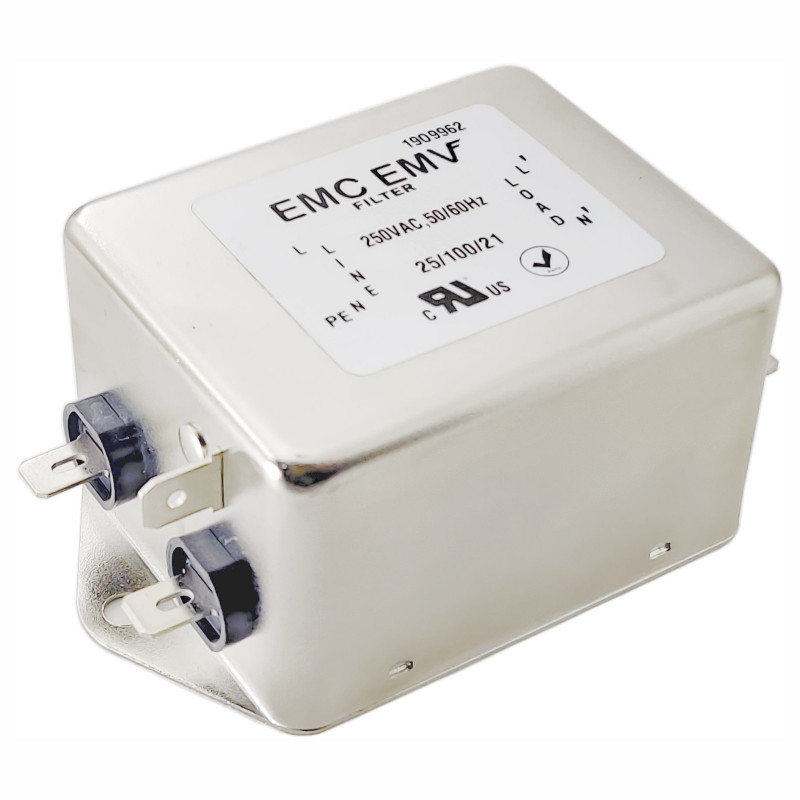

Akyga EN2070-10-F filtro de red EMC monofásico 10 A, 120–250 V AC, 50/60 Hz, conexiones de 6,3 mm

The Akyga EN2070-10-F is a single phase EMI filter designed to protect electronic equipment from electromagnetic interference at operating currents up to 10 A. It is suitable for automation systems, lighting installations and power systems where voltage stability affects operational reliability.

Key features

• EMI filter with anti-interference filtering
• Maximum working current: 10 A
• 6.3 mm connectors for installation
• Metal housing for durability and shielding
• Compact design

Specifications

• Brand: Akyga
• MPN: EN2070-10-F
• Product type: EMI Filter
• Filter type: Anti-interference
• Maximum working current: 10 A
• Leads: 6.3 mm connectors
• Leakage current: 0.43 mA @120 VAC 60 Hz, 0.74 mA @250 VAC 50 Hz
• Number of poles: 2
• Material: Metal
• Temperature range: -25°C to +100°C
• Product size (L x W x H): 155 x 57 x 45 mm
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5901720138811
