Alargador de corriente Bachmann 3x Schuko 902.402

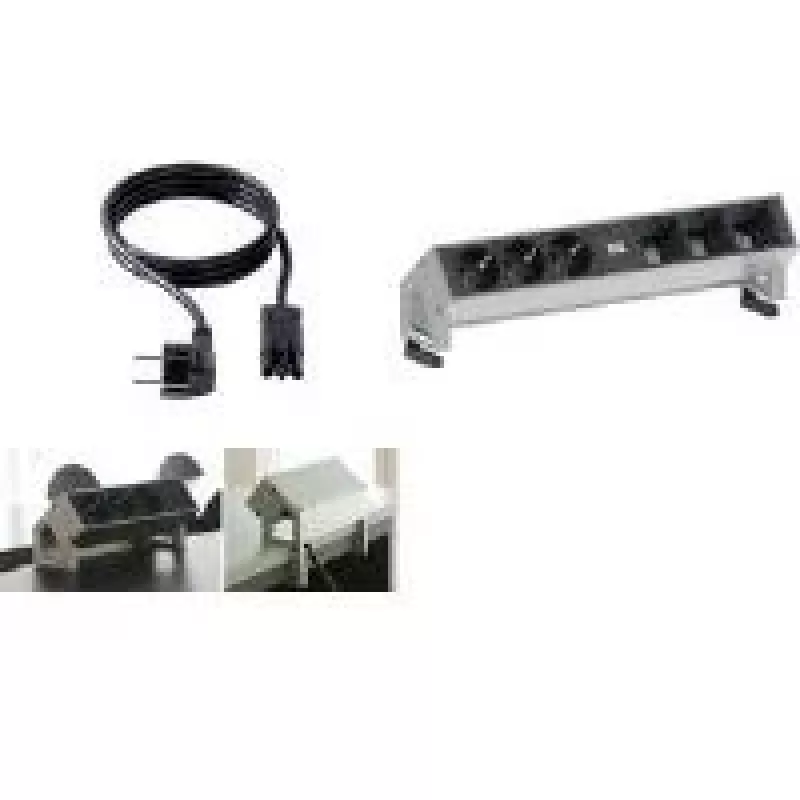

DESK 2 is a modular power strip designed for flexible use in offices, meeting rooms, home offices and desk-sharing environments. Constructed from aluminium with plastic components, the unit accepts standardized communication and power modules that can be screwed into place and replaced as needed. This model provides three Type F (Schuko) AC outlets set at a 35° orientation and a 0.2 m H05VV-F 3G 1.5 mm² power input with GST18 connector. The profile is supplied with aluminium retaining brackets for secure desk mounting and routing of cables behind screens. The design was recognised with the Red Dot Design Award 2011 and the iF Product Design Award 2012, and was nominated for the German Design Award 2012.

Advantages

The aluminium profile and modular module windows allow flexible configuration and straightforward replacement of connections. The 45° user-focused orientation and 35° socket angle facilitate convenient plug access, while covered wiring provides a neat cable route to the desk edge. The unit includes mounting brackets for secure fixation and uses standardised connectors to simplify upgrades or custom versions.

Suitable for

• Office workstations and meeting room tables
• Home offices and shared-desk environments
• Desks requiring built-in power access with Type F (Schuko) sockets
• Installations needing covered cable routing and secure mounting

Key specifications

• Brand: Bachmann
• Model / MPN: 902.402
• EAN: 4016514043422
• AC outlets: 3 × Type F (Schuko), earthing contact, child-proof
• Socket angle: set at 35° (user-oriented arrangement)
• Power input cable: 0.2 m H05VV-F 3G 1.5 mm² with GST18 connector
• Material: aluminium profile with plastic components
• Colour: black and stainless steel finish
• Length: approx. 324 mm
• Includes aluminium mounting brackets

How to use

Mount the DESK 2 profile to the desktop edge using the supplied aluminium retaining brackets. Screw the desired modules into the standardised module windows and connect the power input using the GST18 connector. Route cables behind the screen and along the desk edge as required. To change a module, disconnect power, unscrew the module from its window and replace it with the chosen module, then restore power.

Recommendations

Use DESK 2 on desks or tables with sufficient edge clearance to accommodate the mounting brackets and routing channel. Ensure the power input cable and GST18 connector are compatible with your building installation and that installation and any custom module configuration are performed according to local electrical regulations.
