Alargador de corriente Brennenstuhl 1167320100 10m exterior IP44

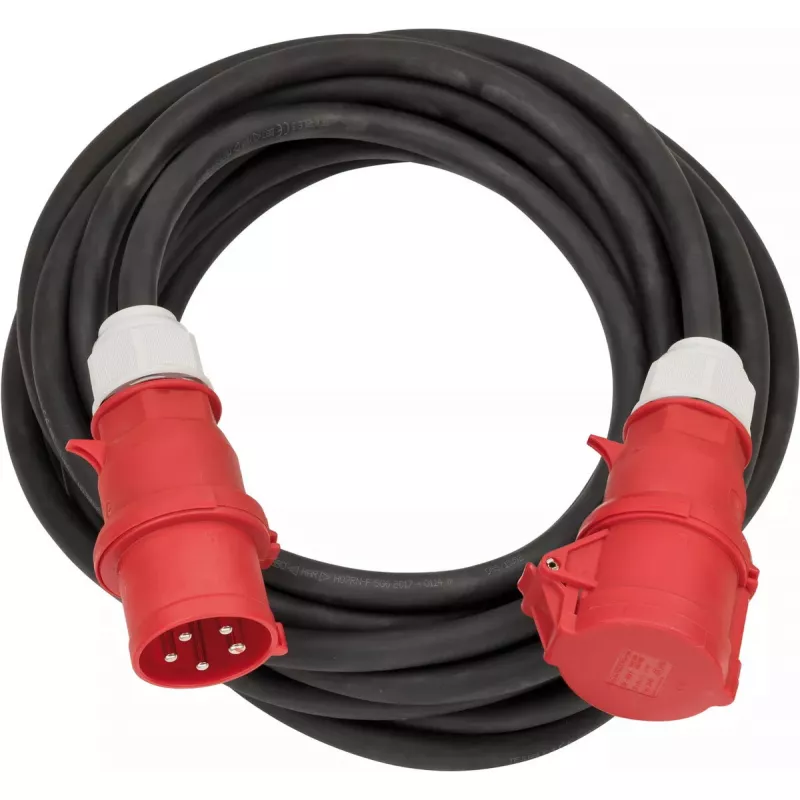

The Brennenstuhl 1167320100 is a 10 m CEE extension cable with IP44 protection, fitted with a 5‑pin CEE plug and coupling with sealing flap. The H07RN‑F 5G6.0 rubber‑neoprene jacket makes the cable suitable for demanding outdoor use, including construction sites, industrial environments and commercial areas, and provides resistance to oil and UV exposure while delivering 400 V / 32 A power distribution.

Advantages

The cable features IP44 protection for splash and particle resistance, a durable H07RN‑F 5G6.0 rubber‑neoprene sheath that is oil‑ and UV‑resistant, and a robust 5‑pole 400 V / 32 A CEE plug and coupling with a sealing flap for reliable outdoor connections. Its 10 m length provides extended reach for temporary power supply tasks.

Suitable for

• Temporary power distribution on construction sites
• Outdoor industrial equipment connections
• Power supply in commercial outdoor areas
• Use with 400 V / 32 A CEE devices

Key specifications

• Cable length: 10 m
• Cable type: H07RN‑F 5G6.0 (rubber‑neoprene)

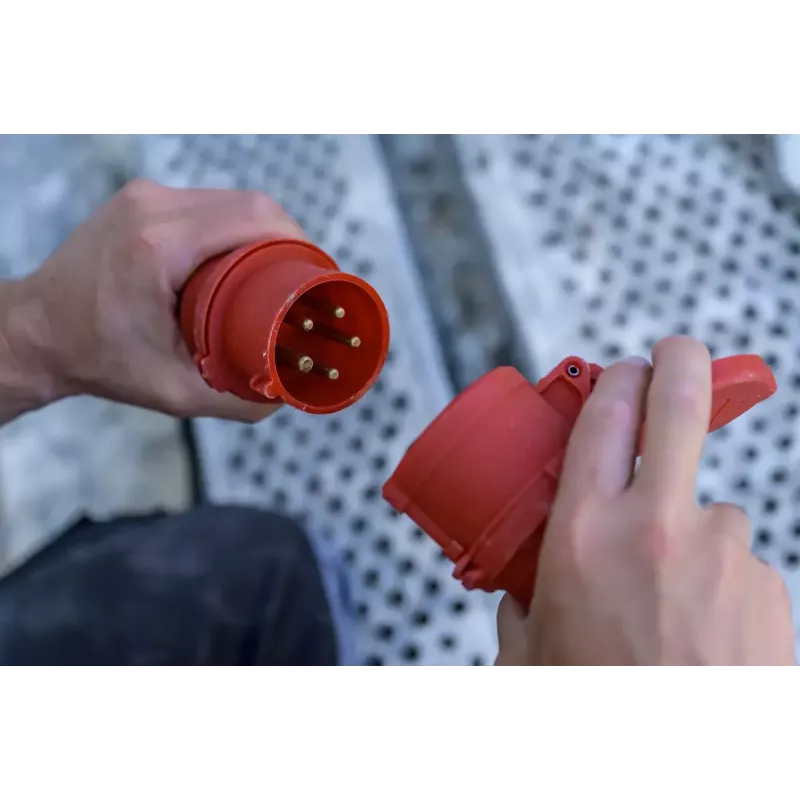

• Connector: 5‑pin CEE plug and coupling
• Rated voltage/current: 400 V / 32 A
• Protection class: IP44
• Resistances: oil‑resistant, UV‑resistant
• Colour: Black, Red
• Weight: 6.1 kg
• Brand / MPN / EAN: Brennenstuhl / 1167320100 / 4007123667819

How to use

Unroll the 10 m cable fully before use to avoid overheating. Ensure both plug and coupling are clean and undamaged, then insert the 5‑pin CEE plug into a matching 400 V / 32 A CEE socket until it locks. Close the coupling's sealing flap where provided to maintain IP44 protection. After use, disconnect power at the source before unplugging, wipe the connectors if contaminated, and store the cable coiled in a dry place out of direct sunlight.

Recommendations

The extension cable is intended for temporary outdoor power distribution and should be used only with compatible 400 V / 32 A CEE equipment. Do not use the cable if the sheath or connectors are damaged. Regularly inspect for oil or mechanical damage and replace if defects are found.
