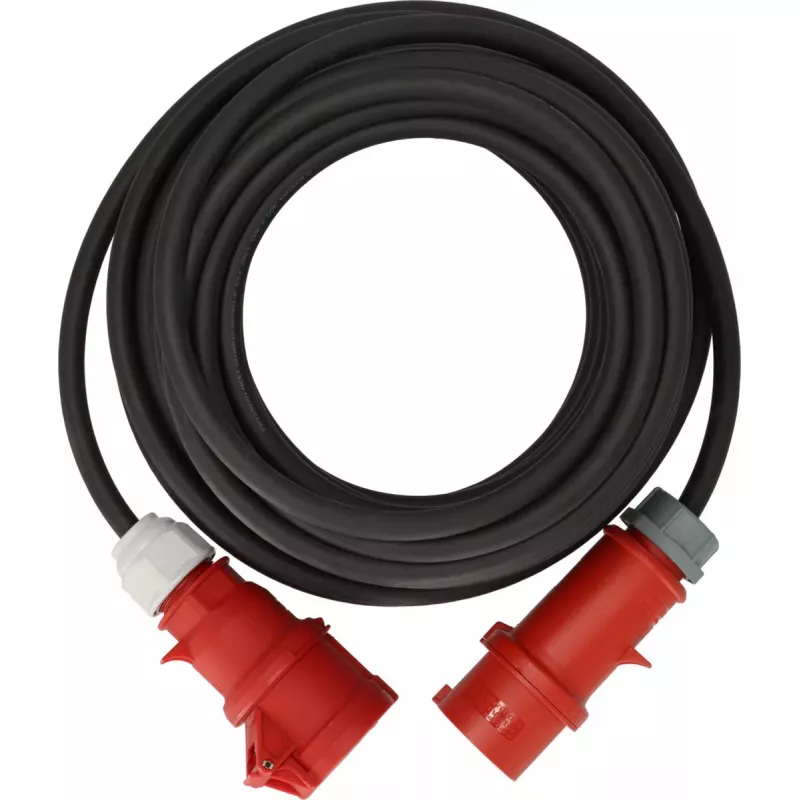

Alargador de corriente Brennenstuhl 1169390100 10 m exterior IP44

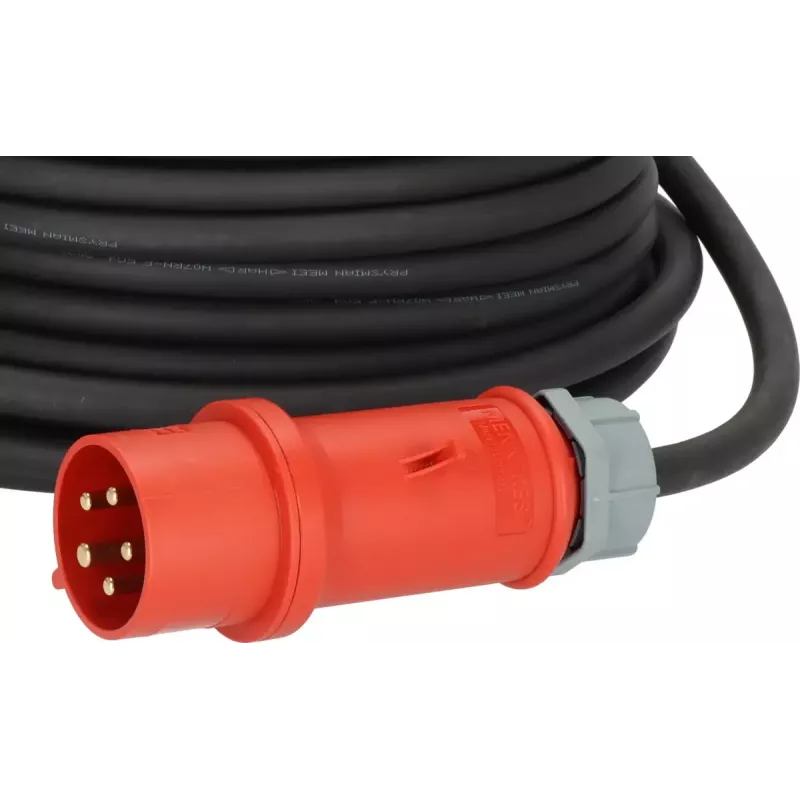

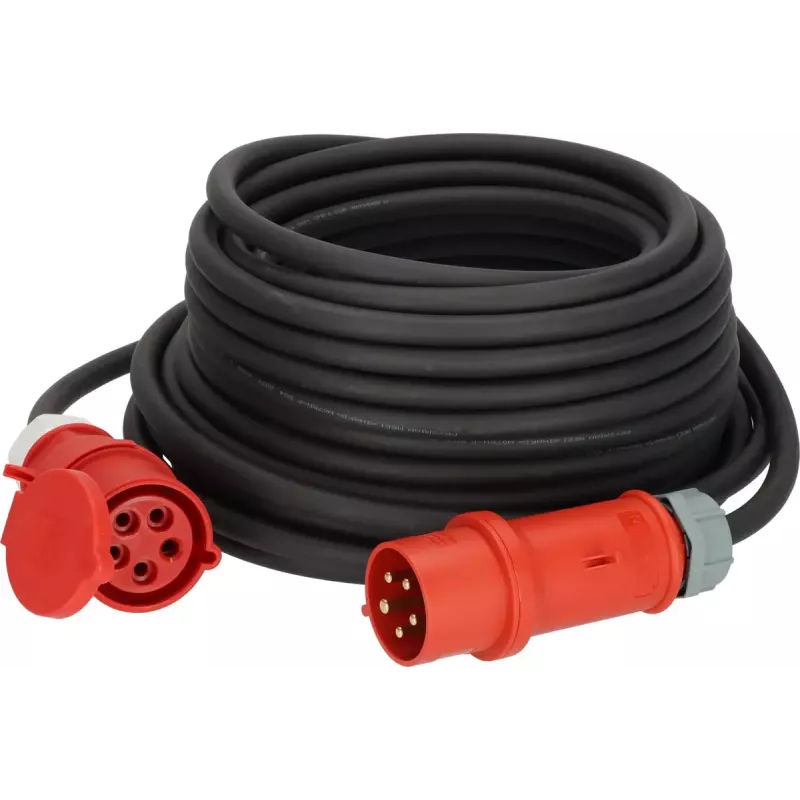

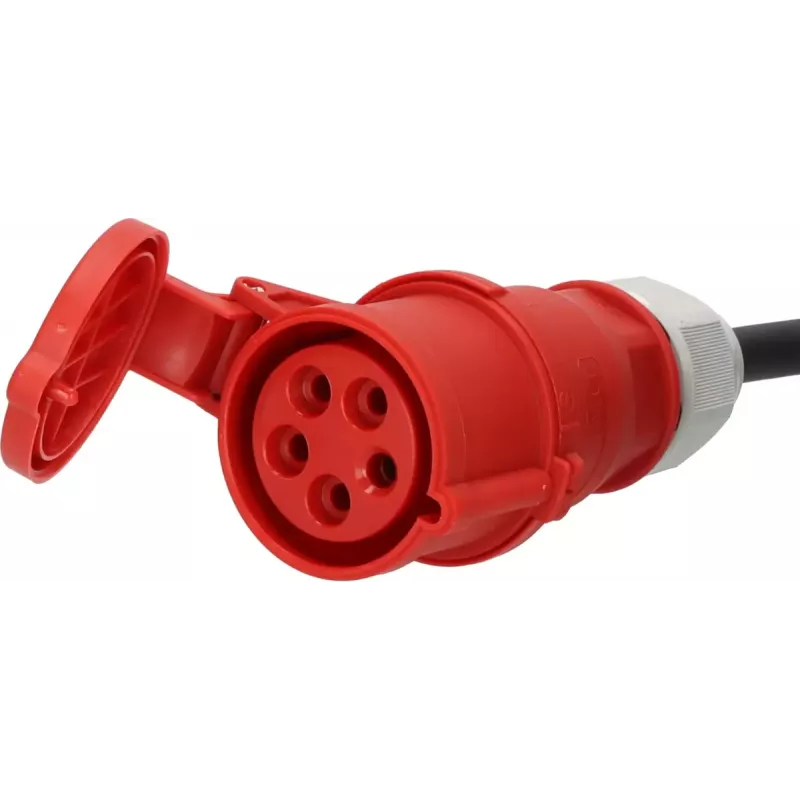

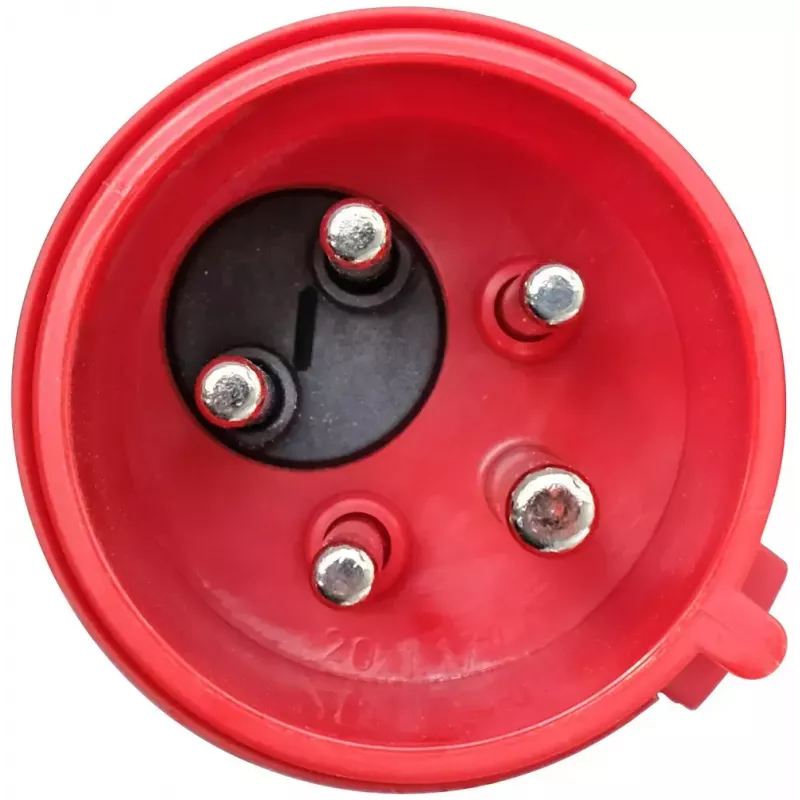

The Brennenstuhl 1169390100 power extension lead is a 10 m outdoor extension cable designed for demanding outdoor use. With IP44 protection and a robust rubber-neoprene sheath, the cable is suitable for construction sites, industrial environments and commercial areas. The unit includes a 5‑pole CEE phase inverter and coupling with a sealing flap and is rated for 400 V / 32 A.

Advantages

The neoprene-sheathed H07RN-F 5G4.0 cable provides oil and UV resistance for improved durability outdoors. The integrated 5‑pole CEE coupling and phase inverter ensure safe three-phase connections. IP44 protection protects against splashing water and solid objects, making the extension lead suitable for rough conditions. The 10 m length offers extended reach for external power distribution.

Suitable for

• Construction sites
• Industrial power distribution
• Commercial outdoor equipment
• Temporary three-phase installations

Key specifications

• Cable length: 10 m
• Cable designation: H07RN-F 5G4.0
• Rated voltage/current: 400 V / 32 A
• Protection class: IP44
• Sheath material: rubber neoprene (oil- and UV-resistant)
• Product dimensions: 305 x 305 x 110 mm
• Weight: 4.78 kg
• Product colour: Black, Red

How to use

Uncoil the 10 m cable fully before use and connect the 5‑pole CEE coupling to a compatible 400 V / 32 A supply. Ensure the sealing flap is closed when the coupling is not in use to maintain IP44 protection. Route the cable to avoid sharp edges, heat sources and standing water. Only qualified personnel should make permanent three-phase connections; use the extension lead for temporary power distribution and portable equipment.

Recommendations

Inspect the cable and connectors for damage before each use. Do not exceed the indicated 32 A rating and avoid prolonged exposure to direct sunlight when not in operation to extend service life.
