Alargador de corriente Brennenstuhl 1169950 25m 1 toma AC exterior naranja

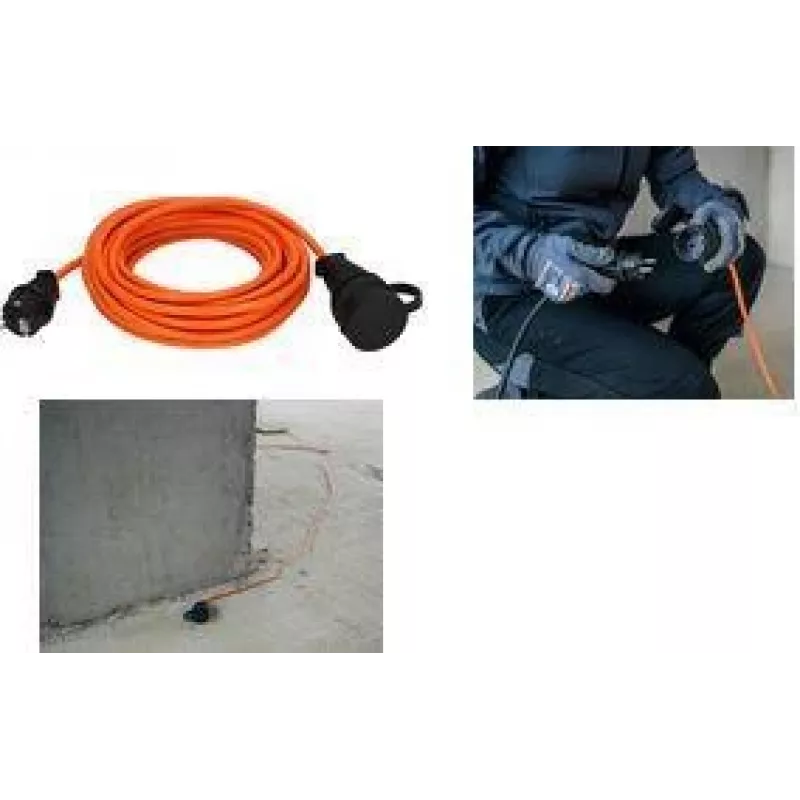

The BREMAXX® extension cable by Brennenstuhl (model 1169950) is a 25 m outdoor power extension in signal orange with IP44 protection. It features a single AC outlet and a straight protective-contact plug, and is designed for outdoor use with a compact housing measuring 230 x 80 x 230 mm and a weight of 2.57 kg. The cable is specified as AT-N05V3V3-F 3G1.5 and uses the robust BREMAXX® cable construction.

Advantages

The BREMAXX® cable is rated for use down to -35 °C and is resistant to oil, UV exposure and mechanical stress. The extension set includes a protective-contact socket with a sealing cap for improved water resistance and a highly visible signal-orange colour for easier identification in outdoor environments.

Suitable for

• Temporary outdoor power supply for tools and equipment
• Garden and yard work where a 25 m reach is required
• Construction sites and maintenance tasks with moderate environmental exposure

Key specifications

• Cable length: 25 m
• Cable designation: AT-N05V3V3-F 3G1.5
• AC outlets: 1
• Protection class: IP44
• Rated voltage: 250 V
• Product colour: Orange
• Weight: 2.57 kg
• Dimensions: 230 x 80 x 230 mm

How to use

Unroll the 25 m BREMAXX® cable fully before use to avoid heat build-up. Insert the straight protective-contact plug into a suitable grounded supply outlet rated 250 V. Connect your electrical device to the single AC outlet and close the sealing cap when the socket is not in use to maintain water resistance. Do not exceed the device’s rated current and follow local electrical safety regulations.

Recommendations

Store the cable dry and protected from direct sunlight when not in use. Regularly inspect the cable, plug and socket for signs of damage before each use; do not use if the insulation or contacts are damaged.
