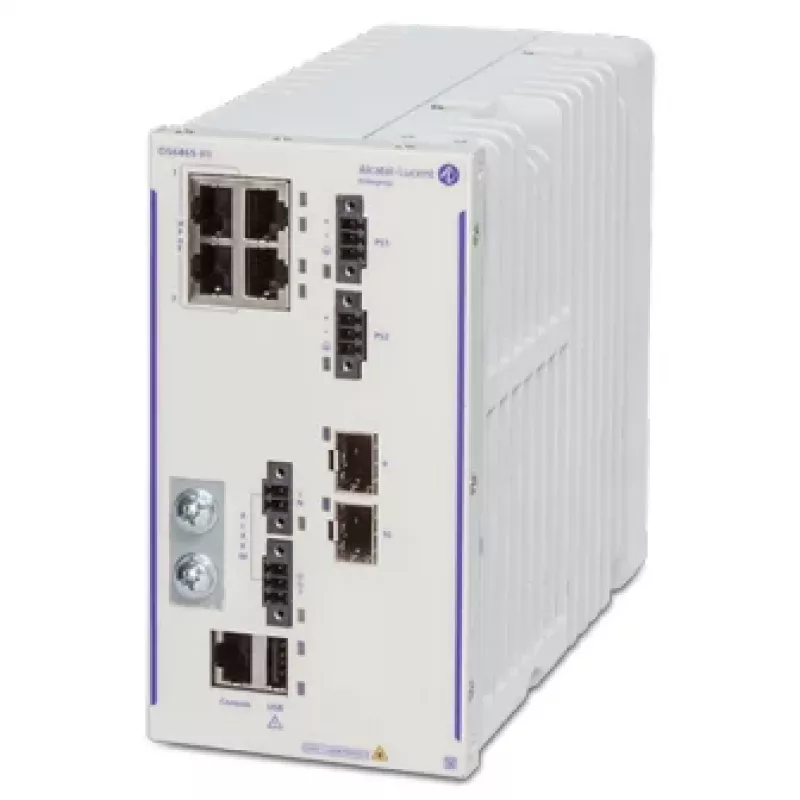

Alcatel-Lucent OmniSwitch 6465-P6 switch gestionado L3 con 4x Gigabit PoE+ y 2x SFP, 150W High PoE, montaje en carril DIN/pared

In industrial automation or surveillance networks where space is tight and reliability is non-negotiable, the Alcatel-Lucent OmniSwitch 6465-P6 delivers Layer 3 management and high-power PoE in a compact, fanless chassis. Mount it on a DIN rail, wall, or desktop to power IP cameras, wireless access points, and other PoE devices directly from the switch.

Key specifications

• 4 x 10/100/1000Base-T RJ-45 ports with PoE+ (IEEE 802.3at) and High PoE support
• 2 x 100/1000Base-X SFP uplink ports for fiber connectivity
• Total PoE power budget: 150 W
• Layer 3 Lite features: static routing, RIPv1/v2, OSPFv2/v3
• Switching capacity: 12 Gbps; forwarding rate: 8.9 Mpps
• MAC address table: 16K entries; jumbo frame support up to 9 KB
• Management: CLI, Web GUI, SNMPv1/v2c/v3, Telnet, SSH, RMON
• Security: 802.1X, ACLs, DHCP snooping, port security
• QoS: 8 queues per port, strict priority, WRR
• VLAN support: IEEE 802.1Q, up to 4K VLANs
• Redundancy: STP, RSTP, MSTP, LACP
• Fanless design for silent operation
• Operating temperature: -40°C to 70°C
• Power input: 48-57V DC

Why choose it

This switch combines ruggedness with advanced Layer 3 features, making it suitable for harsh environments where conventional switches fail. Its fanless design eliminates moving parts, reducing maintenance and extending lifespan.

Ideal use cases

• Industrial Ethernet networks in factories, warehouses, and transportation systems
• IP surveillance deployments requiring high-power PoE for PTZ cameras
• Building automation and smart infrastructure with limited space
• Edge networking in outdoor cabinets or kiosks

Good to know

The OmniSwitch 6465-P6 supports a wide operating temperature range and flexible mounting options, ensuring deployment flexibility. Its High PoE capability allows powering devices that require more than the standard PoE+ budget.
