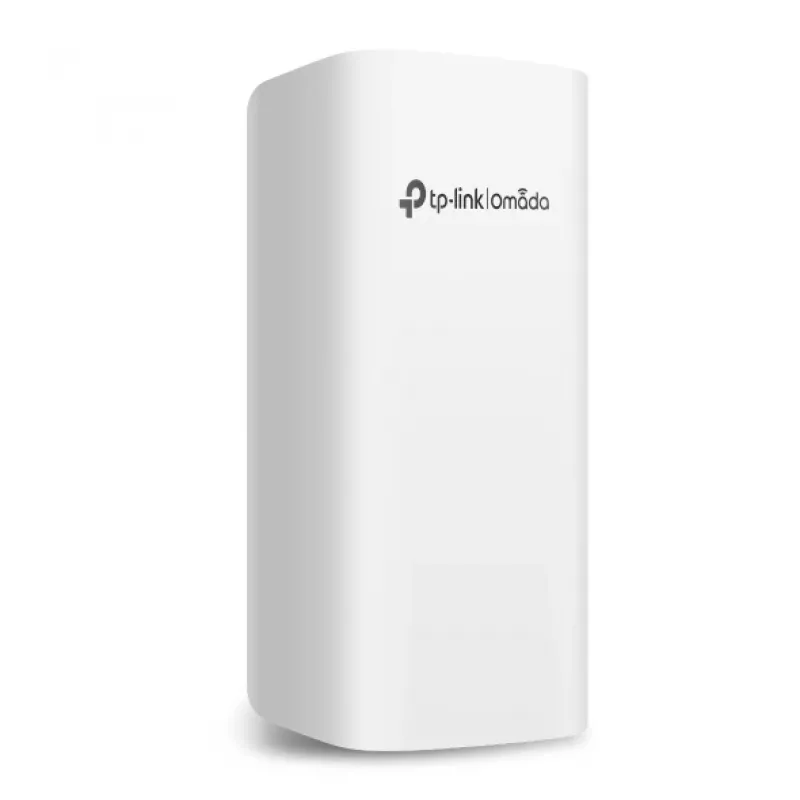

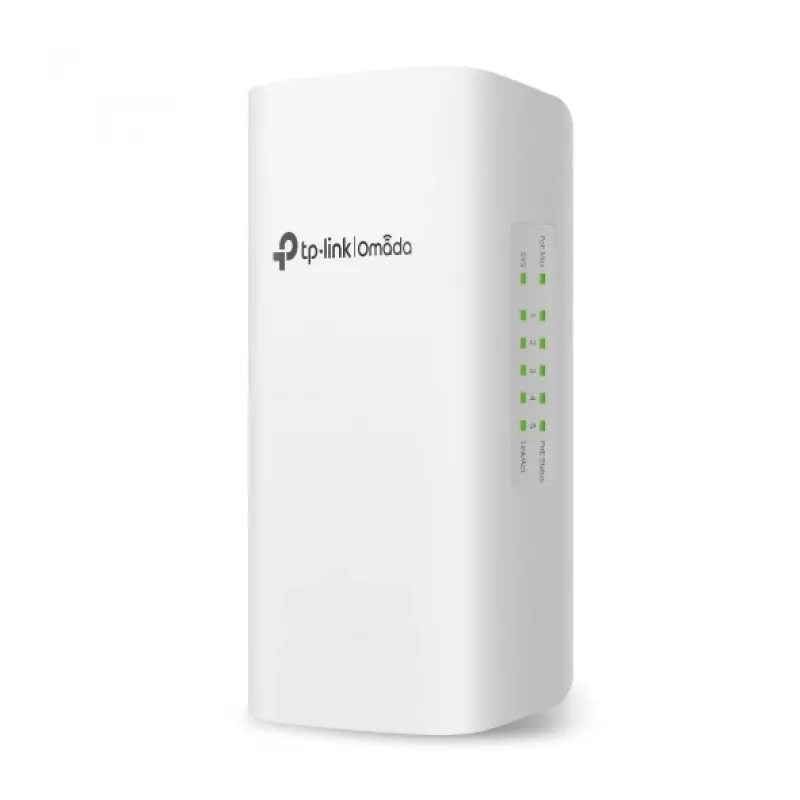

TP-Link Omada Switch inteligente Gigabit de 5 puertos con 1 puerto PoE++ de entrada y 4 puertos PoE+ de salida

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out provides PoE passthrough to extend both power and data transmission distance up to 200 m while maintaining gigabit speeds. The switch uses a single PoE cable to deliver power and network connectivity, enabling simplified outdoor deployments for long-range surveillance cameras and wireless access points. Its compact design and mounting kits allow flexible placement on walls, poles, or inside outdoor junction boxes.

Advantages

The device doubles the standard PoE reach from 100 m to 200 m, removing constraints related to mains power availability. With one Gigabit PoE++ input and four Gigabit PoE+ outputs, the switch supports automatic power negotiation and protects non-PoE equipment. The weatherproof IP55 enclosure ensures reliable outdoor operation. Built-in features such as static routing, ACL, QoS and VLAN provide traffic control, security, and service prioritization for smoother network performance. Centralized cloud management via the Omada SDN platform enables unified configuration and monitoring of access points, switches and gateways.

Key specifications

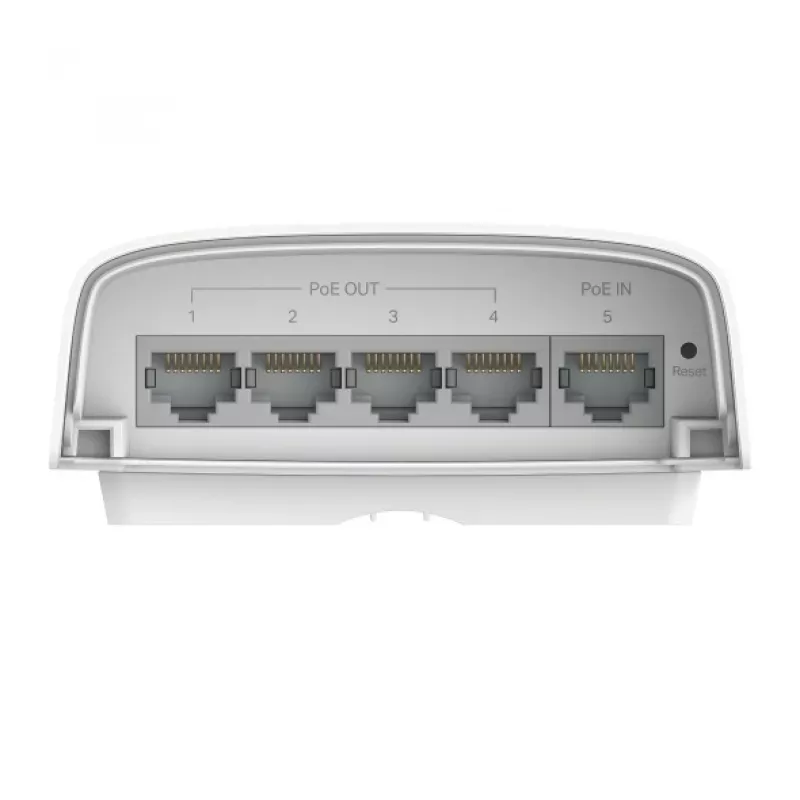

• Ports: 1 × Gigabit PoE++ input, 4 × Gigabit PoE+ outputs
• Extended PoE passthrough distance: up to 200 m (656 ft) while maintaining gigabit speeds
• PoE budget when powered by: 802.3bt Type 4 (up to 90 W) — supports up to 64 W output; 802.3bt Type 3 (60 W) — supports up to 44 W output; 802.3at and 802.3af — supports up to 19 W/6 W outputs respectively
• Ingress protection: IP55 weatherproof enclosure

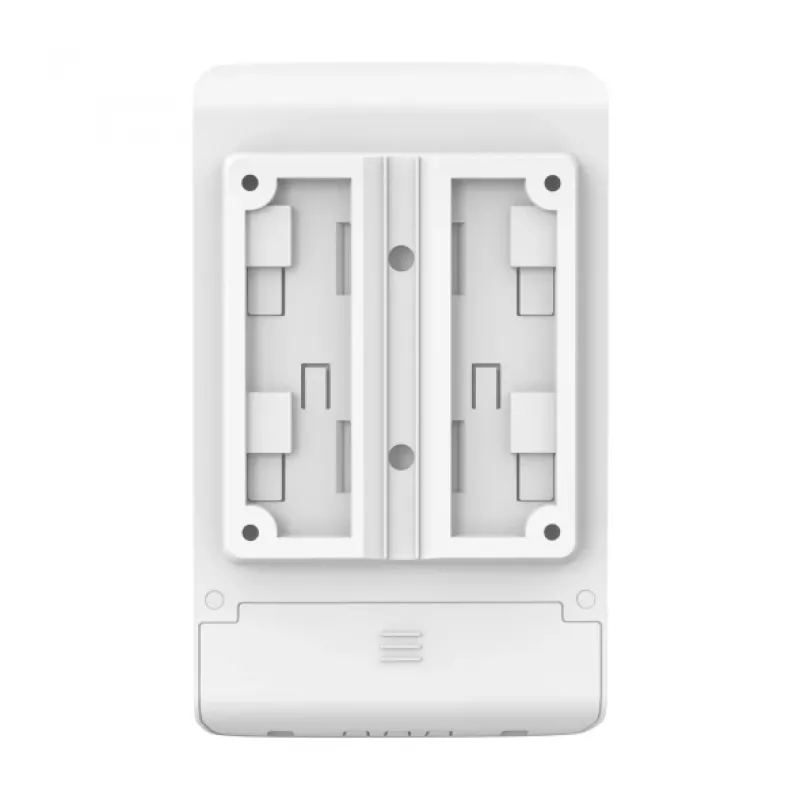

• Mounting: wall and pole mounting kits included; compact form factor for junction box installation
• Management and features: Omada SDN cloud management, static routing, Access Control List (ACL), QoS, VLAN

How to use

Connect a PoE++ source to the single Gigabit PoE++ input port to supply power and data to the switch. Attach powered devices such as long-range surveillance cameras or access points to the four Gigabit PoE+ output ports using Ethernet cable; the switch will extend the effective reach up to 200 m. Use the provided mounting kits to secure the unit to a wall or pole or place it inside an appropriate outdoor junction box. Configure network policies, VLANs, ACLs and QoS through the Omada SDN controller for central management and traffic prioritization.

Recommendations

For reliable long-distance PoE deployments, use certified 802.3bt or 802.3at-compliant PoE sources and quality shielded or outdoor-rated Ethernet cabling. Confirm device PoE requirements in advance and manage power budgets through the Omada SDN controller to avoid overload. Periodically check seals and mounting points to maintain the IP55 weatherproof protection.
