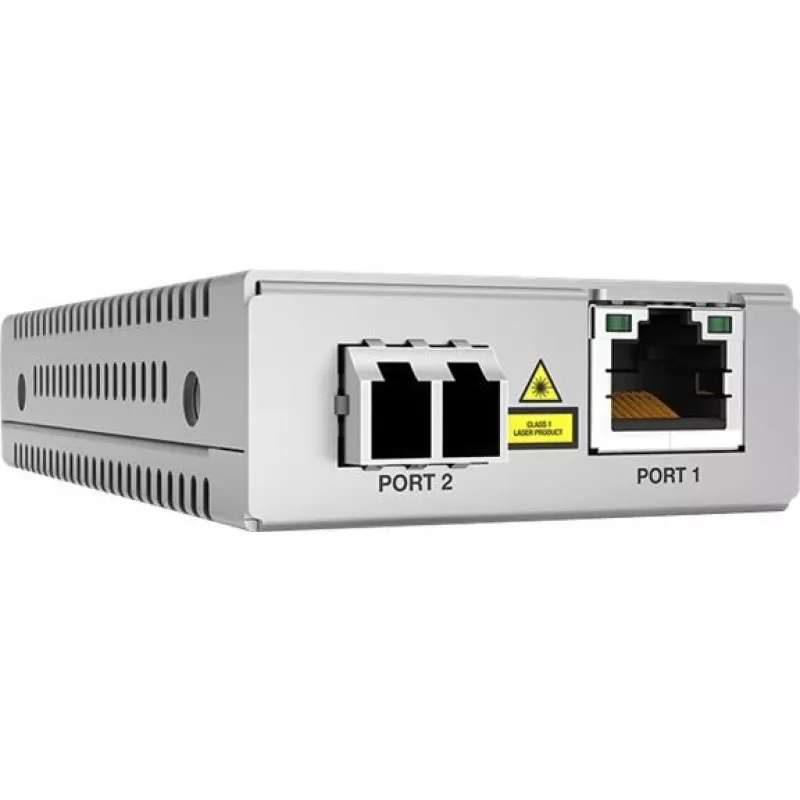

Allied Telesis AT-MMC2000LX/LC-960 Mini convertidor de medios, 10/100/1000T a 1000LX/LC monomodo, 10 km, conforme TAA

The Allied Telesis AT-MMC2000LX/LC-960 is a compact and reliable mini media converter designed to extend your network reach by converting 10/100/1000Base-T copper to 1000Base-LX single-mode fiber. This TAA-compliant device is ideal for connecting remote workstations, surveillance cameras, or extending network segments up to 10 km.

Advantages

Seamlessly integrate fiber into your existing copper network with auto-negotiation and auto-MDI/MDI-X. The rugged metal housing and external power adapter ensure reliable operation in demanding environments. Link Fault Pass-Through (LFP) simplifies troubleshooting by propagating link status across both media types.

Suitable for

• Extending network connections over long distances (up to 10 km)
• Connecting remote offices or campus buildings
• Integrating fiber into surveillance or access control systems
• Upgrading legacy copper networks to fiber

Key specifications

• Device Type: Media Converter
• Form Factor: External, desktop or wall-mountable
• Copper Interface: 1 x RJ-45 (10/100/1000Base-T)
• Fiber Interface: 1 x LC duplex (1000Base-LX)
• Fiber Type: Single-Mode
• Max Distance: 10 km (6.2 miles)
• Wavelength: 1310 nm
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z
• Power: External AC adapter (5V DC, 0.14A)
• Power Consumption: 3.5 W max
• LED Indicators: Power, Link/Activity, Speed, FDX/HDX
• Operating Temperature: 0°C to 50°C
• Product Colour: Grey
• TAA Compliant: Yes

Recommendations

For optimal performance, use single-mode fiber optic cable with LC connectors. The converter supports jumbo frames and can be configured via DIP switches. Ideal for enterprise, education, and government networks requiring TAA compliance.
