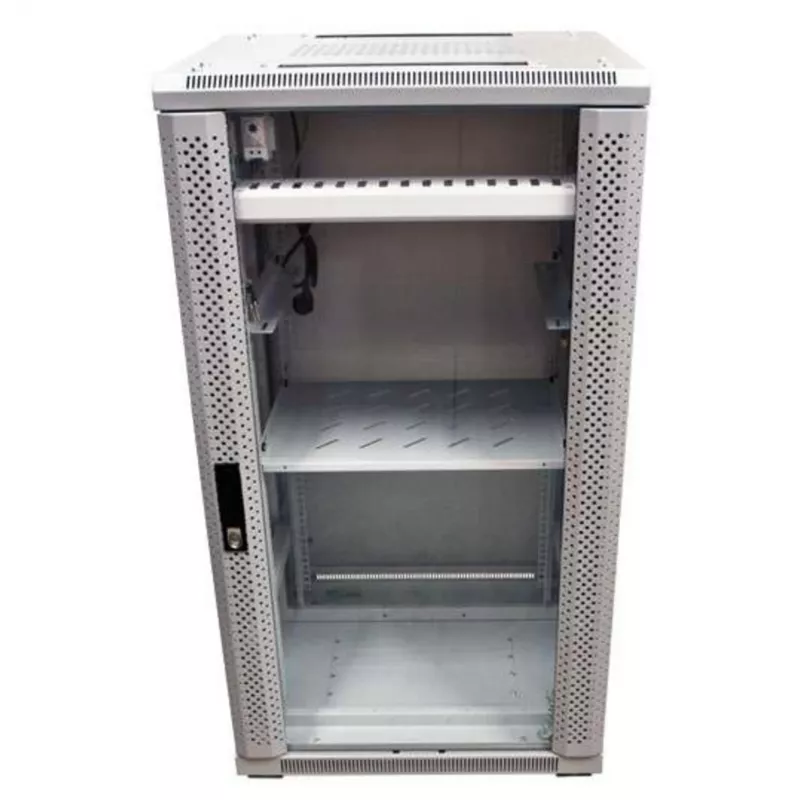

ALLNET 139698 - 12U - Armario de pie - Gris - Acero - Cerrado - 48,3 cm (19")

The ALLNET 139698 is a robust 12U free-standing rack cabinet designed for professional IT environments. Constructed from high-quality steel with a powder-coated finish in grey (RAL 7035), this 19-inch rack provides secure and organized housing for your network equipment, servers, and peripherals. With a static load capacity of 600 kg and adjustable mounting rails, it offers flexibility for various installation depths up to 450 mm. The lockable front glass door and rear steel door ensure security, while removable side panels allow easy access for maintenance. Cable entry from top and bottom, along with passive ventilation (prepared for fan unit), keeps your equipment cool and tidy. Ideal for data centers, server rooms, and office networks.

Advantages

High load capacity of 600 kg supports heavy equipment. Lockable doors and side panels provide security. Adjustable mounting rails accommodate various device depths. Cable management with top/bottom entry keeps installation clean. Durable powder-coated steel construction ensures long life.

Suitable for

• Network switches, patch panels, and routers
• Server and storage devices
• Audio/video equipment in 19-inch format
• Data centers, server rooms, and office IT infrastructure

Key specifications

• Rack Units: 12U
• Rack Type: Free-standing / Floor-standing Cabinet
• Rack Standard: 19-inch
• Material: Steel
• Colour: Grey (RAL 7035)
• Front Door: Tempered glass, lockable
• Rear Door: Steel, lockable
• Side Panels: Removable, lockable
• Static Load Capacity: 600 kg
• Max. Installation Depth: 450 mm
• Cable Entry: Top and bottom
• Ventilation: Passive, prepared for fan unit
• Protection Class: IP20
• Mounting Rails: Front and rear, adjustable depth
• Mobility: Adjustable leveling feet, castors
• Frame Construction: Welded steel frame
• Finish: Powder-coated
• Included Accessories: 2 keys, mounting hardware

Recommendations

For optimal airflow, consider installing an optional fan unit. Ensure the rack is placed on a level surface and adjust the leveling feet for stability. Use cable management accessories to maintain a tidy installation.
