ALLNET 4duino Sensor magnético de lengüeta para Smart Car (ALL_OY_3440)

ALLNET 4duino Sensor magnético de lengüeta para Smart Car (ALL_OY_3440)
ALLNET 4duino Sensor magnético de lengüeta para Smart Car (ALL_OY_3440)
ALLNET 4duino Sensor magnético de lengüeta para Smart Car (ALL_OY_3440)
ALLNET 4duino Sensor magnético de lengüeta para Smart Car (ALL_OY_3440)
ALLNET 4duino Sensor magnético de lengüeta para Smart Car (ALL_OY_3440)
ALLNET 4duino Sensor magnético de lengüeta para Smart Car (ALL_OY_3440)
ALLNET 4duino Sensor magnético de lengüeta para Smart Car (ALL_OY_3440)
ALLNET 4duino Sensor magnético de lengüeta para Smart Car (ALL_OY_3440)
12,40 €
PDF
PDF
Stock 18 Código 3022516 Modelo ALL_OY_3440 Garantía 3 años

Envíos y devoluciones

Entrega estimada lunes, 14 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

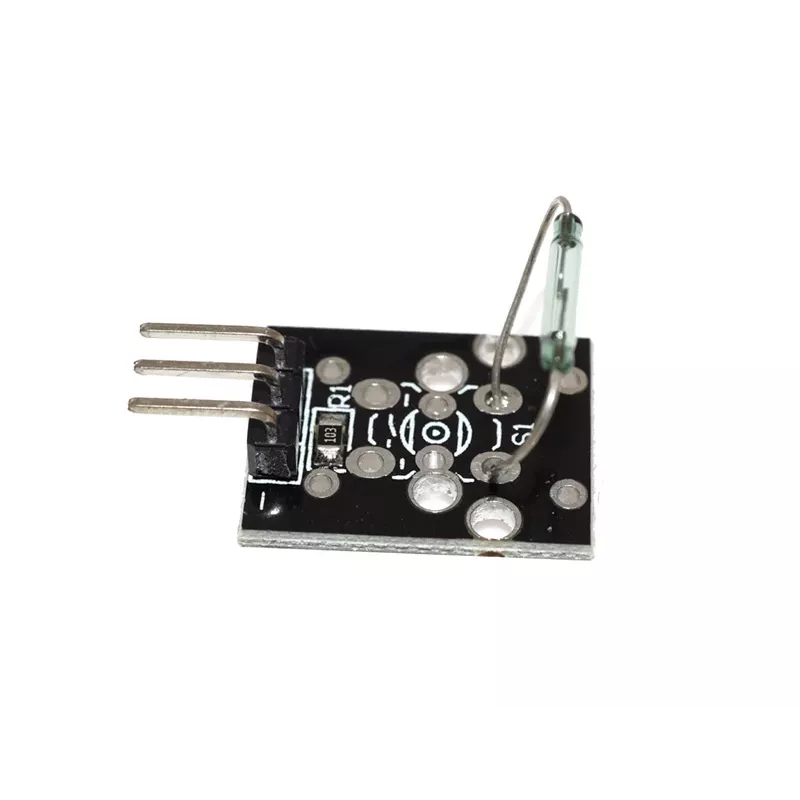

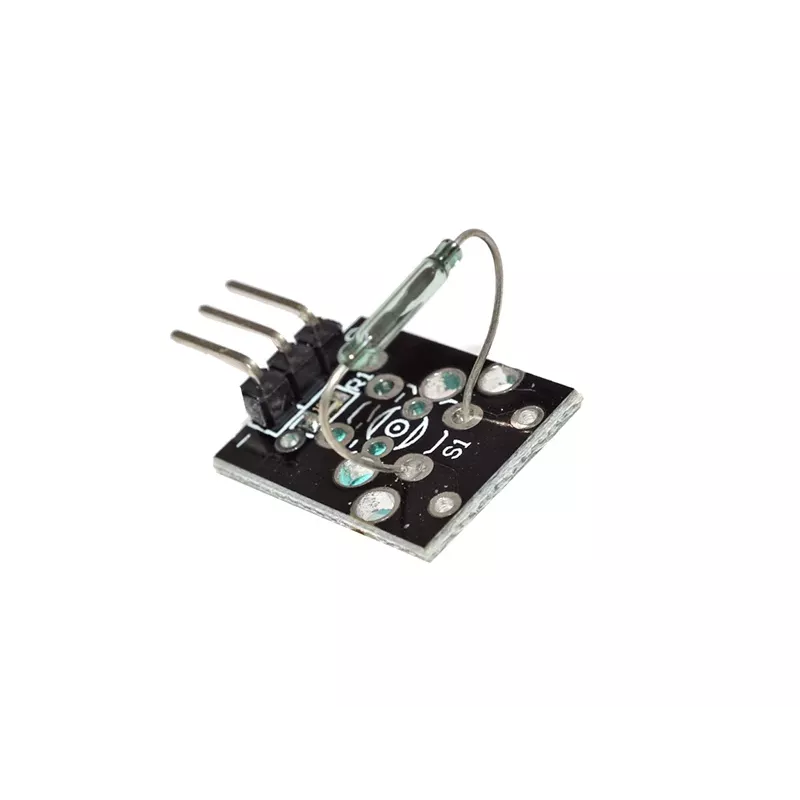

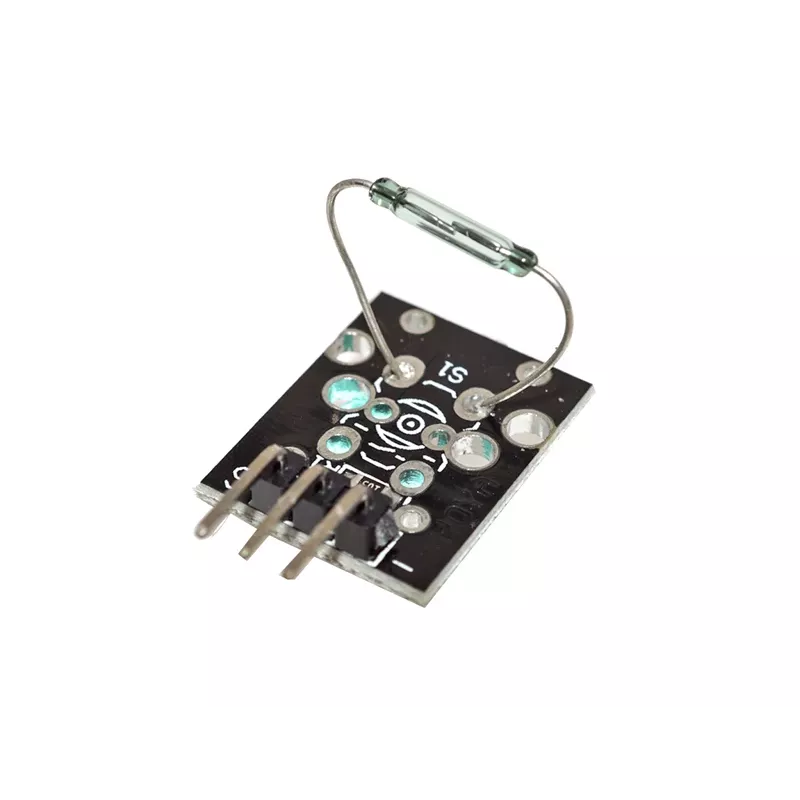

The ALLNET 4duino Magnetic Reed Sensor is a reliable and easy-to-use digital sensor designed for smart car projects and automation. It detects the presence of a magnetic field and outputs a digital HIGH/LOW signal, making it ideal for position sensing, door/window alarms, and robotics. The sensor operates at 3.3V to 5V DC and is compatible with Arduino, Raspberry Pi, ESP32, and ESP8266 platforms. With a compact module size of 32 mm x 14 mm x 7 mm and mounting holes, it integrates seamlessly into your projects.

Advantages

This reed sensor offers a simple digital interface, fast response time (<1 ms), and a typical detection range of 5-15 mm. It includes three modules in the package, providing excellent value for prototyping and education. The on-board power LED indicates operation status, and the normally open (NO) contact configuration ensures straightforward integration.

Suitable for

  • Smart car obstacle detection and line following
  • Door and window alarm systems
  • Position and limit sensing in automation
  • Magnetic field presence detection
  • Arduino, Raspberry Pi, ESP32, and ESP8266 projects

Key specifications

  • Sensor Type: Reed Switch
  • Detection Method: Magnetic Field
  • Output Signal: Digital (HIGH/LOW)
  • Operating Voltage: 3.3V - 5V DC
  • Contact Configuration: Normally Open (NO)
  • Max Switching Voltage: 100V DC
  • Max Switching Current: 0.5A
  • Max Switching Power: 10W
  • Interface Pins: 3 (VCC, GND, Digital Output)
  • Module Dimensions: 32 mm x 14 mm x 7 mm
  • Detection Range: 5-15 mm (depending on magnet strength)
  • Response Time: <1 ms
  • Operating Temperature: -20°C to +85°C
  • Mounting Holes: 2 (approx. 3mm diameter)
  • Included Modules: 3

Recommendations

For best performance, use a strong neodymium magnet and ensure proper alignment. The sensor can be directly connected to digital input pins of microcontrollers. Suitable for both hobbyist and educational applications.

Especificaciones

Especificaciones
Categoría
Componente electrónico y CI
EAN
4038816070456
Marca
ALLNET
Modelo
ALL_OY_3440
MPN
ALL_OY_3440
Tamaño del embalaje
32 mm x 14 mm x 7 mm
Temperatura de funcionamiento (T-T)
-20°C to +85°C
