GETFORT Conector RJ45 Cat.6 UTP 8P8C pack de 100

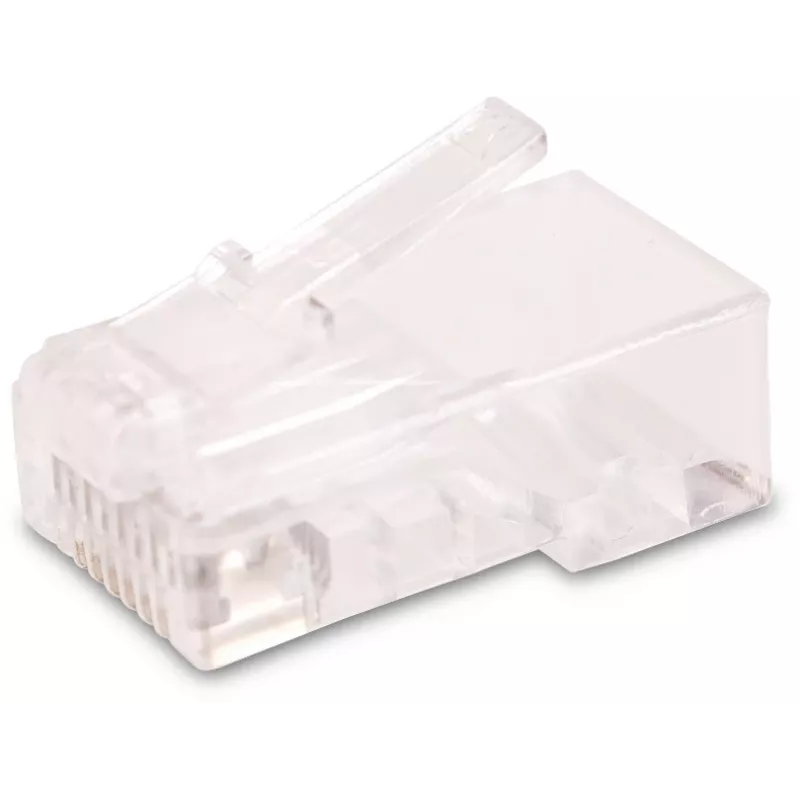

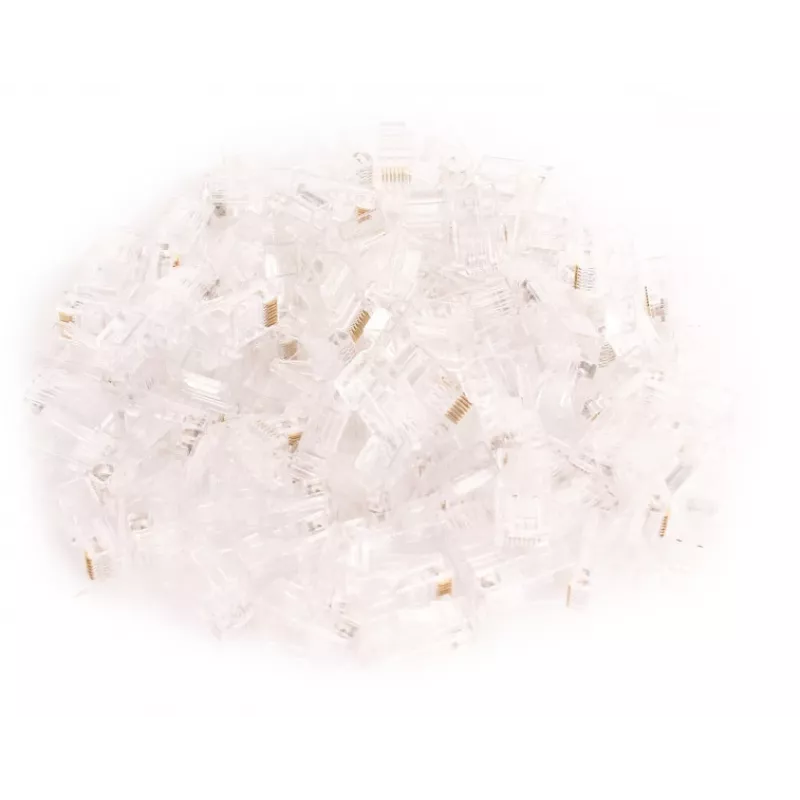

The GETFORT GF-RJ45-6UTP-100 is a high-quality RJ45 Cat.6 unshielded (UTP) connector, designed for reliable network installations. This pack contains 100 pieces, ideal for bulk cabling projects. Each connector features 50-micron gold-plated contacts for optimal conductivity and corrosion resistance, and a transparent high-impact polycarbonate housing for easy inspection.

Advantages

These connectors support both solid and stranded conductors (23-26 AWG) and are compatible with 10 Gigabit Ethernet (10GBASE-T) up to 55 meters and 1 Gigabit Ethernet (1GBASE-T) up to 100 meters. With a frequency bandwidth of 250 MHz and a minimum of 750 mating cycles, they offer long-lasting performance. The 3-prong contact design ensures secure termination.

Suitable for

• Structured cabling in offices and data centers
• Network patch panels and wall outlets
• Custom-length Ethernet cable assembly
• Home network installations

Key specifications

• Connector Type: RJ45 8P8C
• Category: Cat.6
• Shielding: Unshielded (UTP)
• Contact Plating: 50 µm Gold
• Housing Material: Polycarbonate
• Wire Gauge: 23-26 AWG
• Termination: Crimp-on
• Color: Transparent
• Quantity: 100 pieces
• Operating Temperature: -10°C to 60°C
• Compliance: RoHS, CE

Recommendations

Use with a compatible crimping tool for best results. Ensure proper cable preparation and insertion depth to maintain Cat.6 performance.
