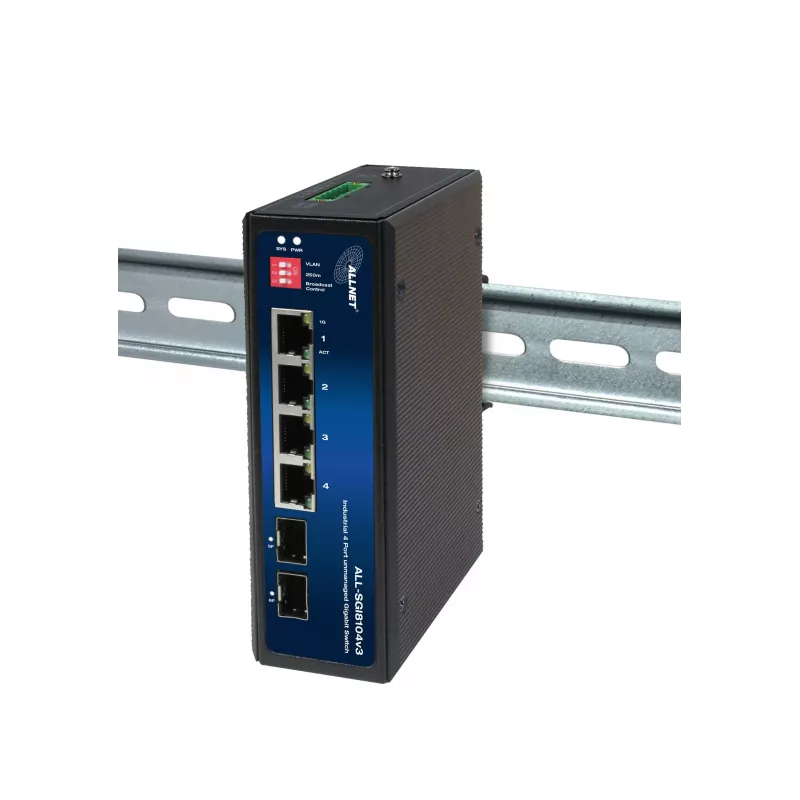

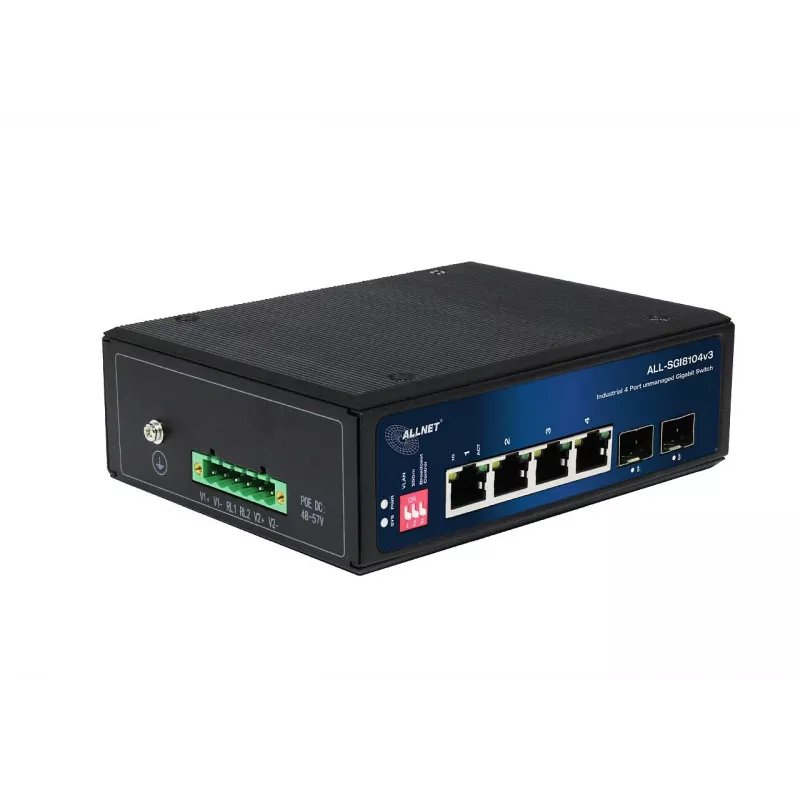

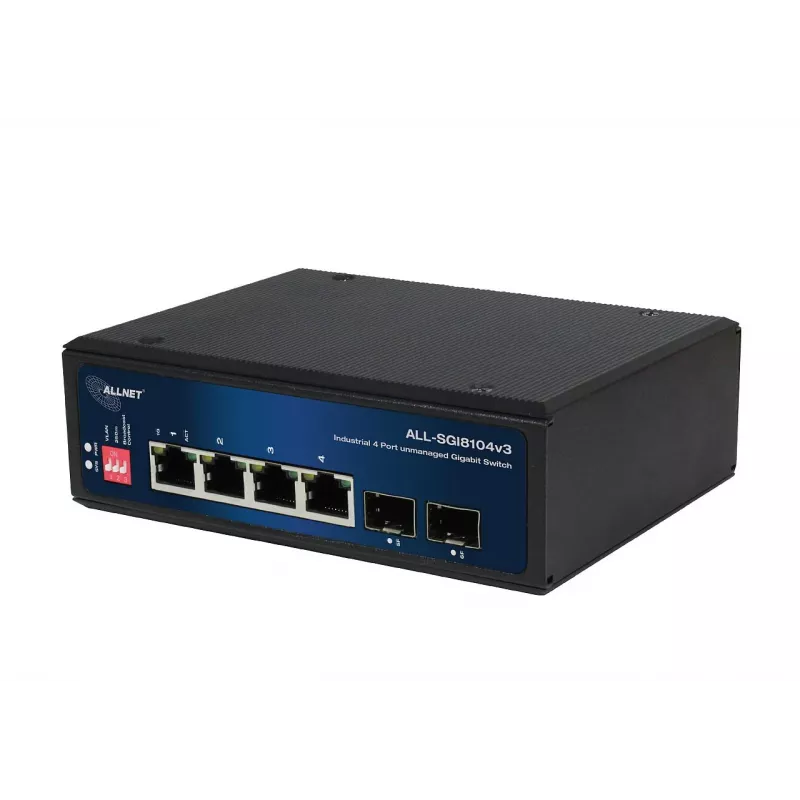

ALLNET ALL-SGI8104v3 Switch industrial no gestionado Layer 2, 6 puertos GbE, 4x GbE RJ45, 2x SFP, sin ventilador, IP40

Industrial Ethernet switch with six Gigabit ports, featuring four 10/100/1000Base-T RJ45 ports and two 1000Base-X SFP slots for fiber uplinks. Its fanless metal housing and IP40 rating ensure reliable operation in harsh environments, while the wide operating temperature range from -40°C to 75°C makes it suitable for extreme conditions. The switch supports Layer 2 switching with a 12 Gbps switching capacity and 8.928 Mpps forwarding rate, delivering non-blocking performance for industrial networks.

Advantages

Robust fanless design eliminates moving parts, reducing maintenance and ensuring silent operation. The IP40-rated metal enclosure protects against dust and debris, ideal for factory floors, transportation, and outdoor cabinets. Dual SFP slots provide flexible fiber connectivity for long-distance uplinks, while auto-negotiation on all copper ports simplifies installation. The wide power input range (12-48V DC) via terminal block allows integration with various industrial power systems.

Suitable for

• Industrial automation and control systems
• Manufacturing plants and machine networks
• Transportation and traffic monitoring
• Outdoor or harsh environment installations
• Network expansion with fiber uplinks

Key specifications

• 6 total Gigabit ports: 4x RJ45 + 2x SFP
• Unmanaged Layer 2 switching, plug-and-play
• 12 Gbps switching capacity, 8.928 Mpps forwarding rate
• Fanless cooling, IP40 protection, metal housing
• Operating temperature: -40°C to 75°C
• Power input: 12-48V DC terminal block
• DIN-rail and wall-mount options
• Jumbo frame support up to 9KB
• 2K MAC address table
• LED indicators for power and link/activity

Recommendations

For reliable industrial networking, pair this switch with SFP modules matching your fiber type and distance. Ensure proper grounding and use a regulated DC power supply within the specified range. Mount on a DIN rail in a control cabinet for optimal protection and accessibility.
