ALLNET Armario de pared de 19" 9U de 1 pieza profundidad 600mm gris claro Flat Pack serie SMA

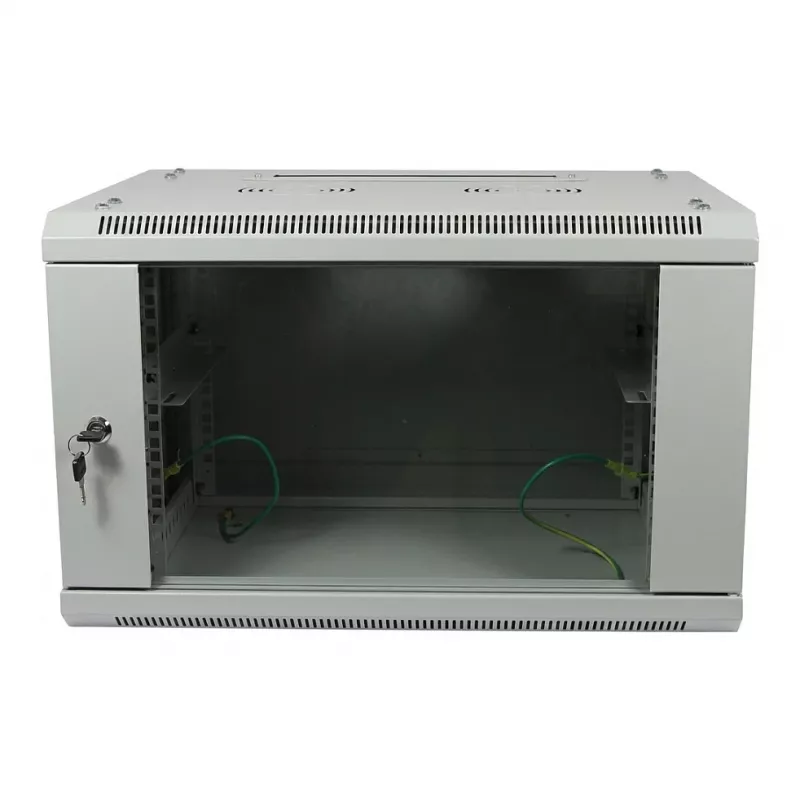

The ALLNET SMA-Series 19" wall-mounted enclosure offers a robust and space-saving solution for housing network equipment. With 9U of rack space and a depth of 600mm, it is ideal for small to medium-sized installations. The flat-pack design allows for easy transport and assembly, while the light grey (RAL 7035) finish ensures a professional appearance.

Advantages

This enclosure provides secure mounting for 19" equipment with a lockable tempered glass front door. The adjustable 19" profile rails offer flexibility for different device depths. Removable side panels simplify cable management and maintenance. With a maximum static load of 60 kg, it can accommodate a variety of switches, patch panels, and other network gear.

Suitable for

• Network cabinets for offices, schools, and small data rooms
• Housing switches, routers, patch panels, and UPS systems
• Wall-mounted installations where floor space is limited

Key specifications

• Rack capacity: 9U
• Form factor: 19-inch
• Mounting: Wall-mountable
• External dimensions (WxDxH): 600 x 600 x 480 mm
• Colour: Light grey (RAL 7035)
• Material: Steel
• Door: Tempered glass front door with lock
• Side panels: Removable
• Cable entry: Top and bottom
• Max. static load: 60 kg
• Protection class: IP20
• Assembly: Flat-pack (disassembled)
• Compliance: RoHS, CE

Recommendations

For optimal cable management, consider using ALLNET cable management panels and accessories. Ensure the wall mounting surface can support the total weight of the enclosure and installed equipment.
