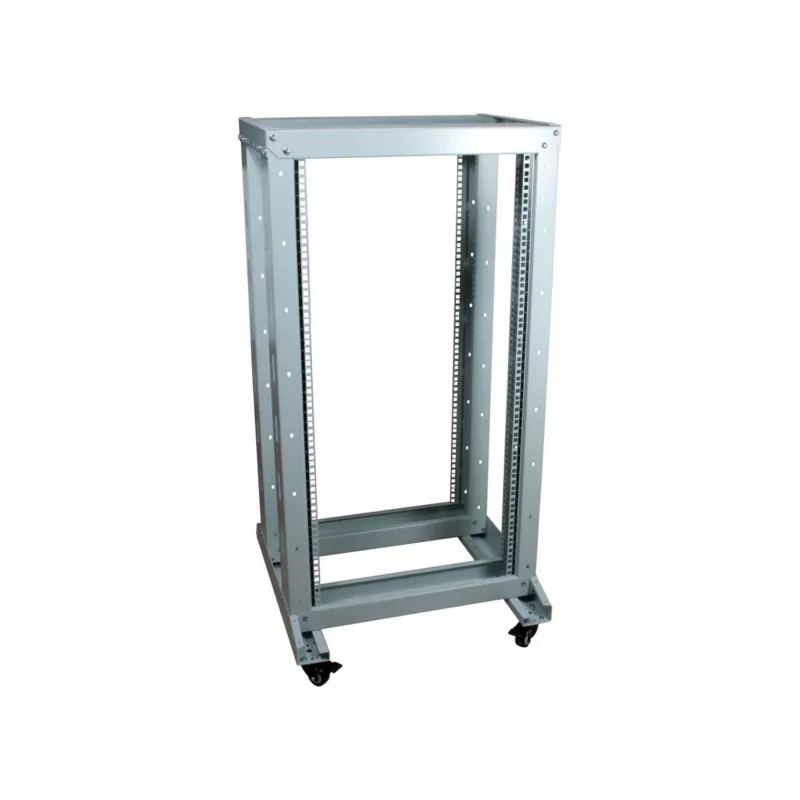

ALLNET bastidor base 19 pulgadas 32U B600/T1200mm gris claro serie SRB

The ALLNET SRB61232GRAU is a high-quality 19-inch base frame rack cabinet designed for professional network and server environments. With 32U of rack space, a width of 600mm, and a depth of 1200mm, this light grey (RAL 7035) steel rack offers robust construction and ample capacity for mounting standard 19-inch equipment. It features perforated front and rear doors with 80% perforation for optimal airflow, adjustable depth mounting rails, and multiple cable entry points for efficient cable management. The rack is equipped with lockable doors and side panels for enhanced security, and includes leveling feet, castors, and a cage nut set. It supports a static load capacity of up to 800 kg and is designed for easy assembly (flat-packed). Ideal for data centers, server rooms, and network closets.

Advantages

Robust steel construction with high load capacity (800 kg). Perforated doors ensure excellent ventilation. Adjustable mounting rails accommodate various equipment depths. Lockable doors and side panels provide security. Easy assembly with included hardware.

Suitable for

• Data centers and server rooms
• Network and telecommunications closets
• Mounting servers, switches, patch panels, and UPS systems
• Structured cabling and cable management

Key specifications

• Rack Standard: 19-inch
• Rack Units: 32U
• External Dimensions (WxDxH): 600 x 1200 x 1600 mm
• Static Load Capacity: 800 kg
• Material: Steel
• Color: Light Grey (RAL 7035)
• Front Door: Perforated Steel (80% perforation)
• Rear Door: Perforated Steel, Split (80% perforation)
• Side Panels: Removable, Lockable
• Mounting Rails: Adjustable Depth 19-inch
• Cable Management: Multiple Cable Entry Points (Top/Bottom)
• Cooling: Passive Ventilation (designed for active cooling)
• Security: Lockable Front/Rear Doors and Side Panels
• Included Accessories: Leveling Feet, Castors, Cage Nut Set
• Construction: Flat-packed for Assembly
• Protection Class: IP20
• Compliance: RoHS, CE

Recommendations

For optimal performance, use active cooling solutions such as fan panels or air conditioning units. Ensure proper cable management to maintain airflow. The rack is suitable for environments requiring IP20 protection.
