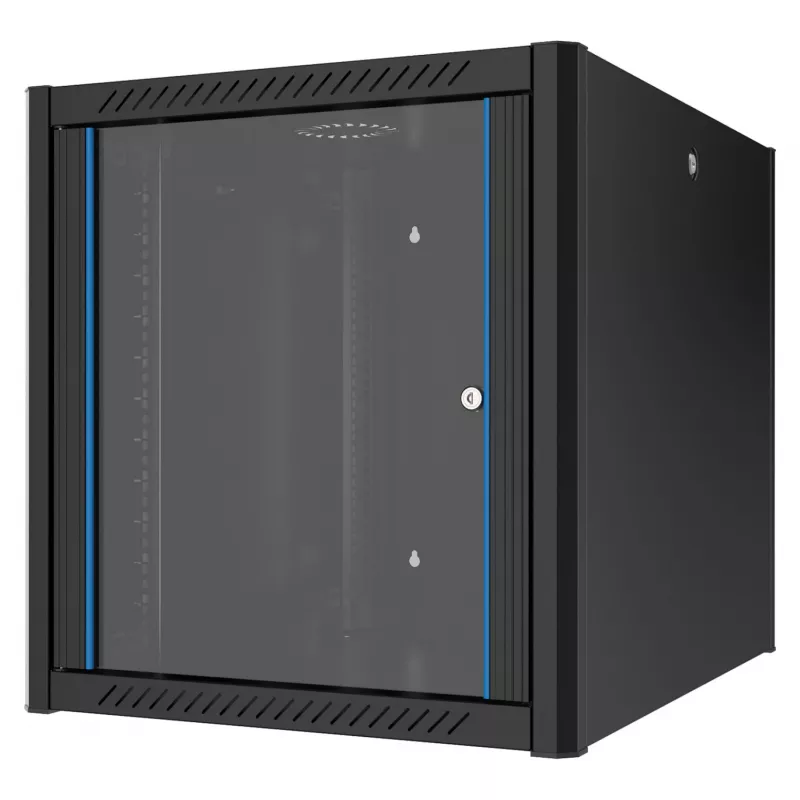

EFB armario de pared 19" 26U, 800mm de profundidad, RAL9005 negro intenso

With a formidable static load capacity of 600 kg, this EFB 19-inch wall-mount cabinet delivers heavy-duty performance for demanding network environments. Its 26U height accommodates substantial equipment, while the 800mm depth provides ample room for cabling and server installations.

Overview

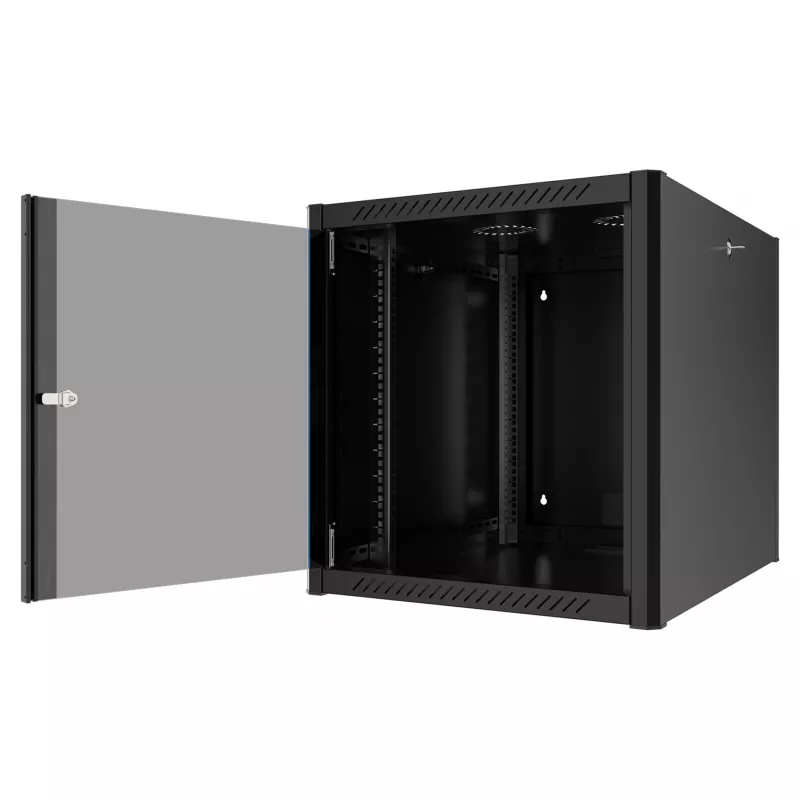

This pre-assembled steel enclosure from EFB Elektronik is engineered for professional IT and network infrastructures. Featuring a robust welded frame and a sleek jet black finish (RAL9005), it offers security, durability, and flexibility. The cabinet includes a lockable safety glass front door, a lockable solid steel rear door, and removable side panels for easy access and maintenance.

What stands out

• Pre-assembled construction saves time and ensures perfect alignment
• Adjustable 19-inch mounting profiles at the front and rear support flexible rack installation
• Top and bottom cable entries with brush strips keep wiring organized and clean
• Preparation for optional fan unit installation in the roof enhances ventilation capabilities
• IP20 protection rating guards against solid objects greater than 12mm

Technical details

• Rack Units: 26U
• Mounting Standard: 19 inch
• External Dimensions: 600mm (W) x 800mm (D) x 1300mm (H)
• Colour: RAL9005 Jet Black
• Material: Cold-rolled steel sheet
• Front Door: Lockable safety glass
• Rear Door: Lockable solid steel
• Side Panels: Removable and lockable
• Static Load Capacity: 600 kg
• Protection Rating: IP20
• Included Accessories: 4x leveling feet, 2x keys, grounding kit
• Frame Construction: Welded

Our verdict

This EFB wall-mount cabinet is a robust, secure, and flexible solution for professional network installations, combining high load capacity with convenient features.
