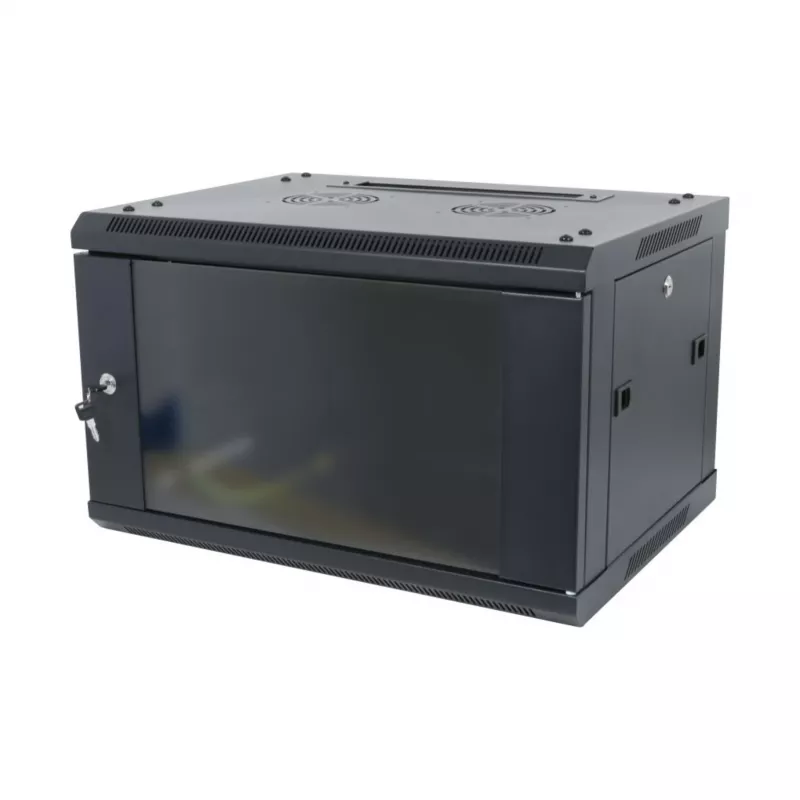

ALLNET serie SMA armario de pared de 19" 6U de una pieza 450mm de profundidad negro Flat Pack

The ALLNET SMA-Series 19" Wall-Mounted Housing 6U offers a robust and secure solution for housing your 19-inch network equipment. Designed for wall mounting, this single-section enclosure is delivered as a flat pack for easy transport and assembly. With a depth of 450 mm, it provides ample space for switches, patch panels, and other active components. The housing features a lockable safety glass front door and removable, lockable side panels for enhanced security and accessibility. Constructed from durable steel sheet with a black RAL 9005 finish, it supports a maximum static load of 60 kg. Cable entry points are located at the top and bottom, and the top is prepared for a fan unit to ensure proper ventilation. The adjustable 19-inch profile rails allow flexible mounting of equipment. This enclosure is ideal for small to medium-sized network installations where space is limited.

Advantages

• Space-saving wall-mount design for efficient use of floor space
• Lockable safety glass door and side panels provide security for valuable equipment
• Flat pack delivery reduces shipping volume and allows easy on-site assembly
• Adjustable mounting rails accommodate various equipment depths
• Prepared for fan unit to maintain optimal operating temperatures

Suitable for

• Network cabinets for small offices, retail spaces, and educational facilities
• Housing switches, routers, patch panels, and other 19-inch equipment
• Installations requiring a secure, lockable enclosure
• Applications where wall mounting is preferred over floor-standing racks

Key specifications

• Rack Units: 6U
• Form Factor: 19-inch
• Mounting Type: Wall Mount
• External Dimensions (W x H x D): 540 x 370 x 450 mm
• Colour: Black (RAL 9005)
• Construction: Single-section (1-part)
• Front Door: Lockable safety glass
• Side Panels: Removable and lockable
• Material: Steel sheet
• Max. Static Load Capacity: 60 kg
• Cable Entry: Top and bottom
• Ventilation: Prepared for fan unit (top)
• Delivery Condition: Flat pack (disassembled)
• Protection Class: IP20
• Mounting Rails: Adjustable 19" profile rails
• Product Series: SMA-Series

Recommendations

For optimal performance, ensure proper ventilation by installing the optional fan unit. Use cable management accessories to organize cabling and maintain airflow. This enclosure is best suited for indoor environments with controlled temperature and humidity.
