Altavoz full range Omnitronic 11036908

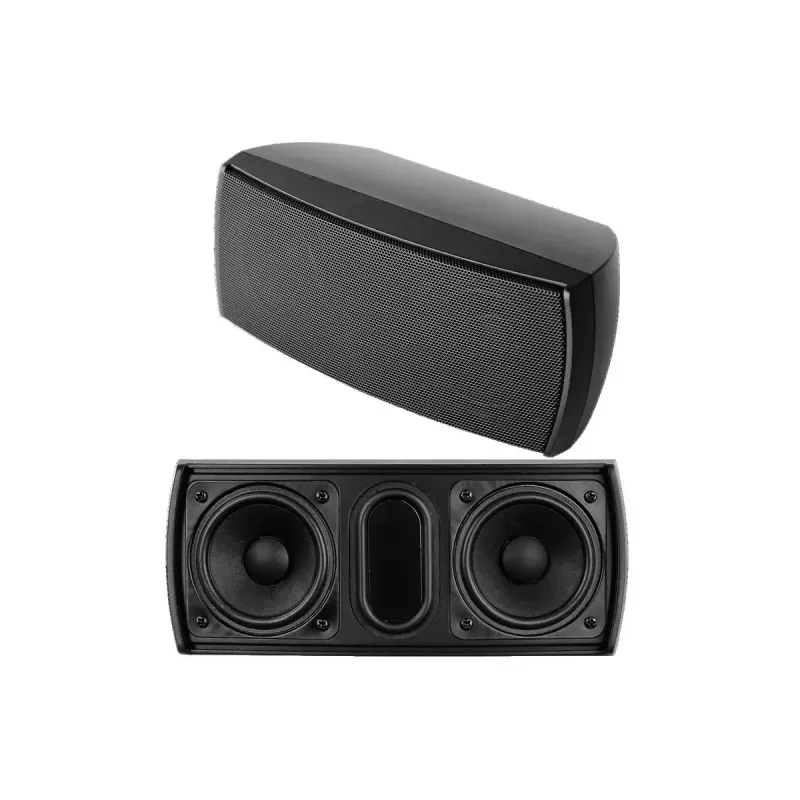

The Omnitronic 11036908 is a full-range 15 W wall speaker designed for public address and background music applications in restaurants, bars, shops, conference rooms and recreation areas. The compact ABS-plastic housing with a metal grille is impact- and scratch-resistant and includes a stable mounting plate with a swivel and tilt joint for flexible wall or ceiling installation. The speaker uses two 6 cm full-range drivers with a 3.5 x 6 cm passive radiator and offers a 100 V transformer option for integration into distributed PA systems.

Advantages

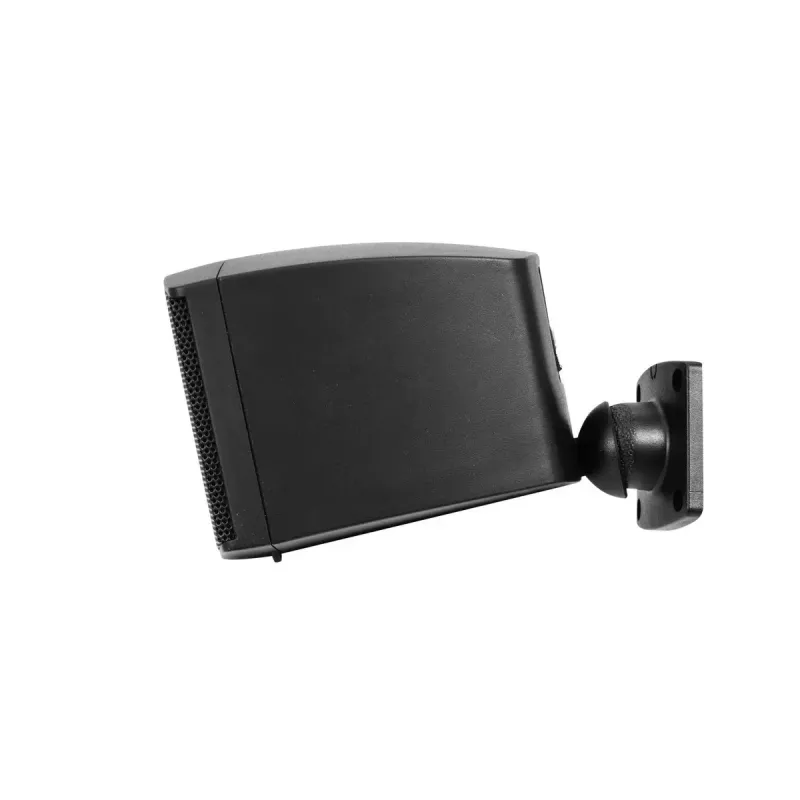

The enclosure provides robust protection while keeping a discreet appearance suitable for commercial interiors. Built-in swivel and tilt mounting hardware allows precise aiming for optimal coverage. The 100 V transformer option simplifies connection to long-line PA installations, and the passive radiator supports improved low-frequency response for a compact full-range loudspeaker.

Suitable for

Key specifications

How to use

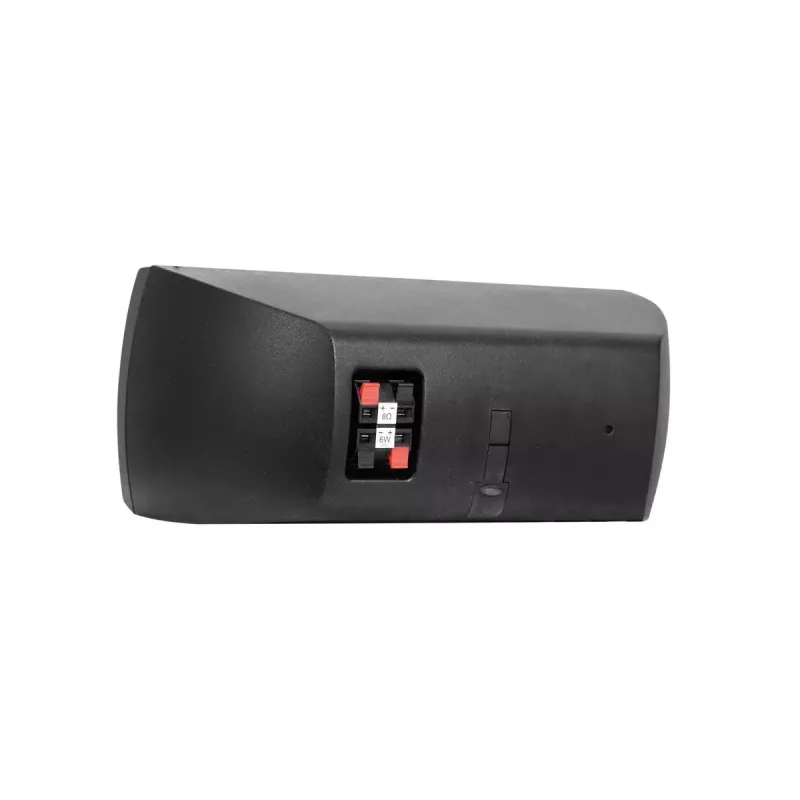

Mount the speaker to a wall or ceiling using the supplied mounting plate; adjust the swivel and tilt joint to aim the speaker toward the listening area. Connect to a suitable amplifier or 100 V PA line according to the system requirement, ensuring correct wiring and power matching. For low-noise operation, route cables away from interference sources and secure all connections before powering the system.

Recommendations

For even coverage in medium-sized rooms, position multiple units at elevated points along the perimeter and orient them inward. When integrating into a 100 V system, verify transformer tap settings and total line load to avoid overloading the amplifier.
