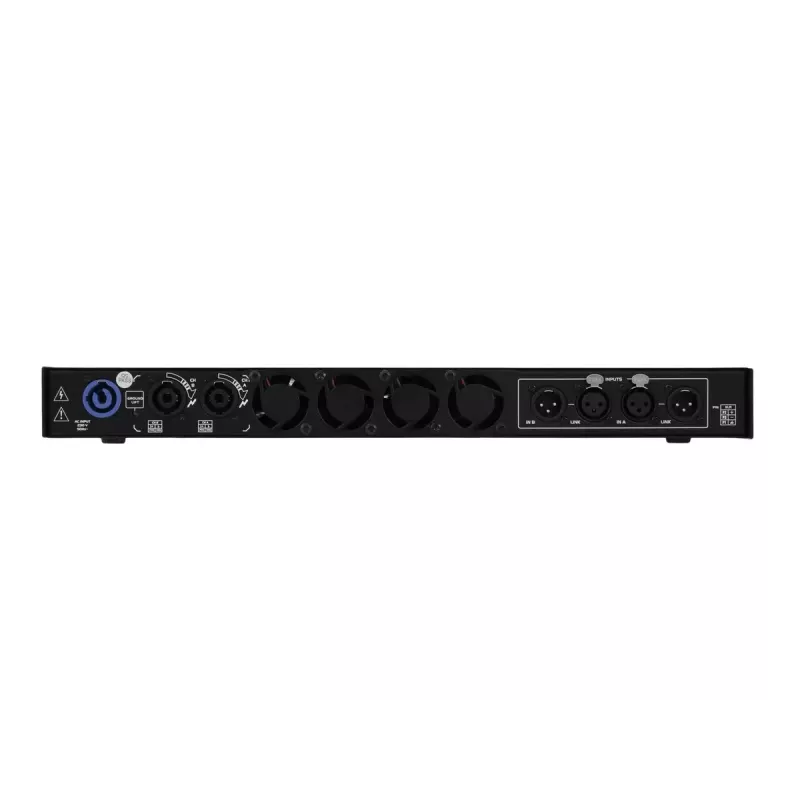

Amplificador de audio Omnitronic 10451636 escenario/directo negro

The Omnitronic 10451636 Performance/stage Black audio amplifier is a compact, high-efficiency Class D amplifier designed for live performance and installed sound applications. Delivering up to 1200 W peak per channel with a measured total harmonic distortion (THD) of just 0.02%, it balances powerful output with low distortion. The amplifier accepts a wide AC input range (100–240 V, 50–60 Hz) and has a typical power consumption of 485 W, while its slim rack-friendly dimensions (483 mm × 355 mm × 44.5 mm) make it suitable for tight stage racks and portable PA setups.

Advantages

High peak power per channel and Class D topology provide efficient energy use and reduced heat generation, which helps in long-duration events. The low THD ensures clean audio reproduction even at high output levels, maintaining clarity for vocals and instruments. Its universal AC input supports global touring and diverse installation environments. The compact rack-mount form factor allows straightforward integration into standard 19-inch racks without occupying excessive space.

Suitable for

Key specifications

How to use

Install the amplifier into a standard 19-inch rack or place it on a stable surface with adequate ventilation. Connect audio sources using the appropriate balanced inputs and route outputs to compatible loudspeakers, ensuring speaker impedance and power handling are matched to the amplifier’s output capability. Set gain and level controls conservatively before playback, then adjust to the required sound pressure level while monitoring for clipping. Use the universal AC power connection and verify mains voltage compatibility before powering on.

Recommendations

Allow at least several centimetres of clearance around the amplifier for air circulation, avoid obstructing vents, and use proper speaker cabling with secure connections. For touring or prolonged high-output use, monitor device temperature periodically and maintain conservative gain staging to preserve audio fidelity and prevent overheating.
