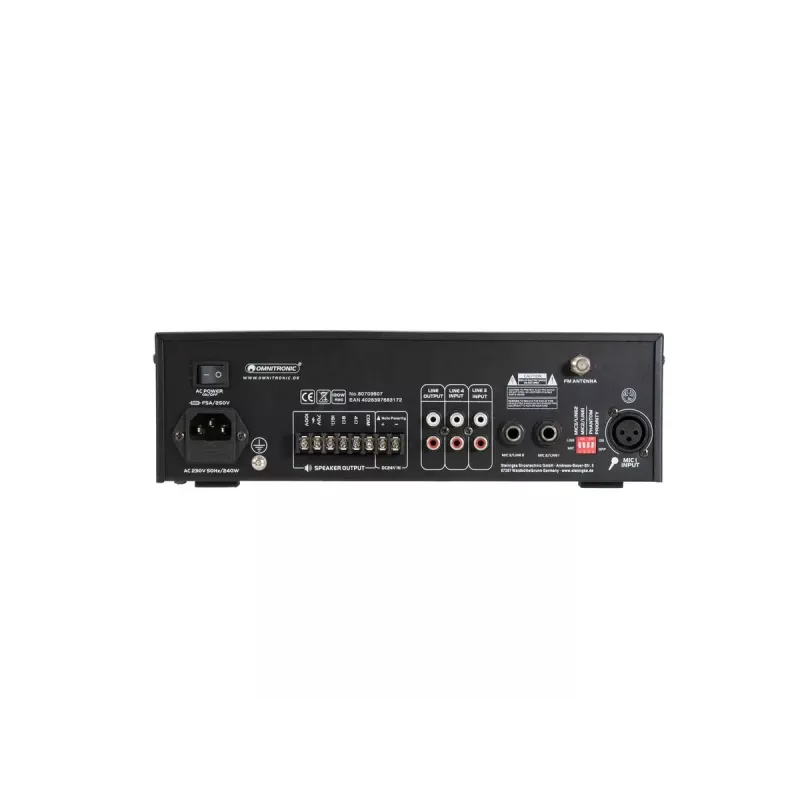

Amplificador de audio Omnitronic 80709607 Performance/Escenario negro

The Omnitronic 80709607 Performance/stage Black audio amplifier is a compact Class D amplifier designed for live performance and stage applications. Delivering peak power of 120 W per channel, it balances power output with energy-efficient operation. The unit accepts a 230 V AC, 50 Hz mains supply and features clamp-style speaker terminals for straightforward connection. Its compact footprint (303 mm width, 220 mm depth, 91 mm height) and a typical power consumption of 240 W make it suitable for installations with limited space where reliable amplification is required.

Advantages

High peak output of 120 W per channel together with Class D efficiency reduces heat generation and lowers energy use compared with older amplifier classes. The clamp terminal connections enable quick and secure speaker hookup without specialized connectors. A compact chassis supports flexible placement in racks, flight cases or tight stage areas, while the standardized 230 V AC power input ensures compatibility with common venue power supplies.

Suitable for

Key specifications

How to use

Place the amplifier on a stable surface or mount it in a compatible equipment rack or flight case using appropriate mounting hardware. Connect the unit to a 230 V AC, 50 Hz mains outlet using an appropriate power cable. Attach speaker cables to the clamp terminals, ensuring correct polarity and secure clamping to prevent loose connections. Connect input sources (mixer, preamp or signal processor) to the amplifier inputs according to the source device output specifications. Power the amplifier on and set input levels and gain staging from the source device to avoid clipping.

Recommendations

Allow adequate ventilation around the amplifier to maintain cooling efficiency; avoid blocking ventilation openings. Use properly rated speaker cables and observe polarity to ensure optimal sound quality. For consistent performance in live environments, set conservative gain levels and monitor for signs of thermal protection or clipping. If used in mobile applications, secure the unit to prevent movement and check all connections before each use.
