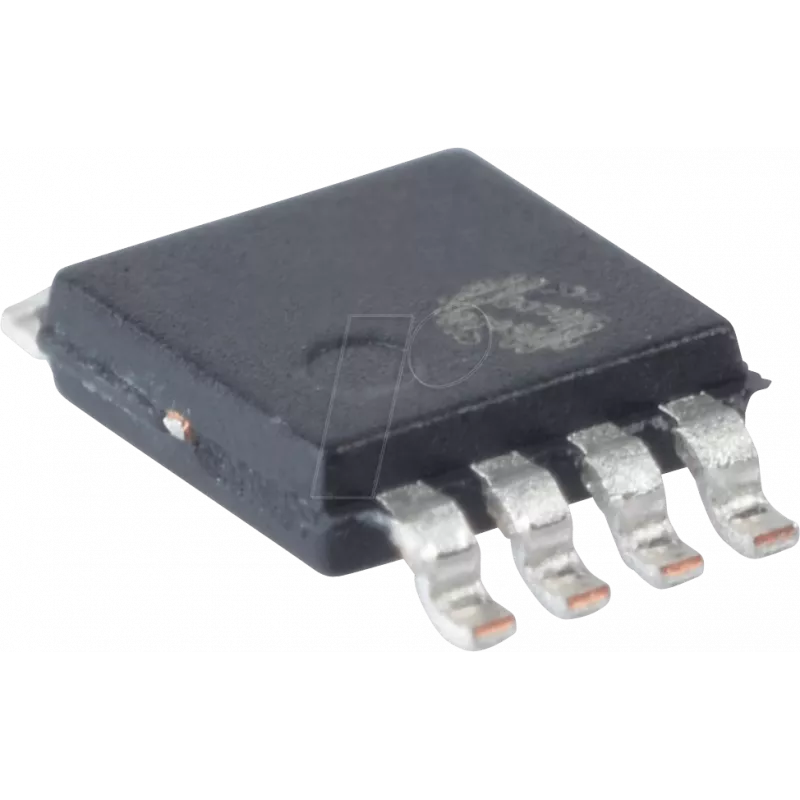

Amplificador operacional de instrumentación Texas Instruments INA118U — Amplificador de instrumentación de precisión en encapsulado SOIC-8

Texas Instruments INA118U is an instrumentation operational amplifier supplied in a SOIC-8 surface-mount package, engineered for accurate differential signal amplification. The device is intended for precision sensor signal conditioning and data acquisition front-ends where stable gain and high common-mode rejection are required. Its package and functionality make it suitable for integration into compact printed circuit boards used in medical instrumentation, industrial measurement systems and other applications requiring low-level signal amplification.

Advantages

INA118U provides high common-mode rejection and stable gain behavior for low-level differential signals, reducing measurement error in environments with varying common-mode voltages. The SOIC-8 surface-mount package enables straightforward PCB assembly and space-efficient designs. As a dedicated instrumentation amplifier, it simplifies front-end circuitry by combining differential input handling and gain setting into a single component.

Suitable for

• Sensor signal conditioning (strain gauges, thermocouples, bridge sensors)
• Data acquisition front-ends and precision measurement circuits
• Medical instrumentation and patient-monitoring front-end stages
• Industrial measurement systems and process-control interfaces

Key specifications

• Instrumentation amplifier topology with differential inputs
• SOIC-8 surface-mount package for PCB-mounted applications
• Designed for precision low-level signal amplification with stable gain
• High common-mode rejection to minimize interference from common-mode voltages

How to use

Place the INA118U on the PCB according to the SOIC-8 footprint and follow recommended layout practices for analog front ends, including short input traces and proper decoupling of supply rails. Configure gain using the external resistor as specified in the device documentation to set the required amplification of the differential input. Connect differential signal sources to the amplifier inputs and route the amplified output to subsequent ADC or processing stages. Observe supply voltage and input common-mode ranges indicated by the manufacturer to ensure correct operation.

Recommendations

For optimal performance, use proper power supply decoupling close to the device, maintain symmetrical routing for differential inputs, and follow the manufacturer's application notes for grounding and layout to preserve high common-mode rejection and measurement accuracy.
