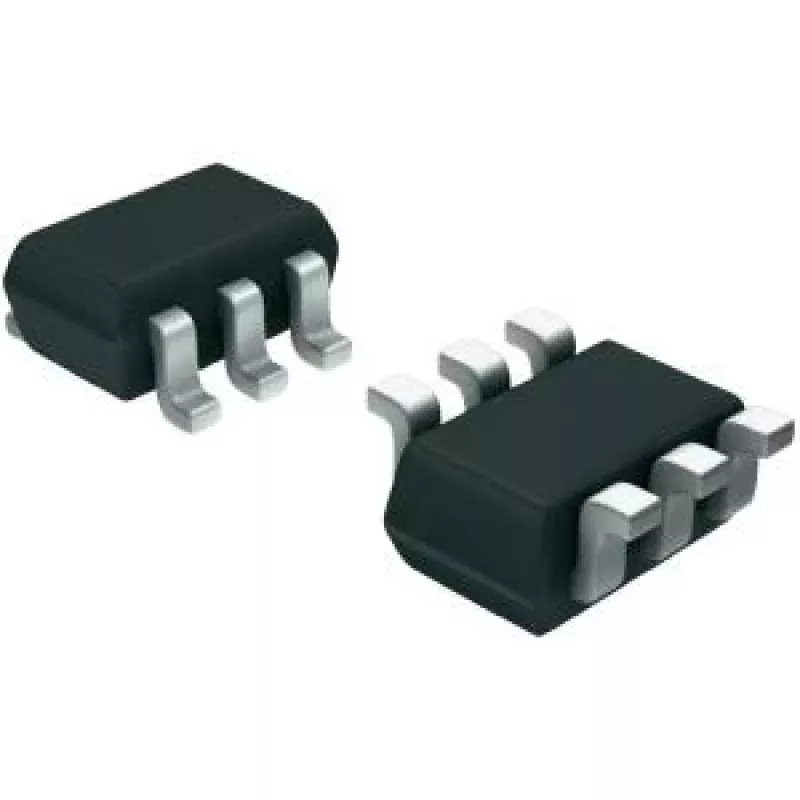

Convertidor analógico-digital ADC Texas Instruments ADS1100A0IDBVT, carcasa SOT-23-6

The Analog-to-Digital Converter ADC Texas Instruments ADS1100A0IDBVT in a SOT-23-6 package is a single-channel precision ADC designed for compact embedded and sensor applications. It converts low-level analog signals into digital data suitable for microcontrollers and data acquisition systems, offering a small footprint and low-power operation for space-constrained designs.

Advantages

This ADC combines single-channel precision conversion with a compact SOT-23-6 package, enabling integration into small PCBs and portable devices. Its low-power characteristics make it suitable for battery-operated systems, and the device provides stable, repeatable measurements for sensor interfacing and monitoring tasks. The straightforward digital output simplifies connection to common microcontroller interfaces.

Suitable for

• Sensor signal digitization in compact embedded systems
• Battery-powered measurement and monitoring devices
• Data acquisition front-ends with limited PCB area
• Temperature, pressure, or current sensing where single-channel conversion is sufficient

Key specifications

• Single analog input channel for one-point conversion
• Low-power operation optimized for portable applications
• SOT-23-6 compact surface-mount package
• Precision measurement suitable for sensor interfacing and monitoring
• Digital output compatible with common microcontroller interfaces

How to use

Place the ADC on the PCB following standard SOT-23-6 footprint guidelines and ensure correct power supply decoupling close to the device. Connect the analog source to the input pin using short, shielded traces where possible to minimize noise. Route the digital output lines to the host microcontroller and configure the host to read the converter’s output according to the device timing and communication method. Observe recommended operating voltage and input ranges to prevent damage and to ensure accurate conversion results.

Recommendations

Use local bypass capacitors and a clean ground plane to reduce noise, and keep analog traces short and separated from high-speed digital lines. For battery-powered designs, enable any available low-power modes and minimize acquisition frequency to conserve energy. Validate measurement accuracy with known reference signals during prototype testing.
