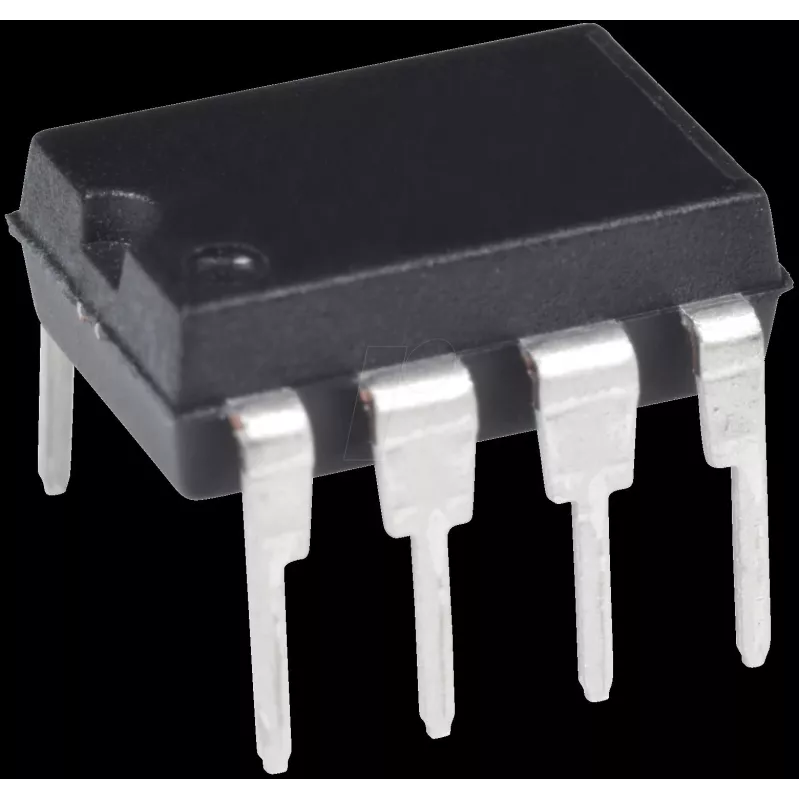

Amplificador operacional Texas Instruments OPA227PA, monocanal, encapsulado DIP-8

The Texas Instruments OPA227PA is a single-channel precision operational amplifier offered in a DIP-8 package. Designed for accurate analog signal conditioning, this op amp delivers low offset voltage and low drift performance suitable for demanding measurement and control circuits. The through-hole DIP-8 format simplifies prototyping and replacement in instrument panels and hobbyist or educational builds, while the device's input and output characteristics support precision sensor interfaces and active filter stages.

Advantages

The OPA227PA provides low input offset and low input bias currents, enabling precise amplification of small signals with minimal error. Its low noise characteristics and stable DC performance reduce measurement uncertainty over time and temperature changes. The DIP-8 package facilitates easy handling, manual assembly and testing on breadboards or through-hole PCBs. The amplifier's stable operation in a variety of single-supply and dual-supply configurations supports flexible circuit design.

Suitable for

• Sensor signal conditioning (thermocouples, bridge sensors, strain gauges)
• Precision active filters and integrators
• Low-noise preamplifiers for instrumentation
• Laboratory prototypes and educational electronics projects
• Audio circuits requiring low distortion and low noise

Key specifications

• Single operational amplifier channel in a DIP-8 through-hole package
• Precision low input offset voltage suitable for high-accuracy measurement
• Low input bias current and low noise for small-signal amplification
• Stable DC performance with low drift over temperature
• Compatible with single-supply and dual-supply voltage configurations

How to use

Install the OPA227PA into a DIP-8 socket or solder it to a through-hole PCB following standard anti-static precautions. Provide appropriate power rails according to your circuit design (single or dual supply), and include decoupling capacitors close to the supply pins to maintain stability. Configure the amplifier in the desired topology—such as non-inverting, inverting, differential, or active filter—observing recommended feedback and input resistor values for the target gain and bandwidth. Verify input common-mode and output swing limits relative to the chosen supply rails during circuit design and testing.

Recommendations

For best performance, place bypass capacitors (for example, 0.1 µF ceramic) near the supply pins and minimize source impedance at the inputs. When designing precision measurement stages, use low-drift resistors and a stable reference to fully benefit from the amplifier's low offset and low drift characteristics. For prototyping, use a socket to allow easy replacement and measurement; for final assemblies, follow proper soldering and thermal-management practices.
