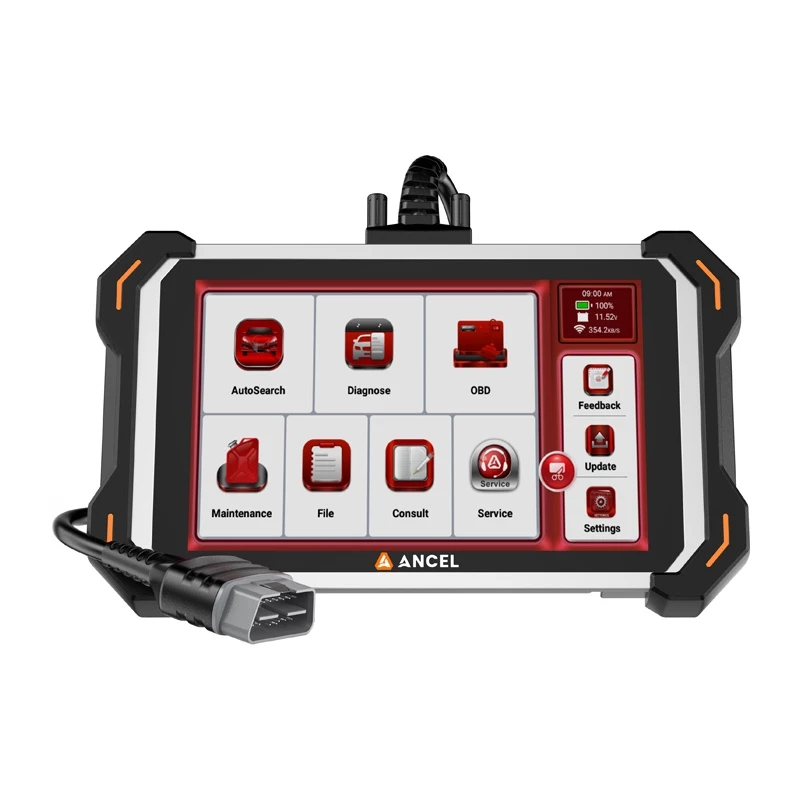

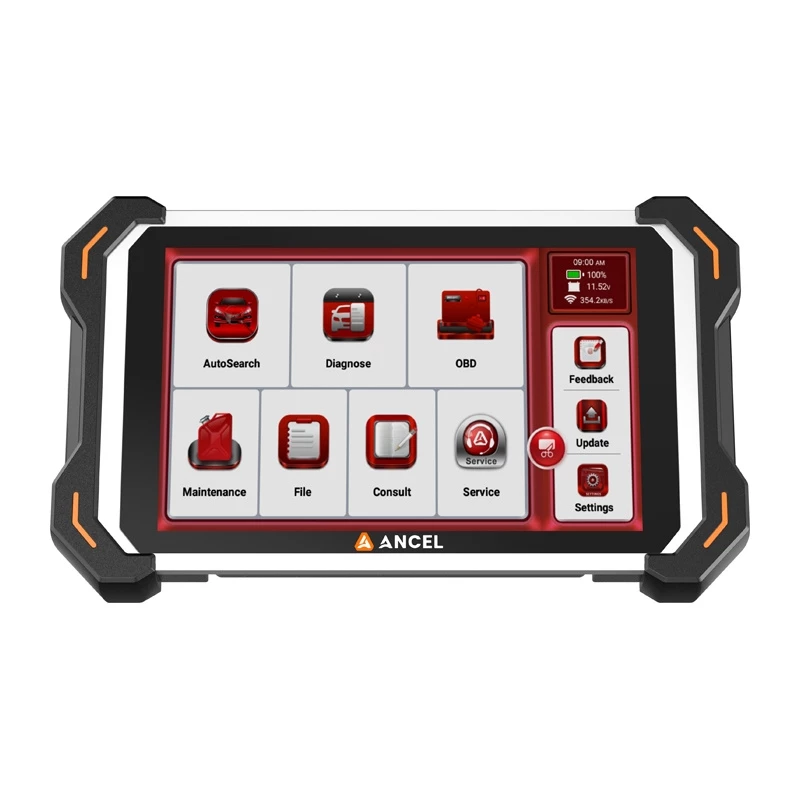

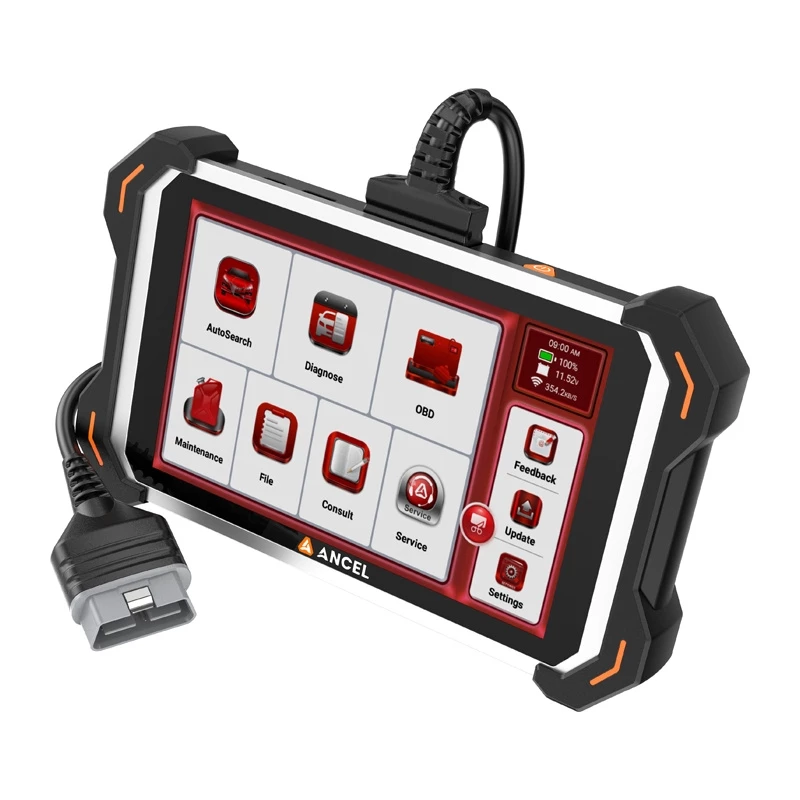

ANCEL DS600 Elite Escáner de diagnóstico OBD2

The ANCEL DS600 Elite is an OBD2 diagnostic scanner with an 8-inch color touchscreen, Android 10.0, and a wired OBD connection. It provides full system diagnostics, DTC reading and clearing, real-time parameter monitoring, actuator tests, and coding and reset functions. With 4 GB of RAM and 64 GB of ROM, it supports smooth operation and fast processing of diagnostic data.

Key features

• AutoSearch automatically reads the vehicle’s VIN and identifies make, model, and model year
• OBD diagnostics with real-time data monitoring for engine operation, fuel efficiency, emission levels, and sensor readings
• File function saves diagnostic data, reports, data streams, and images
• Consult feature provides access to the Repair Info database with DTC libraries, compatible vehicle lists, and instructions
• Stable wired OBD connection for data transmission
• 8-inch color touchscreen (1280x800 px)
• Android 10.0 operating system
• 4 GB RAM and 64 GB ROM
• 4150 mAh battery
• Supports 28 languages

Specifications

• Brand: Ancel
• Model: DS600 Elite
• Device type: OBD2 diagnostic scanner
• Screen: 8-inch color touchscreen, 1280x800 px
• Operating system: Android 10.0
• RAM: 4 GB
• ROM: 64 GB
• Battery capacity: 4150 mAh
• Bluetooth: 5.0
• Wi-Fi: 2.4 GHz / 5.0 GHz
• USB-C input: 5 V DC / 2.5 A
• OBD input: 9–18 V DC / 1.2 A
• Connection type: Wired OBD connection
• Number of supported languages: 28
• Diagnostics: Full system diagnostics
• Supported protocols: SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN, CAN-FD, DOIP
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
