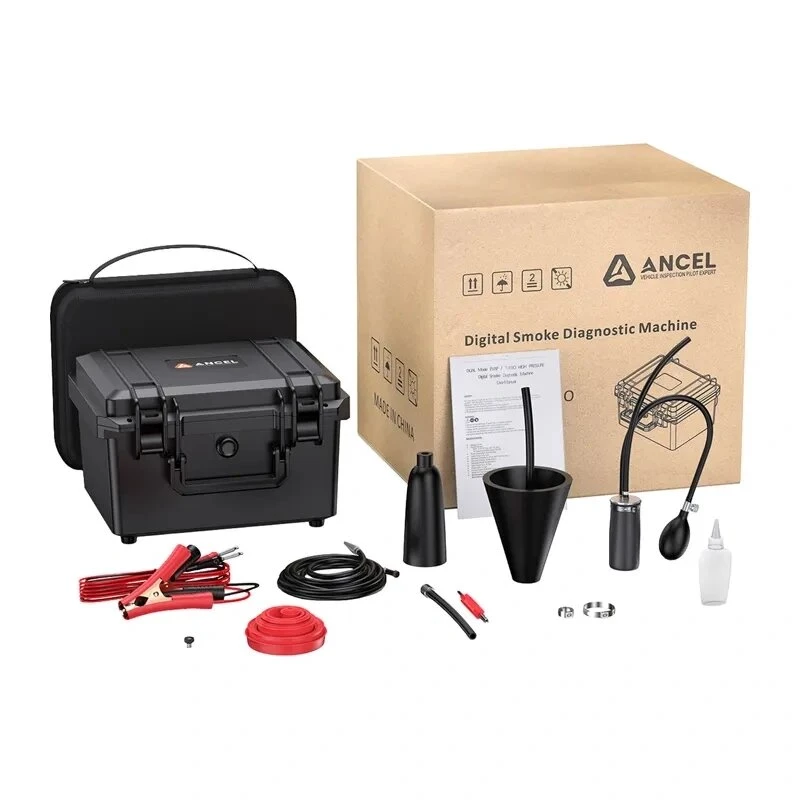

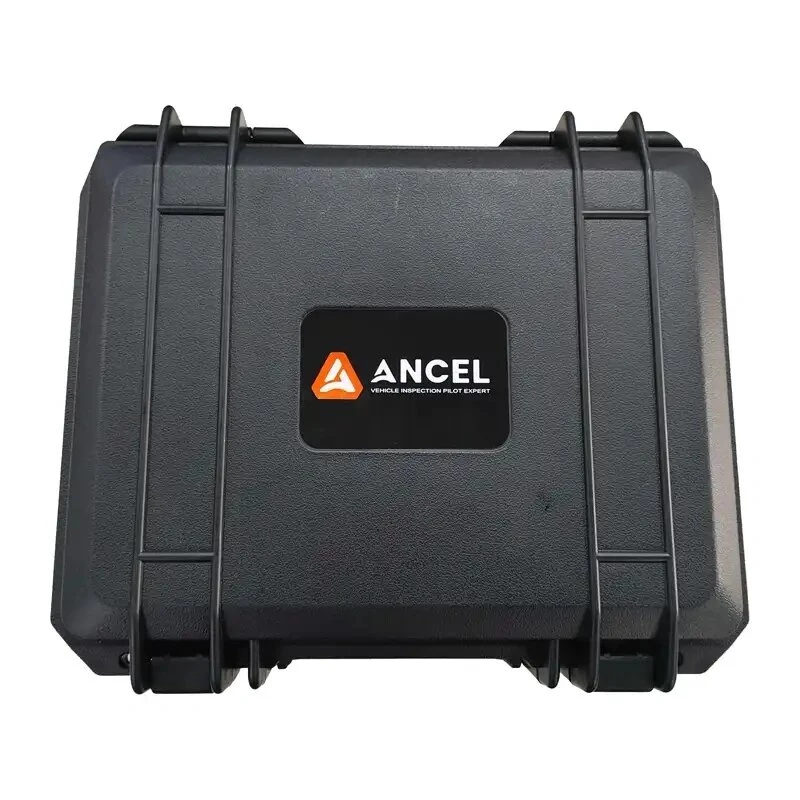

ANCEL L8000 detector de fugas de diagnóstico

The ANCEL L8000 is a professional automotive leak detector equipped with a low-pressure EVAP mode and a high-pressure Turbo mode. It enables smoke tests and pressure drop tests, helping to quickly detect leaks in intake or exhaust systems. The built-in pump generates up to 20 psi, and the smoke output of 6–8 l/min allows for efficient diagnostics of various vehicle systems.

Key features

• Turbo high-pressure mode and EVAP low-pressure mode
• Smoke test and pressure drop test
• Professional Mode with preset configurations or Custom Mode for manual test pressure setting
• 4-inch color LCD screen with function buttons
• Self-test function for device airtightness
• Settings menu for language, pressure units, and audible alert
• Detects leaks in intake and exhaust systems, vacuum systems, turbochargers, hoses, and gaskets
• Diagnoses leaks under the dashboard or in the EVAP system
• Compatible with a wide variety of vehicles, such as passenger cars, trucks, and more (applications vary by vehicle type)

Specifications

• Brand: Ancel
• Model: L8000
• Device type: Automotive system leak detector
• Display: 4-inch screen
• Power supply: 12 V DC
• Current in Smoke mode: < 6.5 A
• Smoke output: 6–8 l/m
• Output pressure: EVAP: 0.44–0.5 psi (30–35 mbar); Built-in HP pump: max. 20 psi (138 kPa)
• Flow rate: < 8 l/min
• Power cord length: Approx. 2.5 m
• Smoke hose length: Approx. 2.5 m
• Supported functions: Smoke test, pressure drop test, device self-diagnostics
• Air source: Built-in pump
• Languages: English, Spanish, Portuguese, German, French, Italian, Finnish, Polish, Turkish
• Dimensions: 280 x 250 x 260 mm
• Weight: 4.75 kg
• Operating temperature: From -17°C to 60°C
