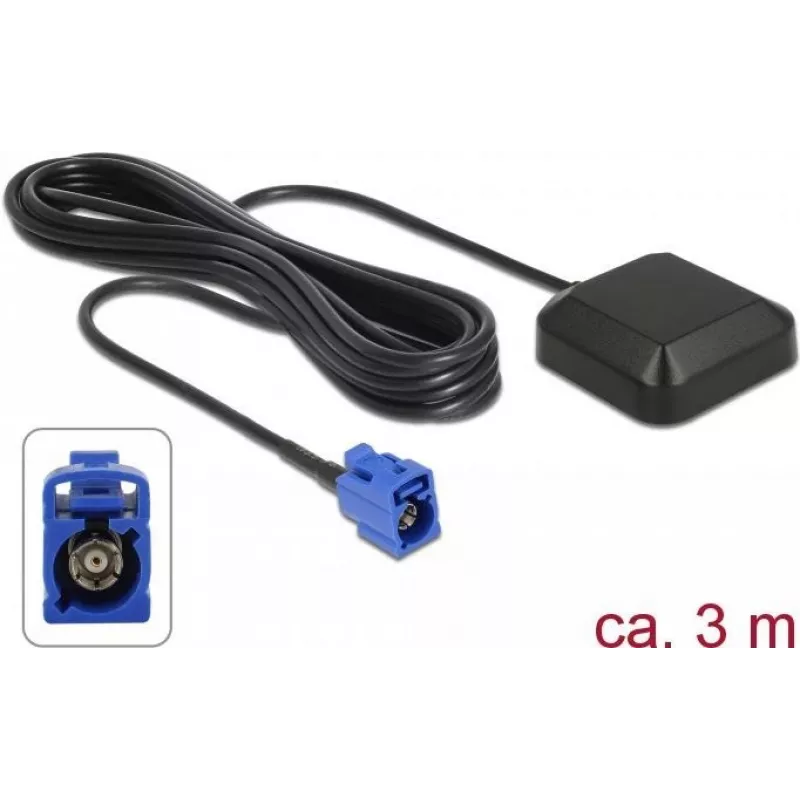

Navilock NL-69AT antena activa GNSS, conector hembra FAKRA C, RG 174/U 3 m, para exteriores

The Navilock NL-69AT is an active GNSS antenna with a FAKRA C connector and a 3 m RG-174 U cable, designed for outdoor use. It features a waterproof IP67 rating and operates on a DC power supply.

Key features

• Active GNSS antenna
• FAKRA C connector
• 3 m RG-174 U cable
• Waterproof (IP67)
• Outdoor use

Specifications

• Brand: Navilock
• MPN: 60511
• Frequency band: 1.5754200 GHz
• Impedance: 50 Ohm
• Maximum gain: 27 dBi
• Antenna connector type: FAKRA C
• Product colour: Black
• Housing material: Acrylonitrile butadiene styrene (ABS)
• International protection (IP) code: IP67
• Cable length: 3 m
• Cable type: RG-174 U
• Purpose: Outdoor
• Power source: DC
• Power consumption: 15 mA
• Input voltage: 3 - 5.5 V
• Width: 38 mm
• Depth: 40.5 mm
• Height: 12.5 mm
• Weight: 150 g
• Packaging type: Polybag
• Quantity per pack: 1 piece(s)
