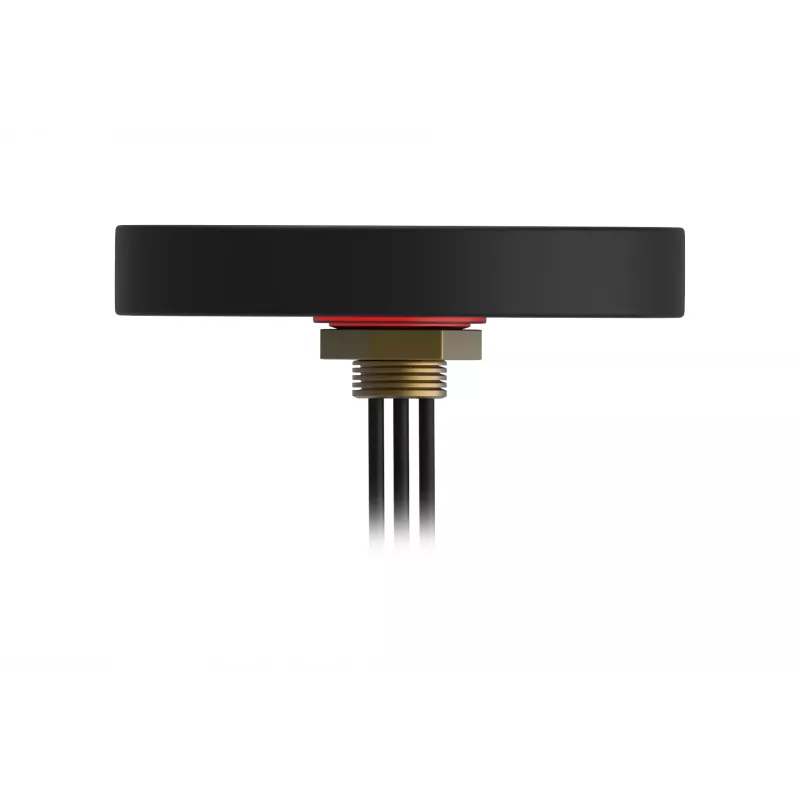

Teltonika PR1UCP25 antena de techo combinada MIMO-LTE/GPS, cable de 3m, conector SMA, IP67

For fleet vehicles, mobile routers, and remote monitoring stations, the Teltonika PR1UCP25 antenna delivers reliable LTE and GPS connectivity in a single, rugged roof-mount unit. It combines two MIMO LTE antennas and a high-performance GPS antenna, all with 3-meter RG174 cables and SMA male connectors for straightforward installation.

Key specifications

• Combo MIMO LTE/GPS antenna with 2x LTE and 1x GPS ports
• LTE frequency: 698-960 MHz and 1710-2700 MHz; GPS: 1575.42 ± 3 MHz
• LTE peak gain: 3 dBi; GPS LNA gain: 28 ± 2 dB
• VSWR: < 2.0 (LTE), < 1.5 (GPS); impedance: 50 Ohm

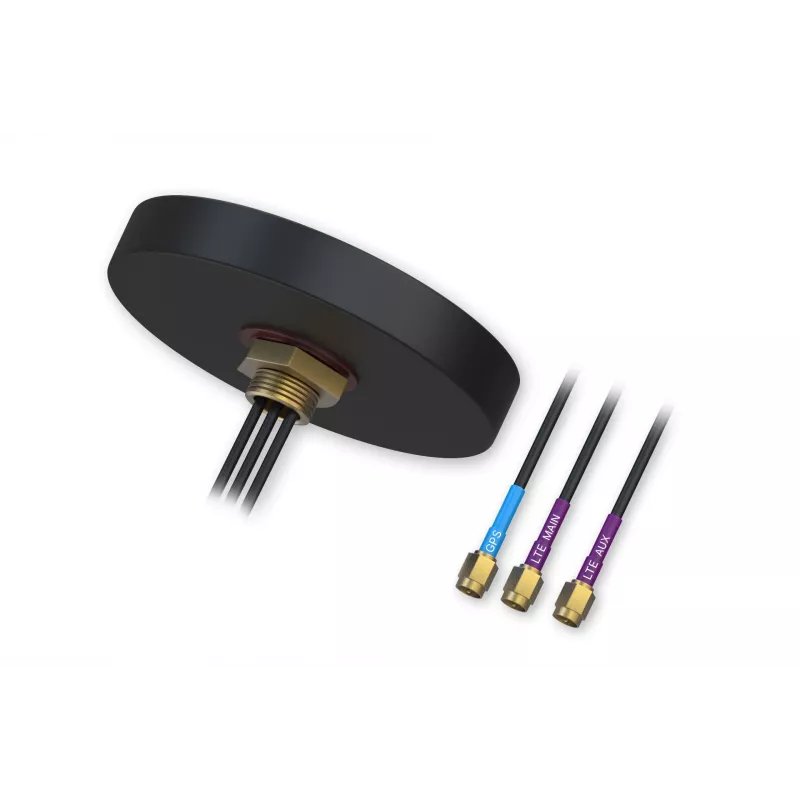

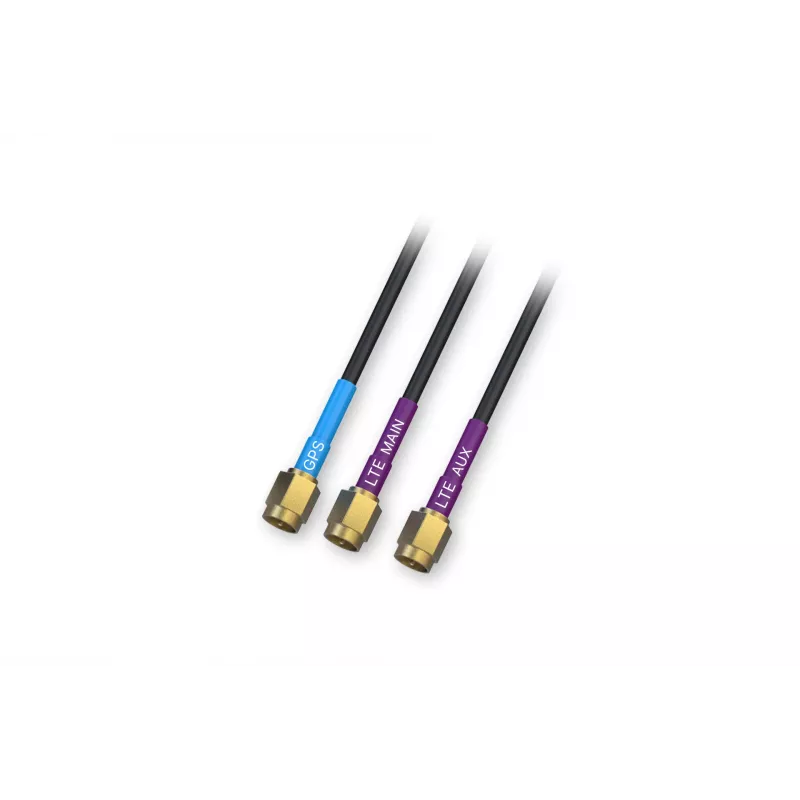

• Connectors: 3x SMA male (2 LTE, 1 GPS); cable length: 3 m each
• Cable type: RG174; mounting: screw-on roof mount
• IP67 rated, UV-resistant ABS housing; operating temperature: -40°C to +85°C

Why choose it

This antenna is engineered for dependable performance in demanding mobile environments. The MIMO LTE configuration improves data throughput and signal reliability, while the integrated GPS antenna with built-in LNA ensures accurate positioning. The IP67 rating and UV-stable housing withstand harsh weather, making it suitable for year-round outdoor use on vehicles or fixed installations.

Ideal use cases

• Fleet management and vehicle tracking systems
• Mobile routers and gateways in cars, buses, or trains
• Remote monitoring and telemetry stations
• Marine and agricultural applications requiring robust LTE/GPS

Good to know

Installation is simplified with the screw-mount base and pre-terminated SMA connectors. The antenna is compatible with Teltonika routers and other devices with SMA female ports. For best performance, mount on a metal ground plane at least 20 cm in diameter. The GPS LNA operates from 2.2 to 5.0 V DC, typically supplied by the connected device.
