Antena direccional Panorama Antennas WMM8G-7-38-5SP

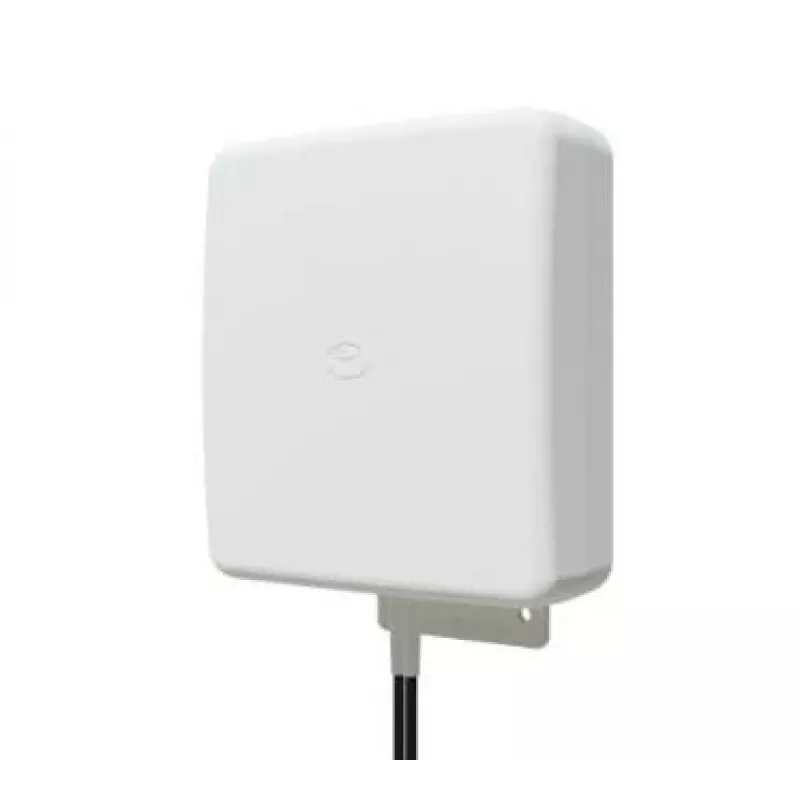

The Panorama Antennas WMM8G-7-38-5SP is a compact, high-gain directional 2x2 MIMO antenna for boosting 4G and selected 5G signals. It combines two separately fed wideband radiating elements in a single weatherproof housing, provides client-side MIMO and diversity support, and includes wall and mast mounting brackets. A fitted 5 m low-loss double-shielded twin cable with SMA male connectors reduces exposed joints and simplifies installation and cable management.

Advantages

The antenna offers a maximum gain of 9 dBi across the 0.698–0.96 GHz and 1.71–3.8 GHz bands, 50 Ω impedance and up to 50 W power handling. Its rugged, weatherproof enclosure and compact dimensions (180 × 94 × 230 mm) make it suitable for outdoor wall mounting. Supplied mounting hardware and pre-fitted cable reduce installation time and minimize signal loss at connectors.

Suitable for

• Improving cellular reception for 4G LTE and some 5G deployments
• Client-side MIMO/diversity in fixed wireless CPE and routers
• Wall- or mast-mounted installations at homes, offices, and small sites

Key specifications

• Model: Panorama Antennas WMM8G-7-38-5SP
• Frequency band: 0.698–0.96 / 1.71–3.8 GHz
• Maximum gain: 9 dBi
• Impedance: 50 Ω
• Connector: SMA male (fitted twin cable)
• Power handling: 50 W
• Colour: White
• Dimensions (W × D × H): 180 × 94 × 230 mm
• Included cable length: 5 m low-loss double-shielded twin cable

How to use

Mount the antenna on a wall or mast using the supplied brackets, orienting the main beam toward the desired base station or coverage area. Connect the pre-fitted SMA male twin cable to the corresponding inputs on your router or CPE, maintaining separation between the two feeds as required by your equipment for MIMO operation. Secure all cables and ensure connectors are protected from moisture where possible.

Recommendations

For best performance, place the antenna as high as practical with clear line-of-sight to the nearest cell tower and avoid obstructions. Verify that your router or modem supports external 2x2 MIMO antenna connections and match the antenna polarisation and connector types accordingly.
