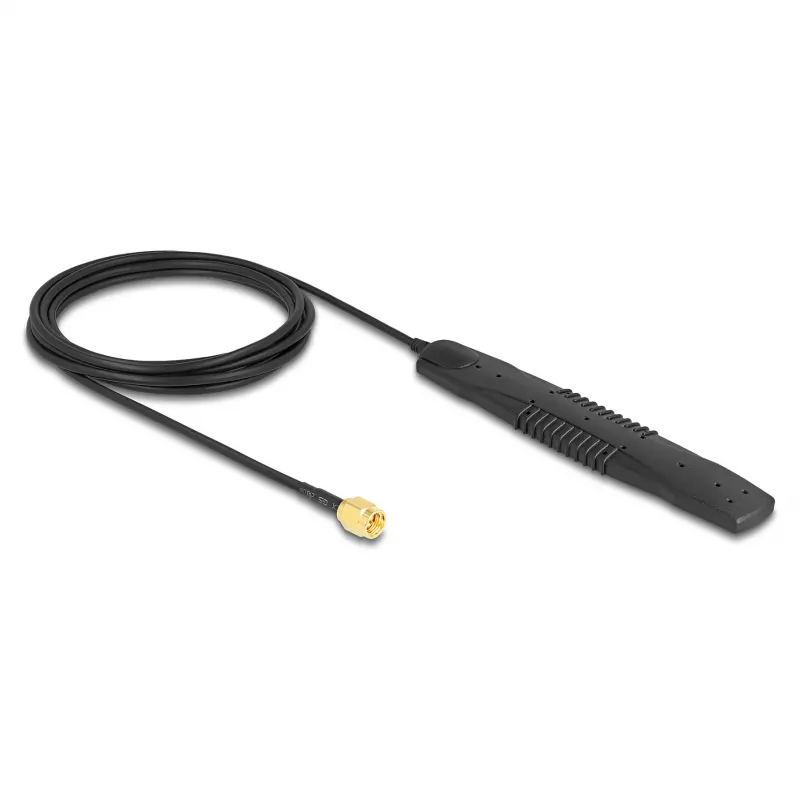

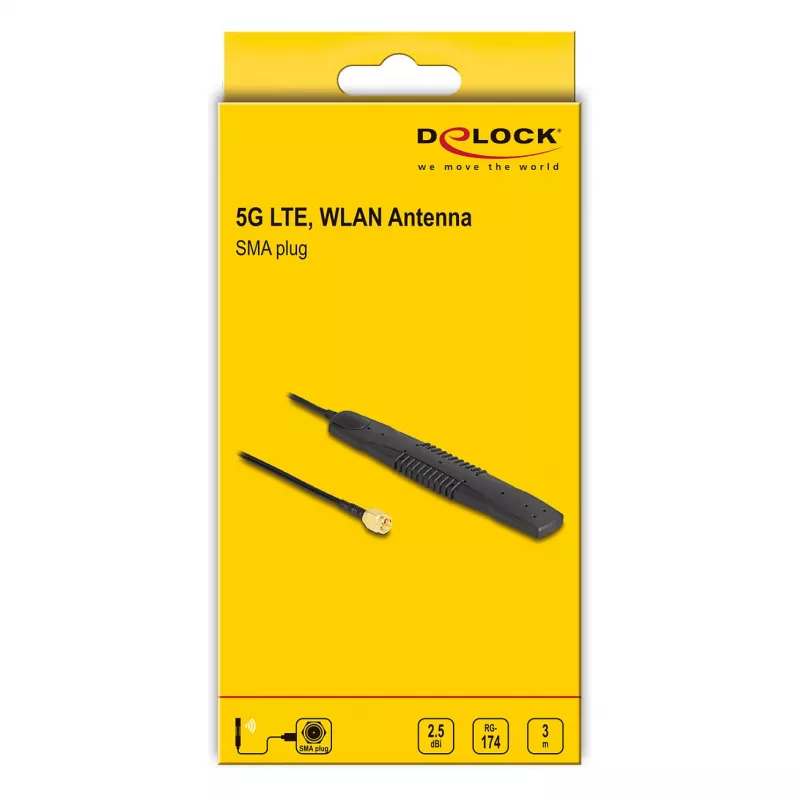

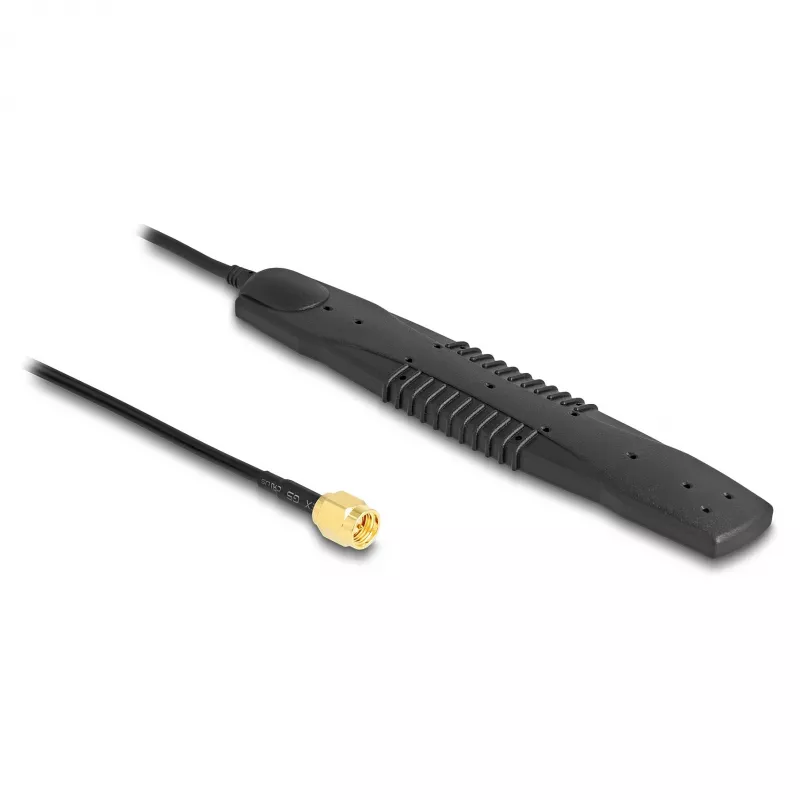

Antena omnidireccional DeLOCK 90101 2,5 dBi SMA 0,6-6 GHz

The DeLOCK 90101 omni-directional antenna offers multi-band reception for indoor use, covering frequencies from 0.6 to 0.96 GHz and 1.71 to 6 GHz. With a gain of 2.5 dBi and an SMA connector, it supports GSM, CDMA, GPRS, UMTS, LTE, 5G low band (Sub-6 GHz), Bluetooth, WiFi/WLAN, Zigbee and ISM applications. The antenna's compact dimensions (22.8 mm × 129.5 mm × 7 mm) and a VSWR of 2.0:1 make it suitable for a variety of network accessory installations.

Advantages

The antenna provides broad multi-standard compatibility across cellular and short-range wireless protocols, enabling a single indoor antenna to serve multiple radio systems. Its omni-directional pattern and 2.5 dBi gain offer balanced coverage for general reception needs, while the SMA connector ensures easy connection to routers, gateways and modems. Small physical size allows installation in confined spaces without significant visual impact.

Suitable for

Key specifications

How to use

Mount the antenna indoors near the device requiring improved reception and screw the SMA connector onto the device's SMA port. Orient the antenna vertically for omnidirectional coverage and position it away from large metal objects to minimise signal obstruction. Check the connected device's settings to ensure the external antenna is enabled if required.

Recommendations

For optimal performance, place the antenna as high as practical and experiment with placement to find the best reception point; avoid enclosing it in metal cabinets and keep it clear of strong RF sources.
