Antena omnidireccional DeLOCK 12504

The DeLOCK 12504 omni-directional antenna supports operation in the 868 MHz band for indoor and outdoor use. It provides an 8 dBi maximum gain with vertical polarization and a 50 Ω impedance, designed for general wireless communication applications. The antenna has a depth of 147.4 mm and a diameter of 26 cm for stable performance across its specified frequency range.

Advantages

The omni-directional radiation pattern delivers broad area coverage without the need to aim the antenna. With 8 dBi gain and 50 Ω impedance, the antenna is compatible with common radio equipment and receivers. Its construction allows deployment both inside and outside buildings for flexible installation options.

Suitable for

• Wireless IoT devices and sensors operating in the 868 MHz band
• Short- to medium-range telemetry and data transmission
• Indoor and outdoor wireless coverage extension

Key specifications

• Model: DeLOCK 12504
• Antenna type: Omni-directional
• Gain (max): 8 dBi
• Frequency band: 868 MHz
• Polarization: Vertical
• Impedance: 50 Ω

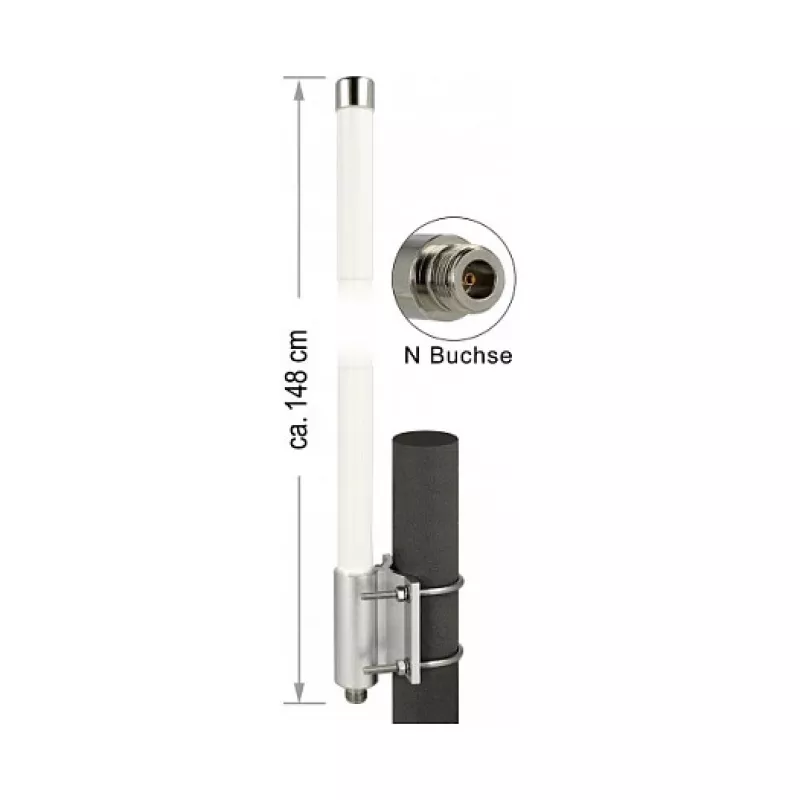

• Dimensions: depth 147.4 mm, diameter 26 cm
• Brand: DELOCK
• MPN: 12504
• EAN: 4043619125043

How to use

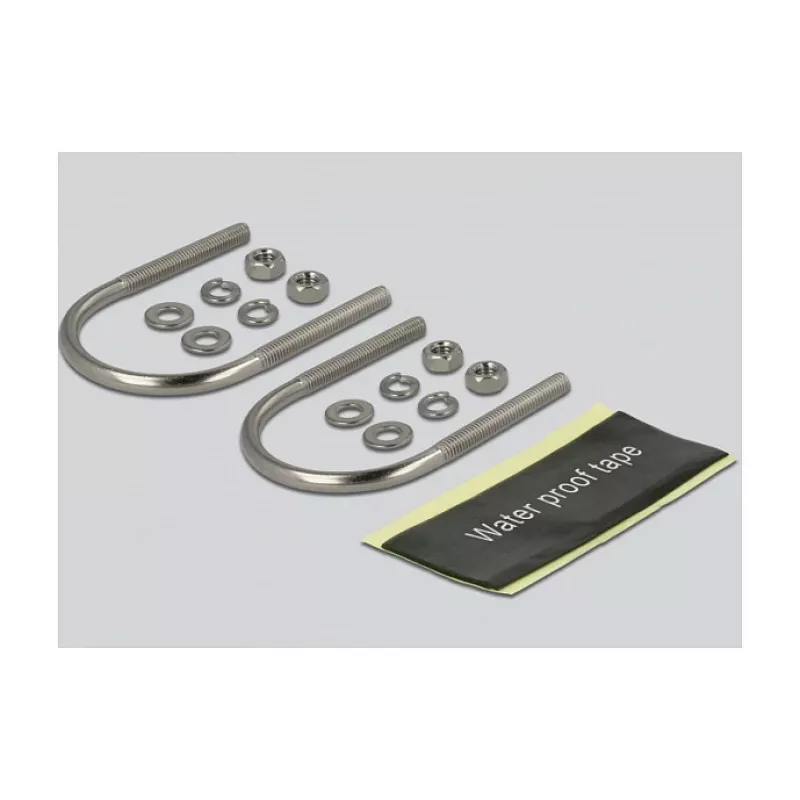

Install the DeLOCK 12504 in a location that offers clear line of sight to the coverage area when possible. Mount the antenna using compatible fixtures and connect it to the radio equipment with a matching 50 Ω cable and connector. Verify polarization alignment with the device being used and secure all connections to prevent moisture ingress for outdoor installations.

Recommendations

For best results, place the antenna at an elevated position and avoid obstructions directly in front of it. Use appropriate weatherproofing measures for permanent outdoor installations and ensure cable and connector compatibility with 50 Ω systems.
