Antena parabólica CORAB 80 cm gris oscuro (ASC-800M-C) - parabólica offset para satélite

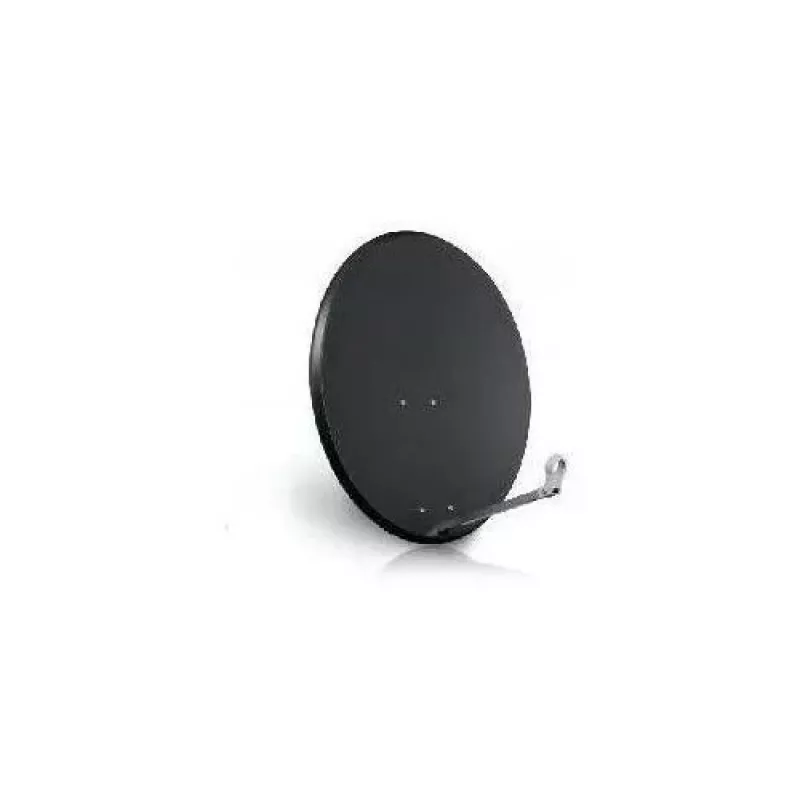

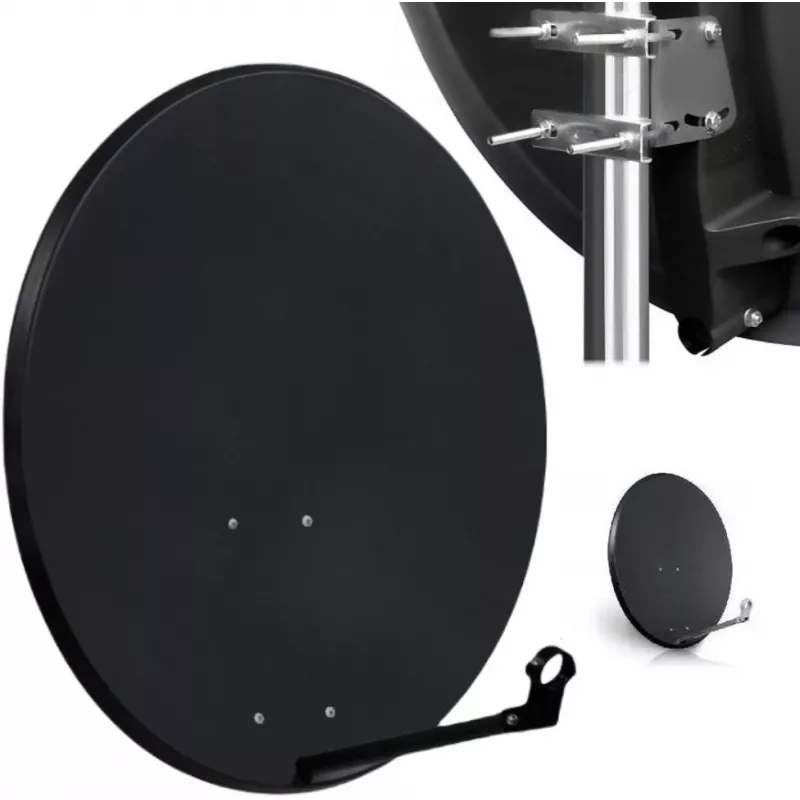

The CORAB 80 cm Dark Antenna Dish (ASC-800M-C) is a high-performance offset parabolic satellite dish designed for reliable Ku-band reception. Constructed from galvanized steel with a durable polyester powder coating, this dish offers excellent corrosion resistance and long-lasting performance. Its dark grey (anthracite) colour blends seamlessly with modern architecture, making it an ideal choice for residential and commercial installations.

Advantages

This antenna dish provides a high gain of 38.5 dB at 11.7 GHz, ensuring strong signal reception even in challenging weather conditions. The offset design minimizes snow and rain accumulation, while the universal wall/pole mount allows for flexible installation. With an operational wind load capacity of up to 90 km/h and survival up to 120 km/h, it is built to withstand harsh environments.

Suitable for

• Satellite TV reception (Ku-band)
• Residential and commercial satellite installations
• Replacement or upgrade of existing satellite dishes

Key specifications

• Dish Diameter: 80 cm (800 mm)
• Material: Galvanized Steel with Polyester Powder Coating
• Colour: Dark Grey (Anthracite)
• Antenna Type: Offset Parabolic
• Frequency Range: 10.7 - 12.75 GHz (Ku-band)
• Gain: 38.5 dB (at 11.7 GHz)
• Offset Angle: 26 degrees
• F/D Ratio: 0.6
• LNB Clamp Diameter: 40 mm
• Elevation Adjustment: 10° - 60°
• Azimuth Adjustment: 360° (with pole mount)
• Wind Load (Operational): 90 km/h
• Wind Load (Survival): 120 km/h
• Operating Temperature: -40°C to +60°C

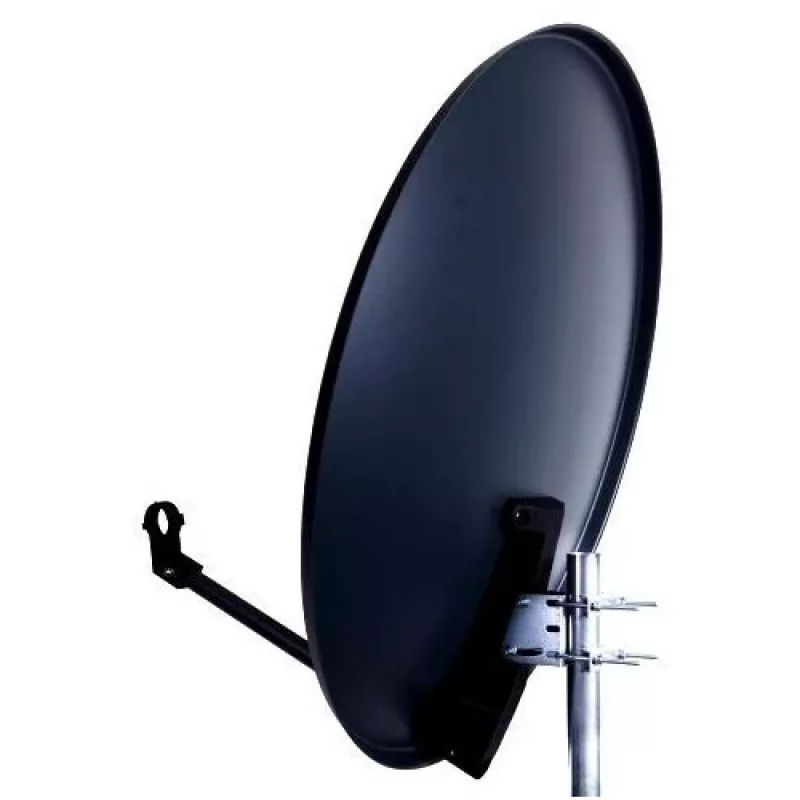

• Mounting Type: Wall/Pole Mount (Universal)

Recommendations

For optimal performance, pair this dish with a compatible LNB (Low-Noise Block downconverter) and ensure proper alignment. Professional installation is recommended for best results.
