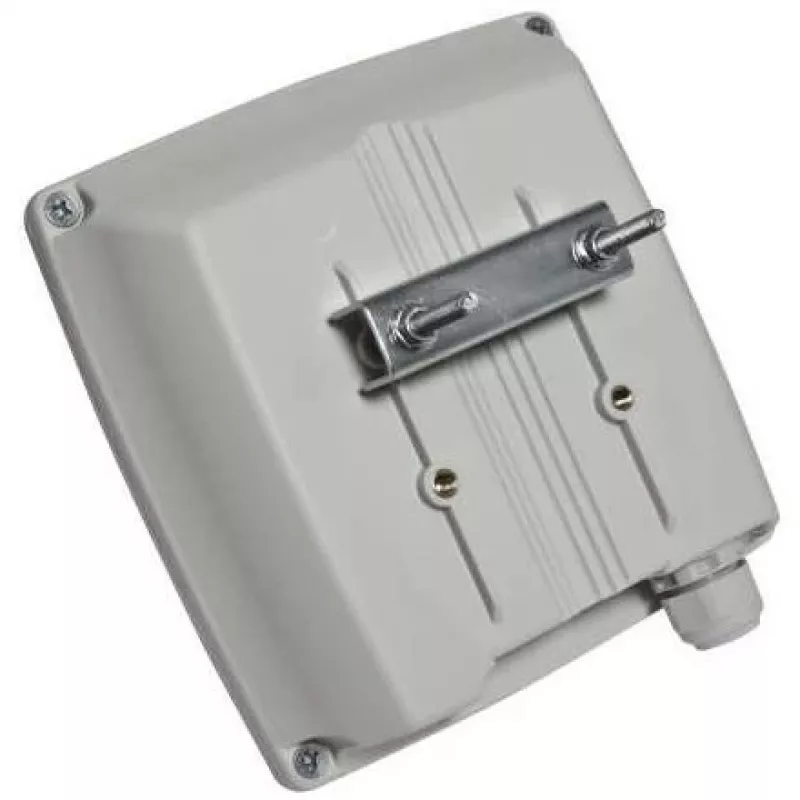

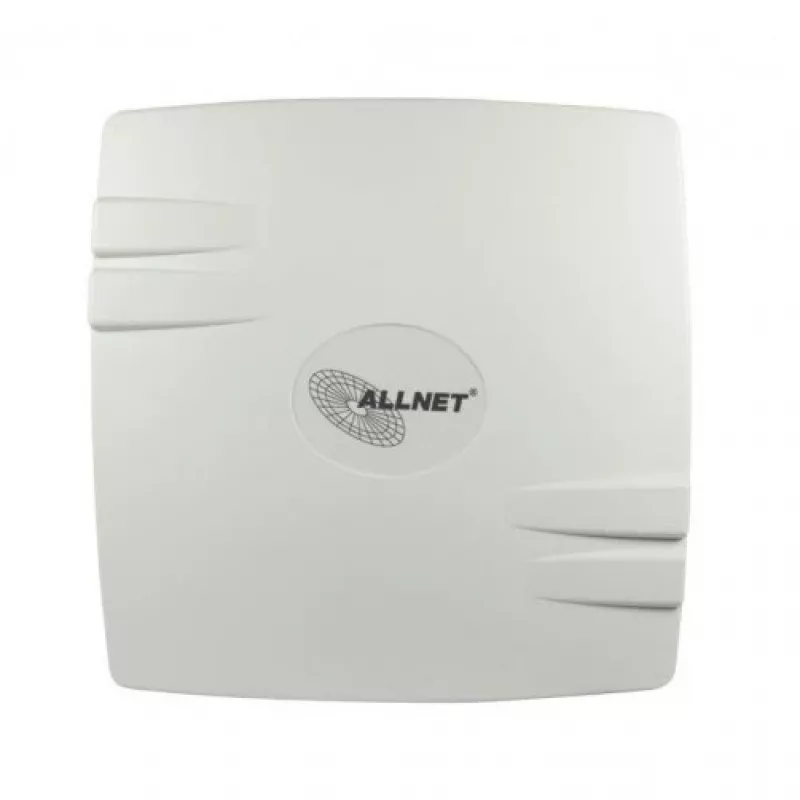

Antena sectorial ALLNET ANT-58-1T1R-PATCH-185

The ALLNET ANT-58-1T1R-PATCH-185 is a compact sector antenna designed for wireless networks operating in the 5.15–5.85 GHz frequency range. With a maximum gain of 10 dBi, 50 Ω impedance and an N-type female connector, this antenna is intended to improve signal directivity and coverage while maintaining a low profile and simple installation. Its small footprint (180 mm x 45 mm x 180 mm) and white finish make it suitable for both indoor and outdoor mounting where unobtrusive appearance is preferred.

Advantages

The antenna delivers a focused radiation pattern and a 10 dBi gain that helps extend the effective range and signal stability of access points and client devices in the 5 GHz band. The 50 Ω impedance matches typical radio equipment, and the N-type female connector provides a secure RF connection. Its compact dimensions and lightweight construction simplify mounting on walls, masts or enclosures without requiring significant space or specialized hardware.

Suitable for

• Enhancing outdoor or indoor Wi‑Fi coverage in the 5 GHz band
• Point-to-multipoint sector deployments for small to medium-sized areas
• Integrating with access points, CPEs or routers that accept N-type female connectors
• Upgrading existing networks where increased directivity and gain are needed

Key specifications

• Frequency band: 5.15–5.85 GHz
• Antenna gain (max): 10 dBi
• Impedance: 50 Ω
• Connector type: N-type female
• Maximum power handling: 10 W
• Dimensions: 180 mm × 45 mm × 180 mm
• Colour: White

How to use

Mount the antenna on a suitable bracket, mast or wall surface at a position that favours line-of-sight to the intended coverage area. Connect the antenna to RF equipment using an appropriate low-loss coaxial cable terminated with the matching N-type male connector. Align the antenna to point toward the service area for optimal directivity; small adjustments to azimuth and elevation can improve signal strength. Ensure the connected radio device is configured for operation in the 5.15–5.85 GHz frequency range and that transmit power remains within the antenna’s 10 W rating.

Recommendations

For best results, use the ANT-58-1T1R-PATCH-185 with compatible 5 GHz capable radios and low-loss coaxial cable. Place the antenna at an elevation clear of major obstructions and away from large metallic surfaces that could distort the radiation pattern. Verify connector torque and weatherproof any outdoor joints to maintain long-term performance.
