Antena direccional Poynting A-XPOL-0002-V3-02 11 dBi conector N

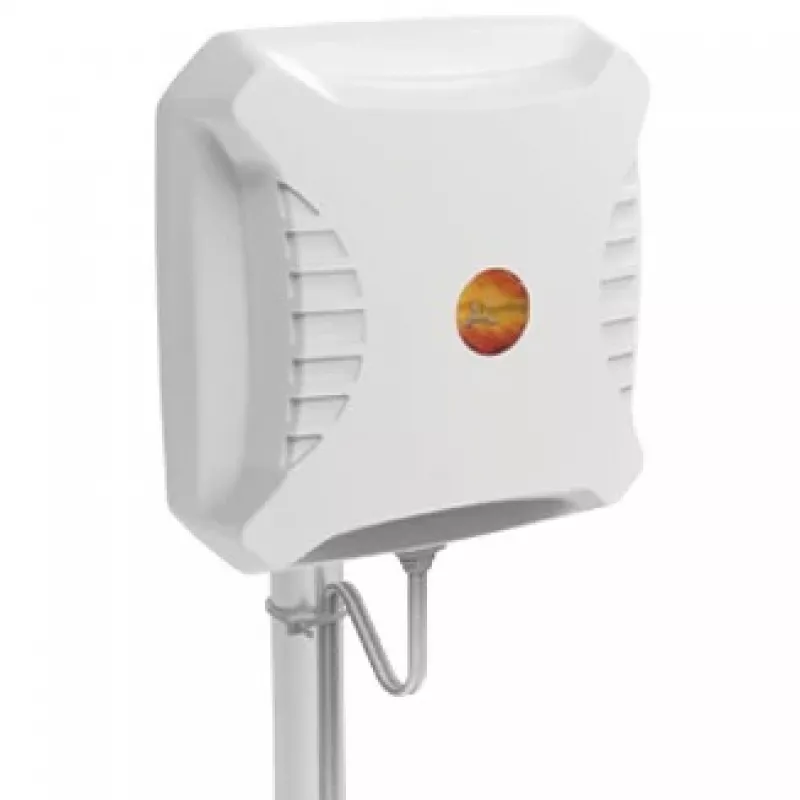

The Poynting XPOL-2-5G (A-XPOL-0002-V3-02) is a directional cross-polarised 2×2 MIMO antenna with an 11 dBi peak gain, designed for focused cellular reception across 2G, 3G, 4G and 5G networks. The third-generation V3 model retains the familiar external enclosure of the previous V2 unit while using redesigned internal metamaterial elements and a new radiator configuration to extend bandwidth and improve gain and radiation control. The antenna covers the key cellular ranges 698–960 MHz, 1700–2170 MHz, 2300–2700 MHz and the newer 3400–3800 MHz bands and is supplied with an N-type female connector in a white enclosure.

Advantages

The V3 uses advanced metamaterials and an updated radiator design to deliver higher gain—around 3 dB improvement in the 1700 MHz and 2.7 GHz ranges compared with the V2—and tighter, well-controlled radiation patterns for improved directional performance. Inclusion of the 3400–3800 MHz band adds 5G-ready capability that the V2 did not cover. The antenna’s directional characteristics make it effective at enhancing signal strength where focused connectivity is required.

Suitable for

• Improving cellular reception for fixed wireless access and rural or weak-signal locations
• Point-to-multipoint or point-to-point links requiring directional 2×2 MIMO
• 5G deployments that use the 3400–3800 MHz band
• Business or residential installations needing a white, outdoor directional antenna with N-type connector

Key specifications

• Model: Poynting A-XPOL-0002-V3-02 (XPOL-2-5G V3)
• Peak gain: 11 dBi
• Frequency bands: 698–960 MHz; 1700–2700 MHz (1700–2170 and 2300–2700 MHz); 3400–3800 MHz
• Polarisation: Cross polarised, 2×2 MIMO
• Connector: N-type female
• Colour: White

How to use

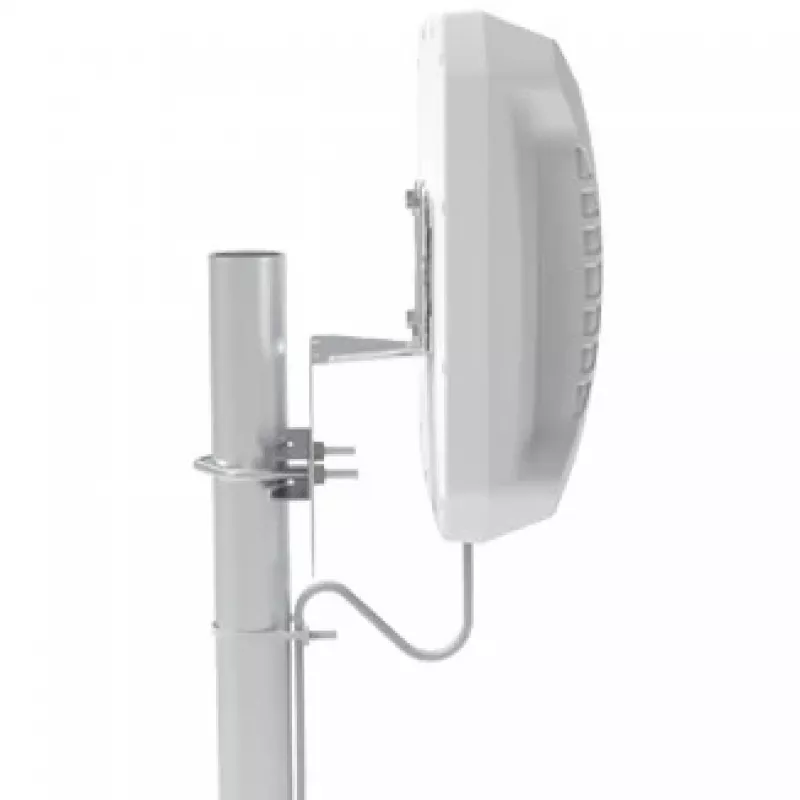

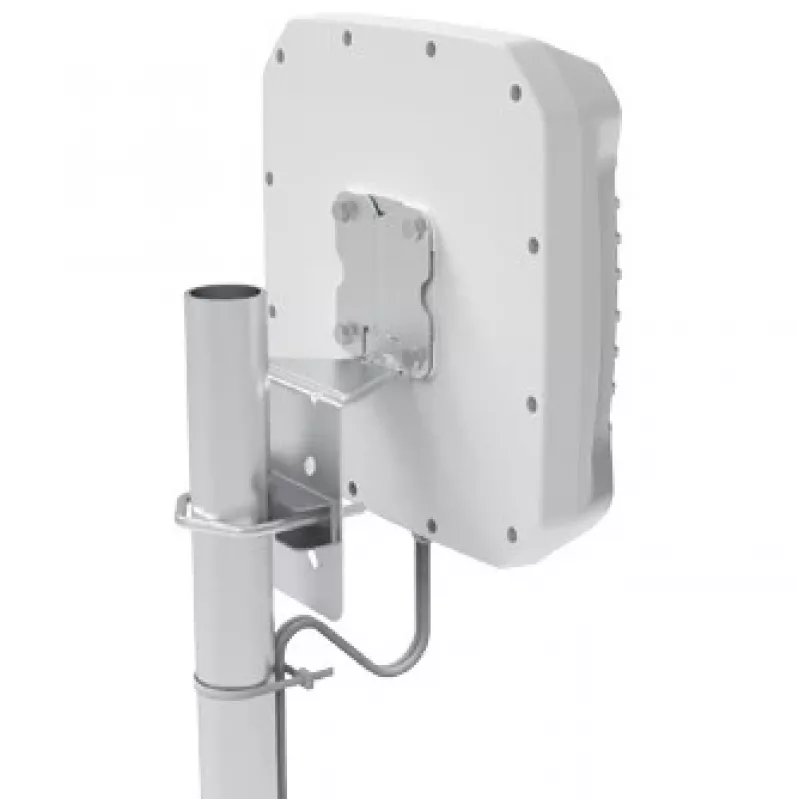

Mount the antenna oriented toward the desired cell tower or signal source to take advantage of its directional gain. Connect the antenna to your modem, router or radio using an appropriate low-loss coaxial cable terminated to the N-type female connector. For MIMO operation, ensure both antenna signal paths are connected correctly to the corresponding modem/router ports. Secure the antenna on a mast or wall bracket at an elevated location free from large obstructions for best line-of-sight performance.

Recommendations

For optimal results, perform an initial signal survey and adjust azimuth and elevation to maximise received signal strength and throughput. Use high-quality, low-loss coaxial cable and watertight N-type connections for outdoor installations. Avoid mounting near large metal surfaces that can disturb the antenna’s radiation pattern.
