APC NetShelter WX AR109, 9U, armario de parcheo de 19 pulgadas, montaje en pared, sin montar, 400 mm de profundidad

Product description
This compact lockable rack is suitable for all kinds of 19 inch IT/network equipment. With 9U internal height and 2 adjustable rack mount styles, you can easily mount rack-mountable devices (max 329mm deep). Due to its limited dimensions and weight (12.7KG), it is easy to mount on the wall. Because the door can be mounted to open both right and left, it fits in almost any environment.

Easy transport
This APC patch cabinet is delivered unassembled, making this rack easy to transport and store.

Placement
This rack can be mounted on the wall as a patch, edge or network cabinet using 4 recesses at the rear (suitable for up to max m6 bolts). However, because its door is free from the ground, this server rack can also be placed upright. This makes it suitable for many environments. Installation materials for wall mounting are not included.

Cable and accessory integration

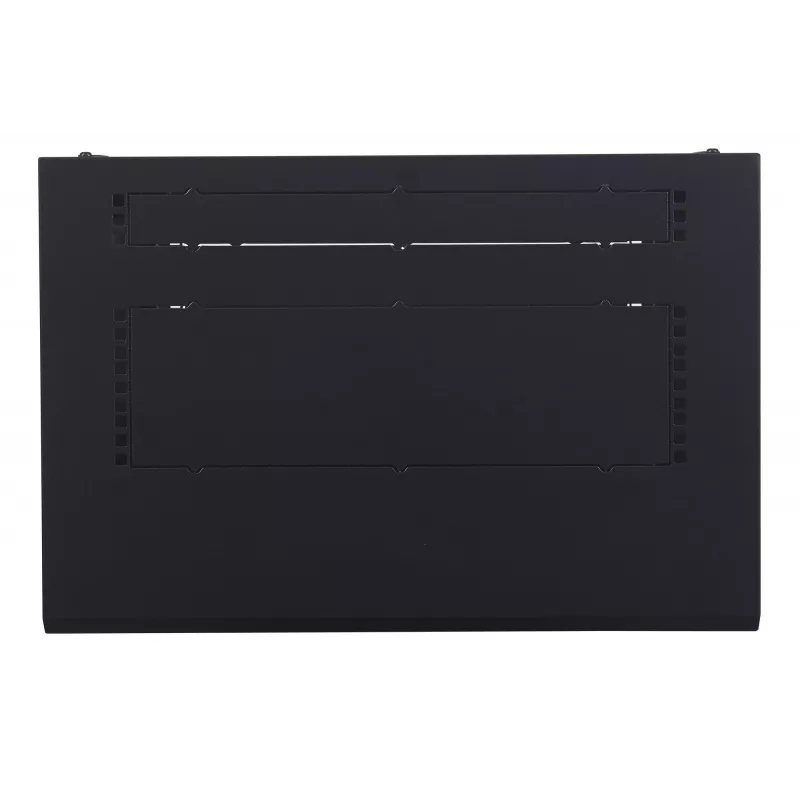

The bottom and roof of this patch cabinet are pre-treated, see photo top, so that they can be easily adjusted and thus made suitable as a cable outlet or for installing a patch panel (AR8452).

Easy assembly
This wall-mounted server rack is designed for quick and easy assembly and all necessary materials and tools for assembly except a spirit level are included, see manual. A template for wall mounting is also included.

Multiple sizes
The unassembled black NetShelter WX wall enclosures are available in three heights, 6U (AR106), 9U (AR109) and 12U (AR112). All 3 can handle a maximum static load of 90.7KG.

Rackmount styles
The 2 rackmount styles can be mounted in 6 positions in the rack and at each position it is possible to fine-tune the exact position up to 23 mm, see documentation.

Safety
Mounted network equipment in the rack is safe, because the door at the front is equipped with a lock. 2 keys are included.

Warranty
The standard factory warranty is 5 years.


Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack is packaged unassembled for smaller storage and delivery and takes up 60% less space than the assembled. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray can be top or bottom mounted (sold separately). Top and bottom feature knockouts of 1U or 2U mounting space for accessories. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 9U Wall mount cabinet, 8.9 to 12.9 inches mounting depth, 200lb weight capacity, 19 rack width, ships unassembled, 5 year APC warranty

How to use

Mount the rack on a suitable load-bearing wall using appropriate anchors and fixings for the wall material. Install equipment into the 19" mounting rails, observing the maximum load distribution and keeping heavier devices lower in the rack. Ensure sufficient airflow and cable management to maintain equipment accessibility and thermal performance.

Recommendations

Verify wall strength and use recommended mounting hardware. Distribute weight evenly, maintain clear ventilation around the rack and follow manufacturer guidelines for equipment mounting to ensure safe, reliable operation.
