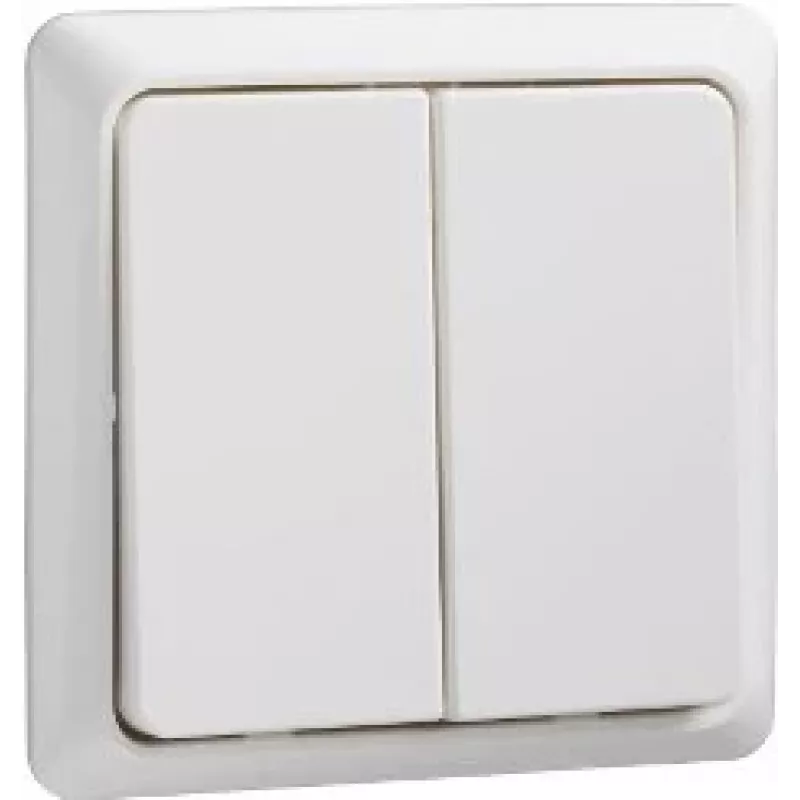

APC Schneider Electric Merten System M conmutador, blanco polar termoplástico, 10AX 250V, empotrar, IP20, bornes de tornillo, libre de halógenos 506254

The APC Schneider Electric 506254 stands apart from generic light switches through its Merten System M design heritage, combining a clean polar white finish with robust thermoplastic construction. This two-way switch (Wechselschalter) is engineered for reliable control of lighting from two locations, making it ideal for staircases, hallways, and large rooms. Its rocker mechanism delivers a satisfying tactile response, while the flush-mounted profile integrates seamlessly into standard wall boxes. Unlike basic switches, this unit is halogen-free, supports illumination via a separate lamp (not included), and is VDE certified for safety.

Highlights

• Two-way switching (Wechselschalter) for controlling a light from two points
• Rocker switch mechanism with a smooth, precise action
• Merten System M design line – compatible with System M frames and inserts
• Polar white (RAL 9010 equivalent) glossy thermoplastic housing
• Rated 10 AX, 250 V AC – suitable for resistive and inductive loads
• Flush-mounted (Unterputz) installation with screw terminals
• IP20 protection – for indoor dry locations
• Illuminable with a separate lamp (not included)
• Halogen-free material for improved environmental profile
• VDE certified – meets German electrical safety standards

In daily use

Installation is straightforward for a qualified electrician: the switch fits into a standard flush-mounted box and connects via screw terminals accepting rigid or flexible conductors from 1.5 to 2.5 mm². The rocker is designed for frequent operation, with a rated current of 10 AX that handles both resistive loads like incandescent bulbs and inductive loads such as fluorescent or LED drivers. The polar white finish resists yellowing and wipes clean easily, maintaining a fresh look in residential or commercial settings. For added convenience, the switch can be illuminated by inserting a compatible glow lamp (not included), making it easy to locate in the dark. Operating temperature ranges from -5 to 40 °C, ensuring reliable performance in typical indoor environments.

Full specifications

• Brand: APC
• Model: 506254
• MPN: 506254
• EAN: 4013984104240
• Product type: Two-way switch (Wechselschalter)
• Switch mechanism: Rocker (Wippschalter)
• Design line: Merten System M
• Colour: Polar white (RAL 9010 equivalent)
• Housing material: Thermoplastic, glossy
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Mounting type: Flush-mounted (Unterputz)
• Connection type: Screw terminals
• IP protection class: IP20
• Number of rockers: 1
• Illuminable: Yes (with separate lamp, not included)
• Halogen-free: Yes
• Operating temperature: -5 to 40 °C
• Storage temperature: -25 to 50 °C
• Terminal capacity (rigid): 1.5 - 2.5 mm²
• Terminal capacity (flexible): 1.5 - 2.5 mm²
• Compatibility: Merten System M frames and inserts
• Certification: VDE

Final note

The APC Schneider Electric 506254 is a dependable choice for anyone seeking a high-quality two-way switch that blends seamlessly with the Merten System M range. Its robust build, safety certifications, and clean aesthetics make it a lasting addition to any electrical installation.
