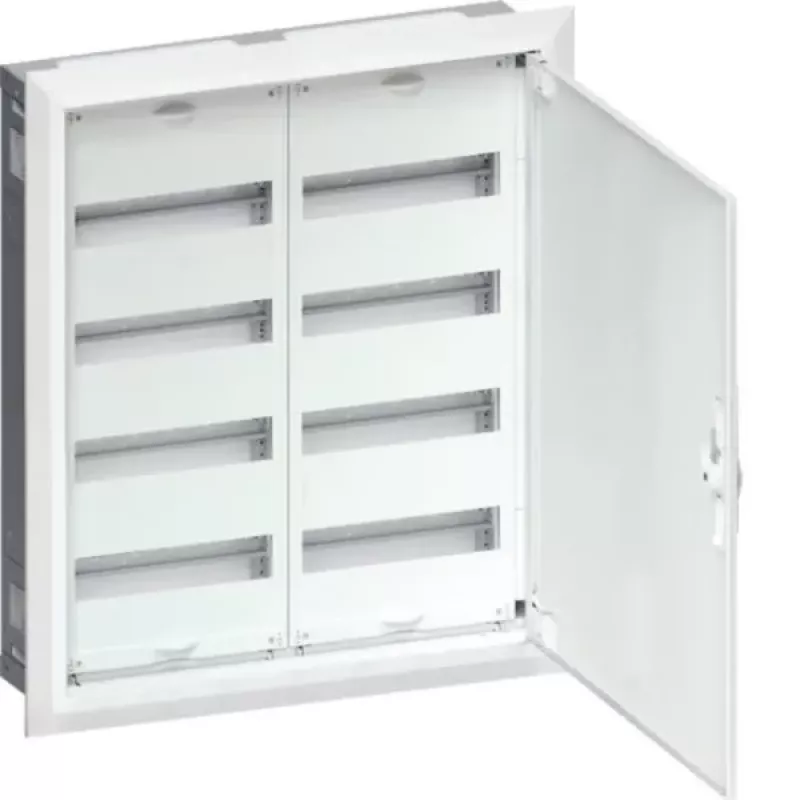

Armario de distribución empotrado HAGER FWU42S, 96 módulos, 4 filas, IP30, blanco

Flush-mounted distribution board for electrical installations, providing 96 module units across 4 rows in a compact, double-insulated steel enclosure. The FWU42S is designed for recessed installation in walls, offering a clean, space-saving solution for organizing circuit breakers, residual current devices, and other modular devices.

Advantages

The steel sheet construction with a hinged door ensures durability and easy access for maintenance. The board is rated IP30, suitable for indoor use where protection against solid objects larger than 2.5 mm is required. With a rated current of 63 A and voltage of 400 V AC, it handles typical residential and commercial distribution needs.

Suitable for

• Residential electrical distribution
• Commercial building sub-distribution
• Flush-mounted wall installations

Key specifications

• Mounting type: Flush-mounted (UP)
• Number of module units: 96
• Number of rows: 4
• Ingress protection: IP30
• Protection class: Class II (double insulated)
• Enclosure material: Steel sheet
• Door material: Steel sheet
• Colour: White (RAL 9010)
• Rated voltage: 400 V AC
• Rated current: 63 A
• Recess dimensions (H x W x D): 725 x 350 x 110 mm
• Overall dimensions (H x W x D): 750 x 380 x 112 mm
• N-terminal connections: 4 x 25 mm² + 24 x 4 mm²
• PE-terminal connections: 4 x 25 mm² + 24 x 4 mm²
• Door opening angle: 120°

Recommendations

For optimal performance, ensure the recess dimensions match the specified cutout. Use appropriate cable glands and maintain proper bending radii for incoming cables. The board is intended for installation by qualified electricians in accordance with local regulations.
