Armario de pared EFB Elektronik 691706VN.1 – 5U, IP20, 50 kg, gris

EFB Elektronik 691706VN.1 is a wall-mounted rack cabinet with a 5U vertical steel-sheet housing, intended for mounting networking and telecom equipment. The compact, grey enclosure saves floor space while providing a secure, organized installation area for small servers, switches or patch panels. The cabinet is fully pre-assembled and rated IP20, supporting up to 50 kg of equipment.

Advantages

The cabinet comes completely pre-assembled in a robust steel sheet housing with a front-sided 19" punched profile for straightforward equipment mounting. A front door with a 4 mm certified safety glass window allows visual inspection without opening the cabinet. The front door is fitted with a latch for secure closure. The compact design is suitable for locations with limited floor space and simplifies cable and device organization.

Suitable for

• Small network switches and routers
• Patch panels and cable termination
• Compact server or appliance installations up to 50 kg
• Telecom and network wall-mounted deployments

Key specifications

• Model: EFB Elektronik 691706VN.1
• Rack units: 5U
• Mounting: Wall-mounted, vertical
• Material: Steel sheet housing
• Protection class: IP20
• Load capacity: 50 kg

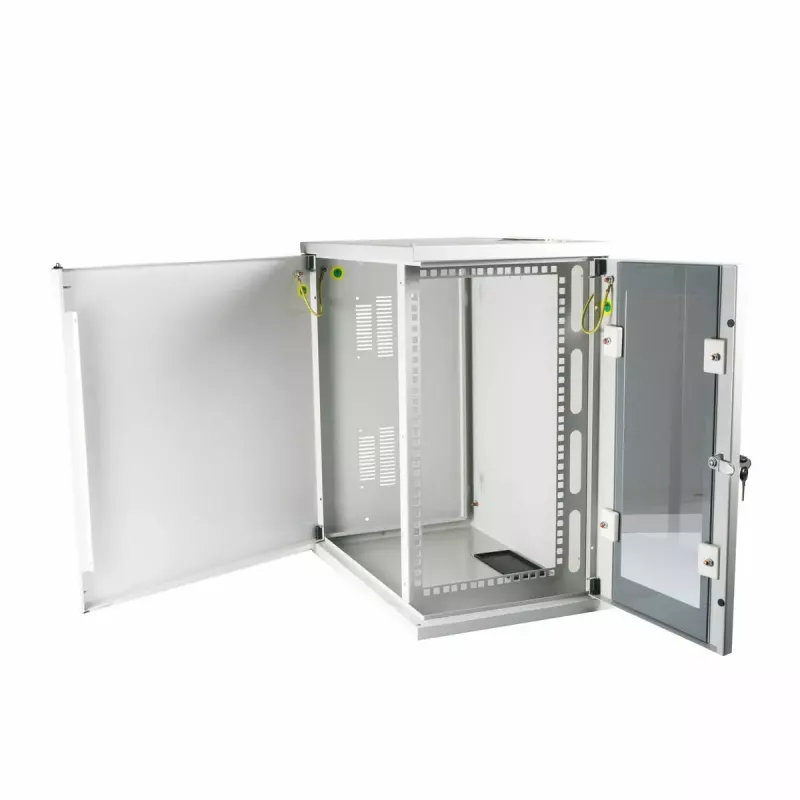

• Front: 19" punched profile

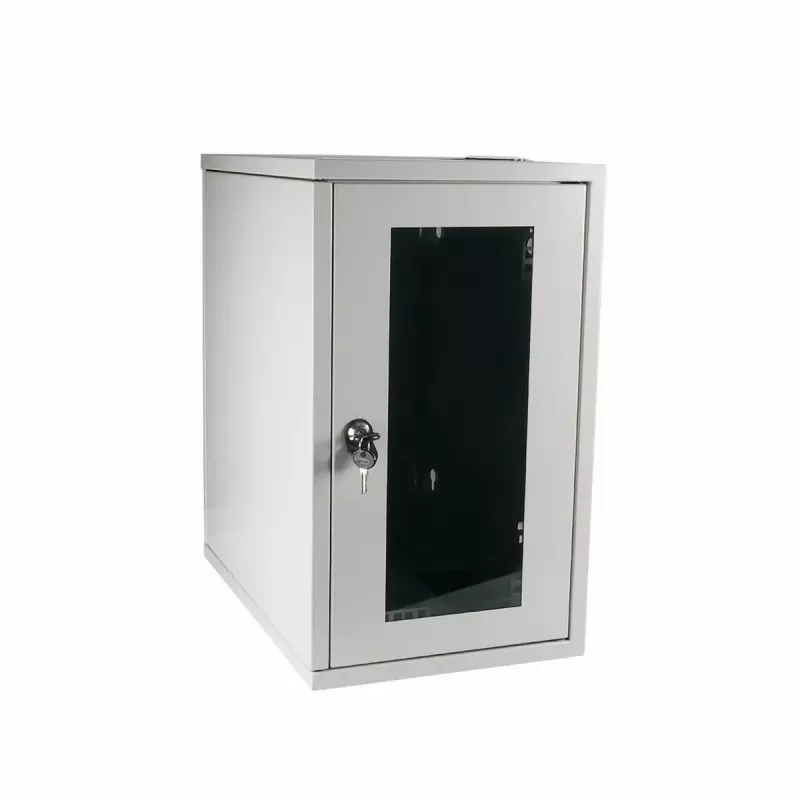

• Front door: Windowed with 4 mm certified safety glass, latch closure
• Finish: Grey
• MPN: 691706VN.1, EAN: 4049759300869

How to use

Mount the cabinet securely to a load-bearing wall using appropriate anchors and fasteners for the wall material. Install 19" equipment into the punched profile rails according to standard rack mounting practices; use compatible rails or cage nuts if required. Route cables through available entry points, secure them with cable ties or management accessories, and ensure the total equipment weight does not exceed the 50 kg rating. Use the glass-front door for status checks without opening the cabinet; open via the latch when full access is needed.

Recommendations

Use appropriate wall anchors for the wall type, distribute equipment weight evenly across the 5U space, and avoid exceeding the 50 kg load limit. Ensure adequate ventilation around the cabinet and allow clearance for cable entry and maintenance; consult device manufacturers for individual ventilation and heat dissipation requirements.
