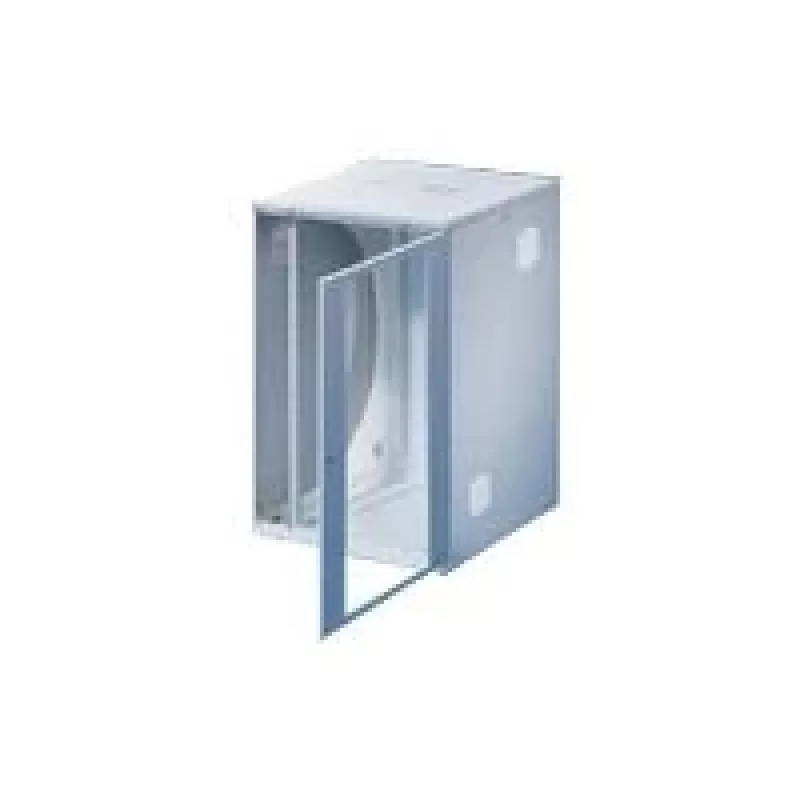

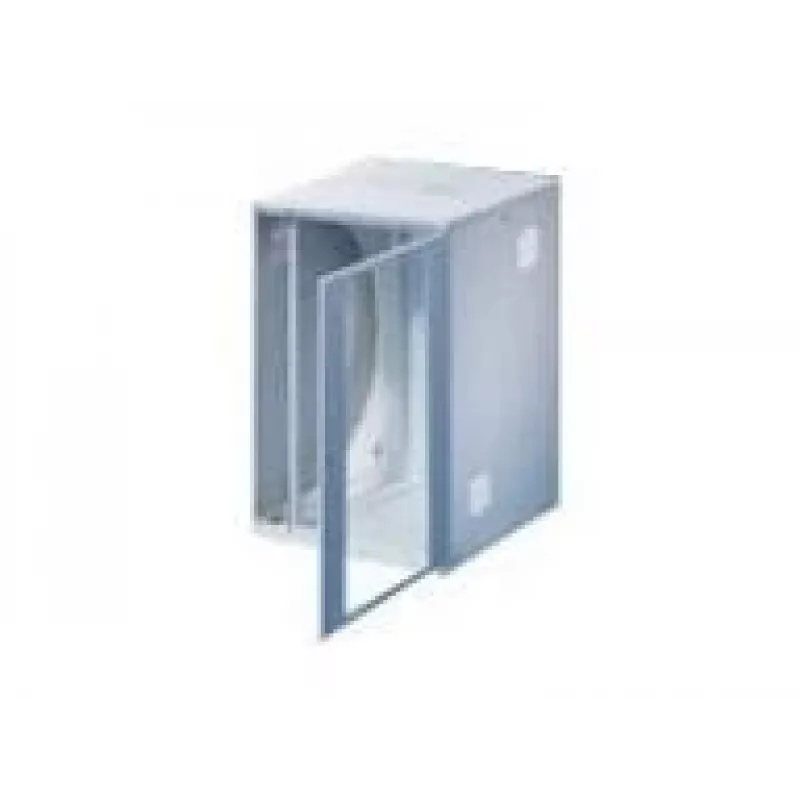

Rack Rittal DK 7507.020 12U gris

The Rittal DK 7507.020 12U Grey is a compact 12U network rack designed for secure storage of IT and network equipment. Built with a robust grey steel enclosure and a 12U capacity, the rack supports standard 19" mounting and provides a stable solution for small server, switch and patch panel installations. With dimensions of 600 mm width, 400 mm depth and 625 mm height and a weight of approximately 26.05 kg, it can be used either wall-mounted or floor-standing depending on site requirements.

Advantages

The cabinet offers a durable steel construction and a neutral grey finish that fits technical and office environments. Its 12U capacity and standard 19" rail spacing make it compatible with common rack-mountable equipment. The model supports both wall-mounted and floor-standing installation, allowing flexible placement in limited-space installations. The specified width, depth and weight ensure stable mounting and easy integration into existing infrastructure.

Suitable for

• Small server rooms and network closets
• Wall-mounted network points and telecom cabinets
• Switches, patch panels and rack-mountable power distribution units (PDUs)
• Secure mounting of routers and network appliances in offices or technical rooms

Key specifications

• Rack capacity: 12U
• Mounting standard: 19"
• Width: 600 mm
• Depth: 400 mm
• Height: 625 mm
• Weight: 26.05 kg
• Colour: Grey
• Brand: Rittal
• MPN: 7507020
• EAN: 4028177551411

How to use

Decide whether to install the cabinet on a wall or place it on the floor according to available space and load requirements. Securely fasten the unit using appropriate mounting hardware for wall installation, following local regulations and load-bearing capacity. For floor placement, ensure a level surface and, if required, anchor the cabinet to prevent tipping. Install 19" equipment onto the mounting rails using compatible screws and cage nuts, keeping airflow and cable routing in mind.

Recommendations

Use compatible 19" mounting hardware and observe manufacturer-recommended load limits. Provide sufficient ventilation and avoid placing heat-generating equipment in enclosed, unventilated spaces. When wall-mounting, verify wall structure and use appropriate anchors to support the cabinet weight and equipment load.
