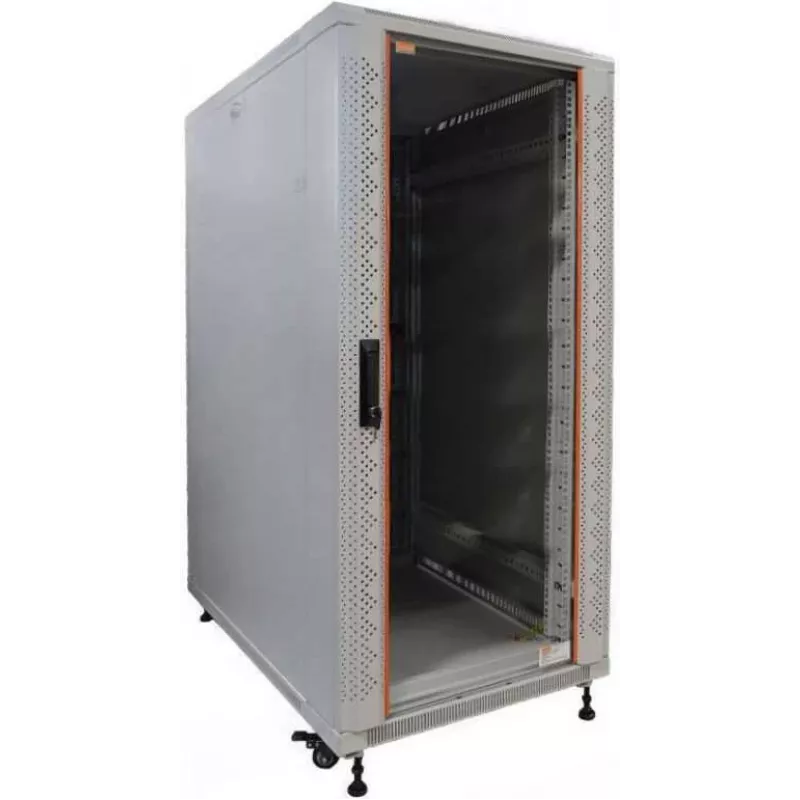

Armario de red IT-BUDGET 19 inch SRK - 27HE - 600x800 mm - puerta de cristal/acero - flatpack - gris claro (RAL 7035)

The IT-BUDGET SRK series network cabinet offers a robust and versatile solution for housing 19-inch rack equipment. This 27U model features a width of 600 mm and a depth of 800 mm, making it suitable for a wide range of networking and server applications. The cabinet is delivered as a flatpack for easy transportation and assembly on-site.

Advantages

Cost-effective flatpack design reduces shipping volume and allows flexible assembly. The combination of a safety glass front door and solid steel rear door provides both visibility and security. Removable side panels offer easy access for cable management and maintenance. The cabinet supports a static load of up to 600 kg, ensuring durability for heavy equipment.

Suitable for

• Network switches, patch panels, and routers
• Server and storage devices within 19-inch form factor
• Data centers, server rooms, and office IT infrastructure

Key specifications

• Rack Units: 27U
• External dimensions: 600 mm (W) x 800 mm (D) x 1360 mm (H)
• Front door: Single-section safety glass door with lock
• Rear door: Single-section solid steel door with lock
• Side panels: Removable and lockable
• Construction: Flatpack (unassembled)
• Colour: Light Grey (RAL 7035)
• Material: Steel
• Static load capacity: 600 kg
• Mounting profiles: 4x 19-inch profiles, depth-adjustable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive ventilation, fan unit ready
• Protection class: IP20
• Lock type: Profile cylinder lock (front and rear doors)
• Usable depth: Approx. 700 mm
• Included accessories: 4x leveling feet, 4x castors
• Compliance: RoHS, CE

Recommendations

For optimal cable management, consider using horizontal and vertical cable managers. Ensure adequate ventilation for active equipment; optional fan units can be installed.
