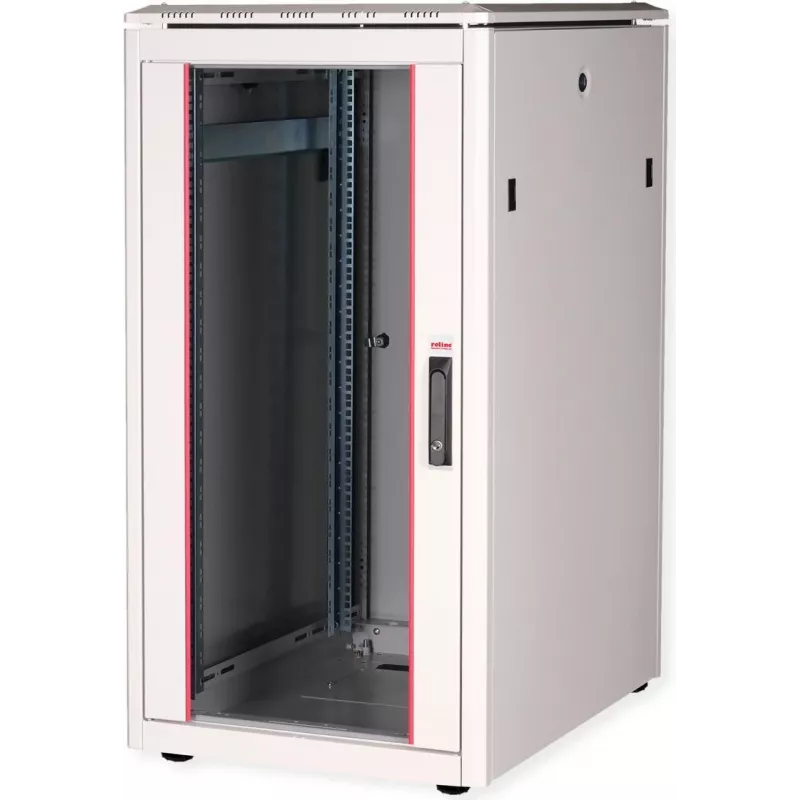

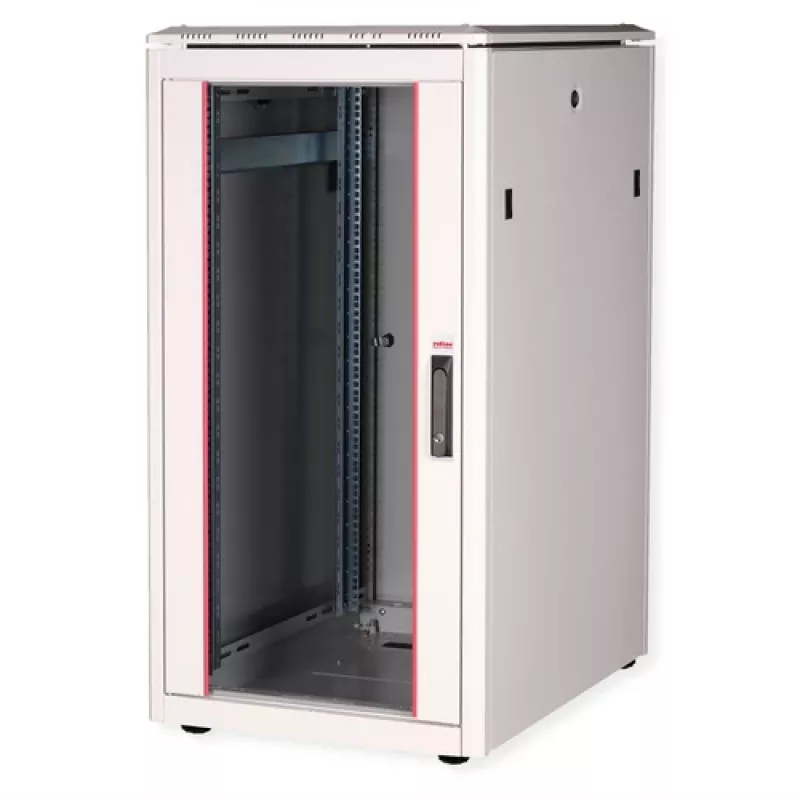

ROLINE Pro Armario de red 22U 600x800mm con puerta de cristal, gris claro RAL 7035 26.21.0050

Managing network equipment in an office or server room often means dealing with cable clutter, limited access, and security concerns. The ROLINE Pro 22U network cabinet solves these issues by providing a sturdy, lockable enclosure that keeps your 19-inch devices organized, protected, and easily accessible. Its glass front door allows quick visual monitoring without opening the cabinet, while the steel rear door and lockable side panels ensure only authorized personnel can reach the hardware.

Who is it for

This cabinet is ideal for IT administrators, system integrators, and businesses that need a reliable, freestanding rack for servers, switches, patch panels, and other 19-inch equipment. It suits small to medium server rooms, network closets, or office environments where space is at a premium but security and organization are paramount.

Main features

• 22U height with 19-inch mounting rails, adjustable in depth for flexible equipment installation.
• Front door made of safety glass for clear visibility; rear door and side panels are steel and lockable.
• Light grey (RAL 7035) powder-coated steel construction, robust and professional.
• High static load capacity of 600 kg, suitable for heavy equipment.
• Passive ventilation with prepared openings for optional fan units to maintain airflow.
• Cable entry from top and bottom for clean cable management.
• Includes levelling feet for stable placement on uneven floors.
• IP20 protection rating, appropriate for indoor use.

Specifications

• Brand: ROLINE
• Model: 26.21.0050
• MPN: 26.21.0050
• EAN: 7630049600515
• Rack units: 22U
• External dimensions (W x D x H): 600 x 800 x 1166 mm
• Rack width: 19 inch (48.3 cm)
• Colour: Light grey (RAL 7035)
• Material: Steel
• Front door: Glass
• Rear door: Steel
• Side panels: Removable, lockable
• Load capacity: 600 kg
• Protection class: IP20
• Ventilation: Passive, prepared for fan unit
• Cable entry: Top and bottom
• Mounting rails: Adjustable depth
• Included accessories: Levelling feet
• Construction: Assembled

Tips

To maximize airflow, consider installing additional fan units in the prepared openings if you are housing high-density switches or servers. Use the adjustable mounting rails to create extra space for deep equipment or cable management bars. Always lock the side panels and rear door after installation to prevent unauthorized access.
