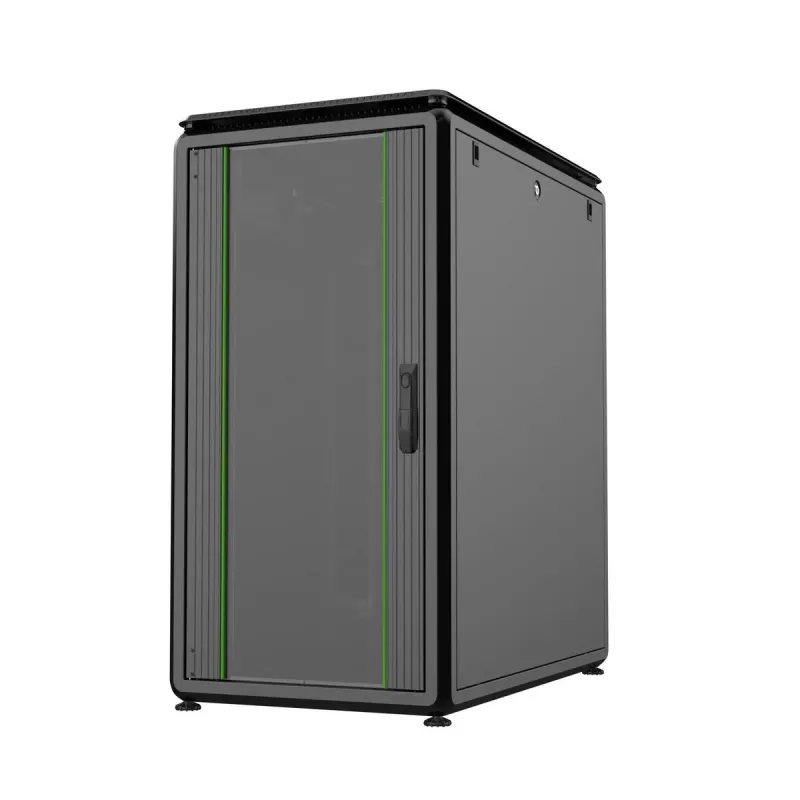

Armario rack Lanview RDL22U61BL 22U negro 600kg IP20

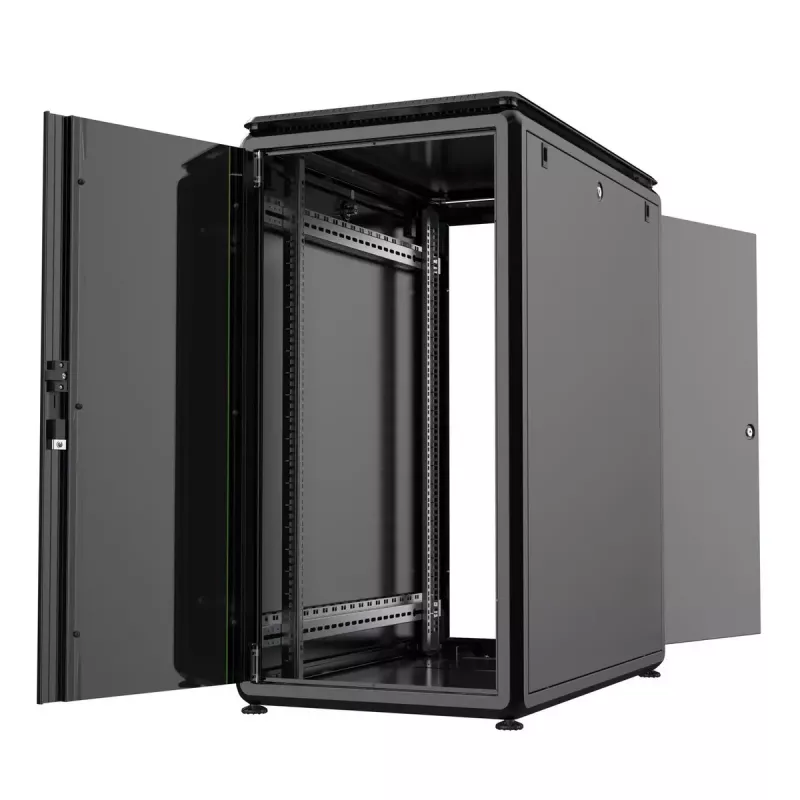

Lanview RDL22U61BL is a free-standing 22U rack cabinet with dimensions W:600 x D:1000 x H:1164 mm, finished in black and rated IP20. Designed for office and equipment rooms, it supports up to 600 kg of mounted equipment and is supplied in a flatpack option for economical transport and storage. The cabinet features adjustable installation rails, removable side panels, split front glass doors and a removable rear metal door to simplify installation and maintenance.

Advantages

The cabinet combines a robust steel structure with a top-class profile design that allows easy assembly using simple tools. Adjustable depth rails and a wide range of accessories provide flexible configuration options. Cable management is improved by an integrated provision for vertical cable manager modules, a wide bottom cable entry with a rubber-edged sliding entry module that protects cables and reduces dust ingress, and tie-up structured side brackets for securing cable runs. Split front tempered glass doors and lockable side and rear panels provide controlled access from all sides.

Suitable for

• Small to medium server rooms and network closets
• Office IT infrastructure and telecom equipment
• Environments requiring secure, indoor equipment mounting (IP20)
• Installations where transport efficiency is desired (flatpack)

Key specifications

• Model: Lanview RDL22U61BL
• Rack capacity: 22U
• Dimensions (W×D×H): 600 × 1000 × 1164 mm
• Maximum load capacity: 600 kg
• Weight: 61 kg
• Protection rating: IP20
• Colour: Black
• Front door: Horizontally split, 4 mm tempered smoke glass with handle lock
• Rear door: Removable solid metal door with barrel lock

How to use

Unpack the flatpack components and follow the included assembly instructions to build the cabinet using standard hand tools. Adjust the installation rails to match equipment depth, mount equipment to the 19" rails within the 22U capacity, and route cables through the wide bottom entry. Install vertical cable management modules where needed and secure cable runs using the tie-up side brackets. Close and lock the split front glass doors and removable side or rear panels to restrict access after installation.

Recommendations

For reliable operation, install the cabinet indoors in an environment appropriate for IP20 equipment, ensure the total mounted weight does not exceed 600 kg, and distribute heavy devices evenly across the rack units. Use the rubber-edged cable entry and tie-up brackets to protect and organize cable bundles and routinely check locks and fastenings during maintenance.
