Armario rack de pared DIGITUS Dynamic-N 9U, 600x450 mm (AnxP), IP20, cerradura con llave, sin montar

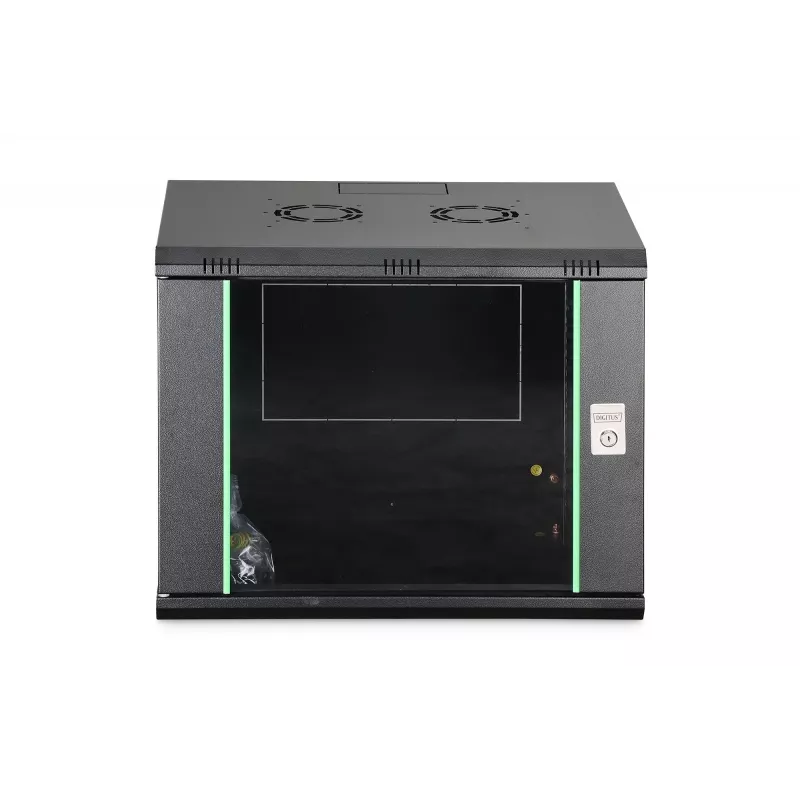

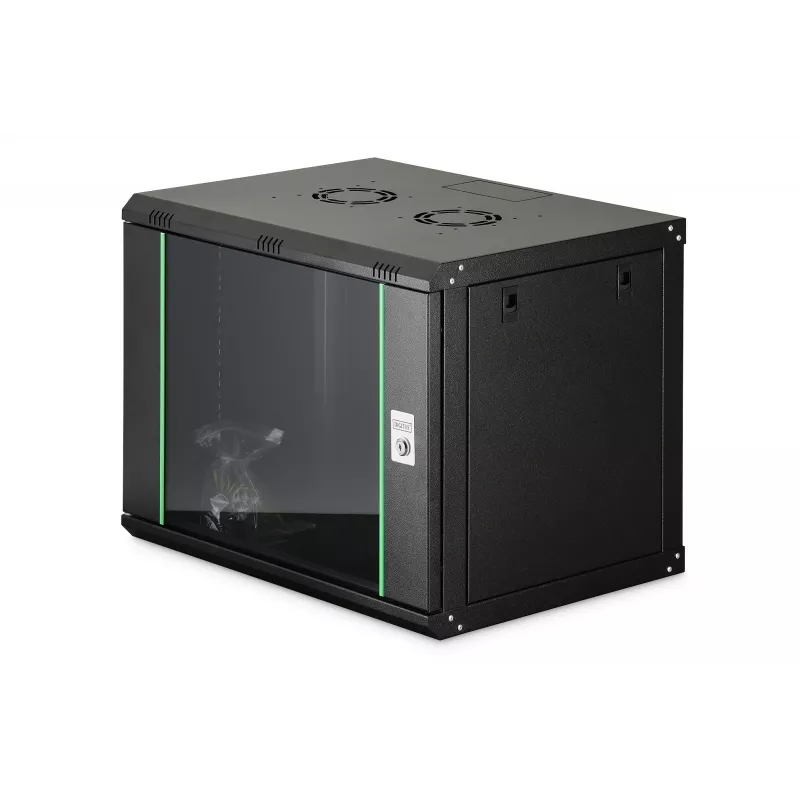

The DIGITUS Dynamic-N 9U wall-mounted rack cabinet is a compact 19" enclosure designed for network and telecom installations in server room edges, wiring closets and small IT spaces. It offers a 600 mm width and 450 mm depth, IP20 protection and lockable safety glass front door with a steel frame. The cabinet is supplied unassembled to optimise transport and storage and features adjustable 19" profile rails at front and rear, pre-punched cable entries and ventilation provisions for passive or active cooling.

Advantages

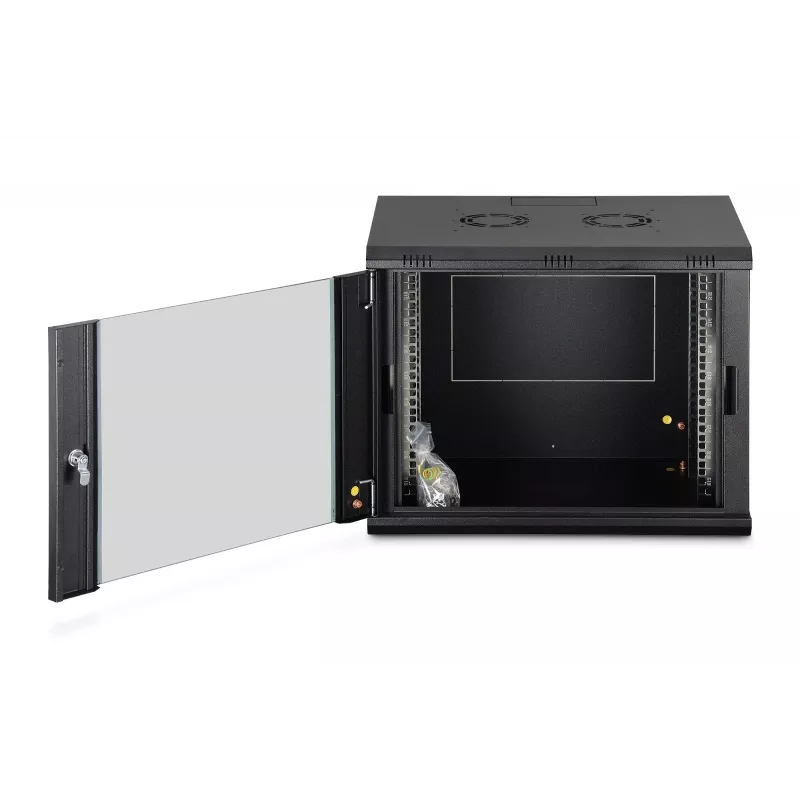

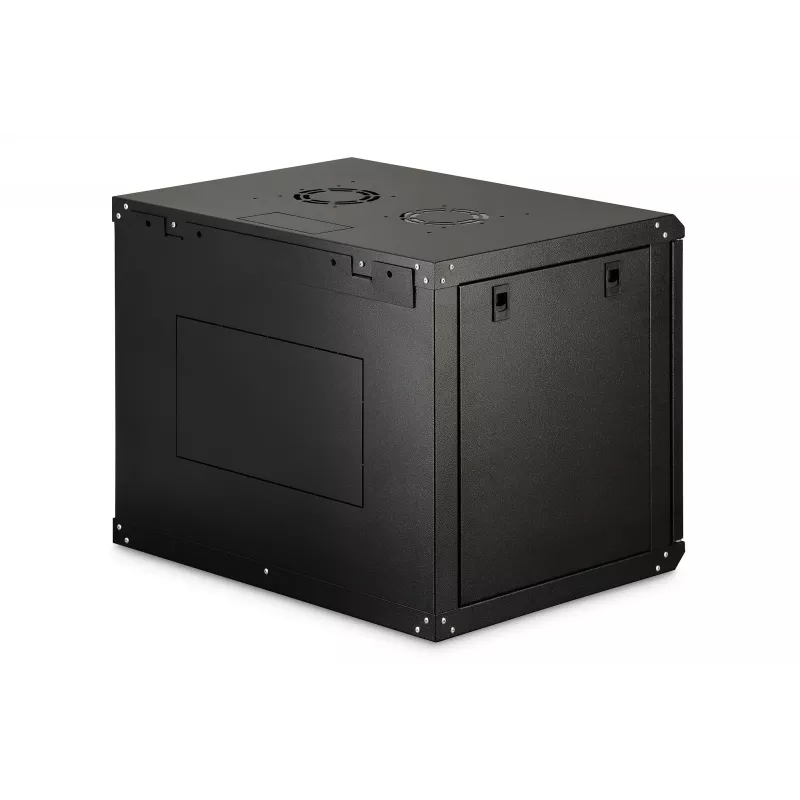

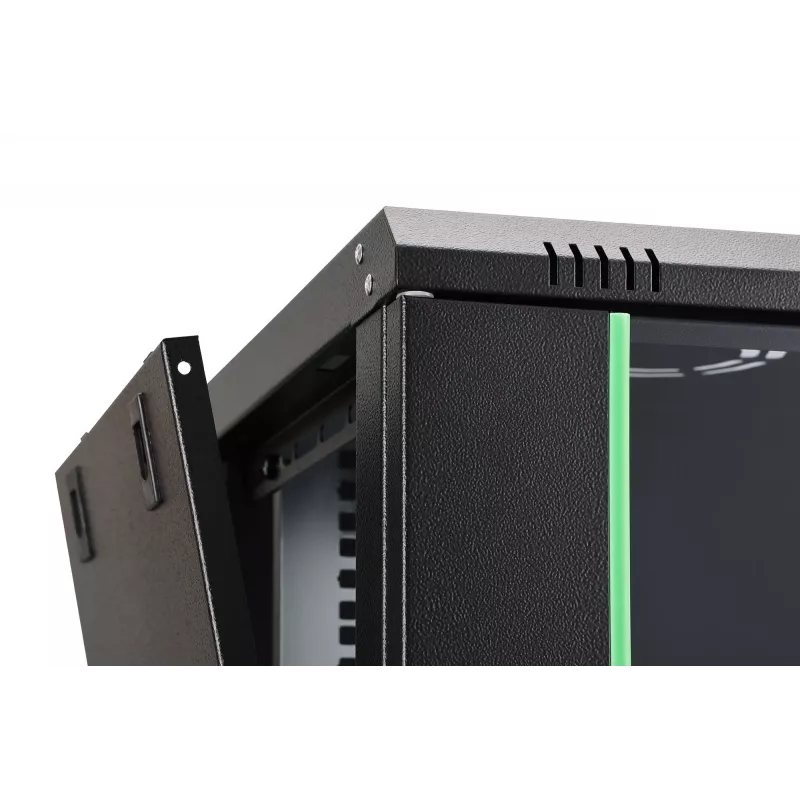

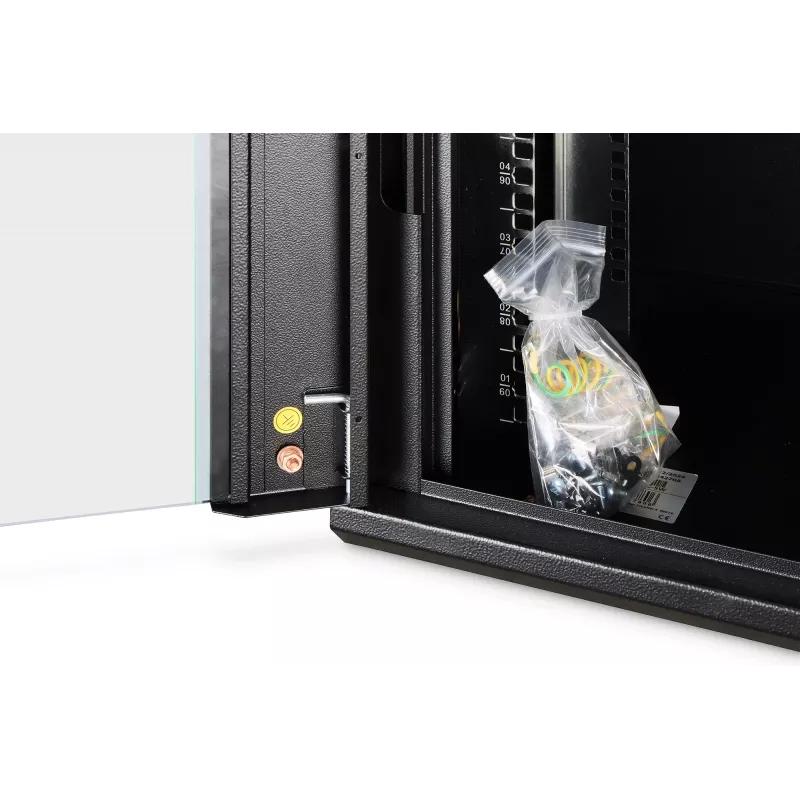

The cabinet combines a robust sheet-steel construction with readably marked, depth-adjustable 483 mm (19") profile rails, enabling straightforward mounting of switches, patch panels and other 19" equipment. A 1-point key lock on the front door and earthing points help secure and ground installed components. Pre-punched cut-outs at the roof, rear and base simplify cable routing and installation of fan modules while removable side panels and doors provide good accessibility for maintenance and modification.

Suitable for

• Edge server and network equipment in small server rooms and IT closets
• Patch panels, switches and small 19" devices up to 9U and 60 kg total load
• Telecom wall-mount applications in offices, retail or branch sites

When it may not be suitable

This 9U, 600x450 mm wall cabinet is not intended for large servers, high-density equipment or installations requiring higher ingress protection than IP20. It has a maximum recommended load of 60 kg, so heavy equipment racks or fully populated power distribution setups may exceed its capacity. Also, the cabinet is supplied unassembled, so time for assembly on site should be allowed.

Key specifications

• Rack capacity: 9U
• External dimensions (W x D): 600 x 450 mm
• Height: 474 mm
• Installation depth for components: approx. 219–320 mm
• Protection rating: IP20
• Material: 1.0–1.2 mm sheet steel with safety glass front door
• Colour: Black
• Weight: 16.8 kg
• Maximum equipment load: 60 kg

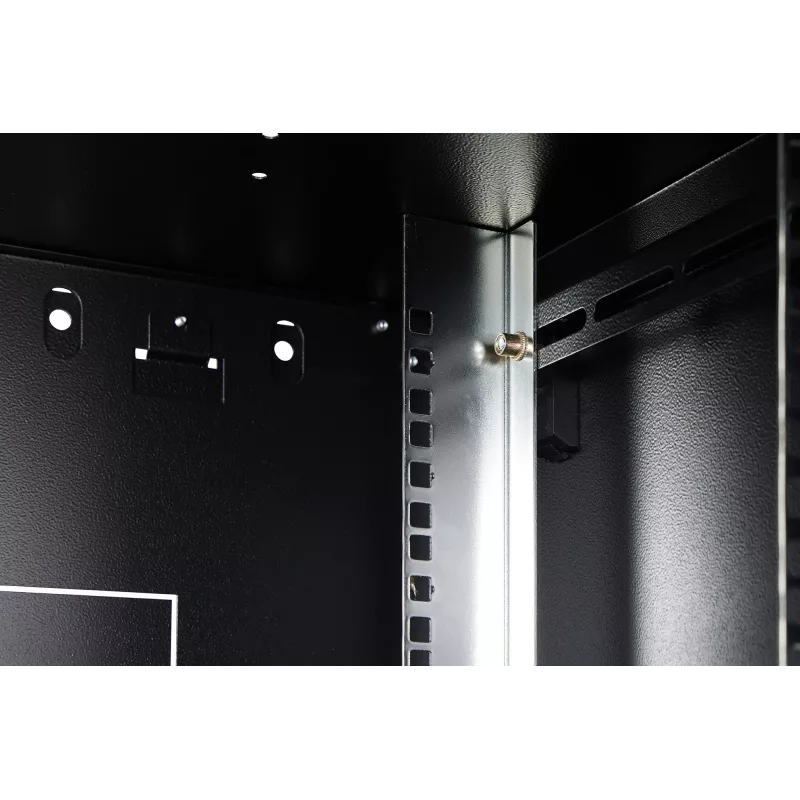

• Adjustable galvanized 483 mm (19") profile rails front and rear

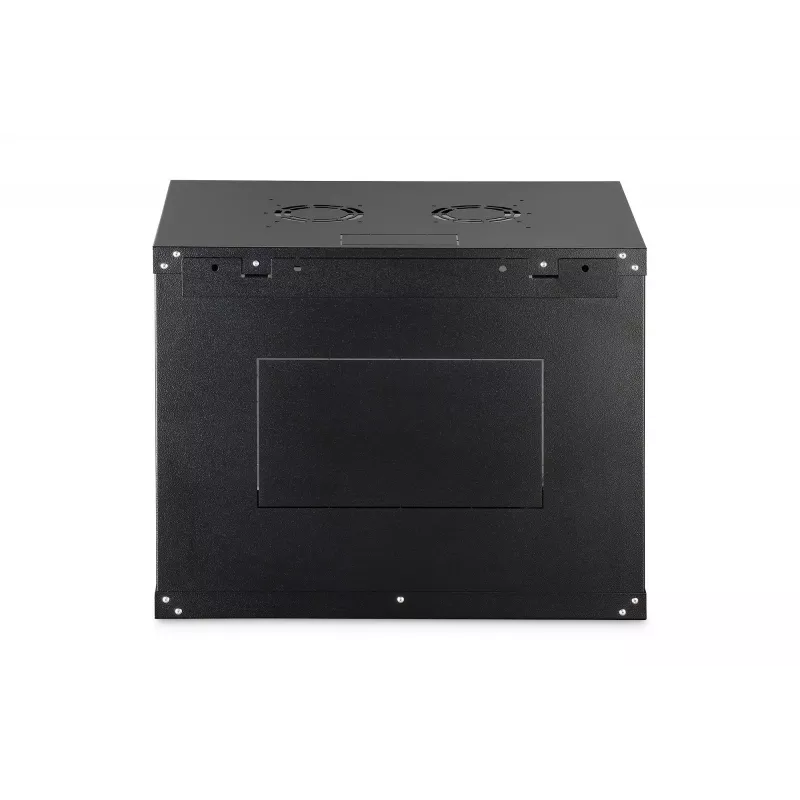

• Cable entry: pre-punched cut-outs in roof, rear and base
• Ventilation: ventilation slots and roof prepared for fan element

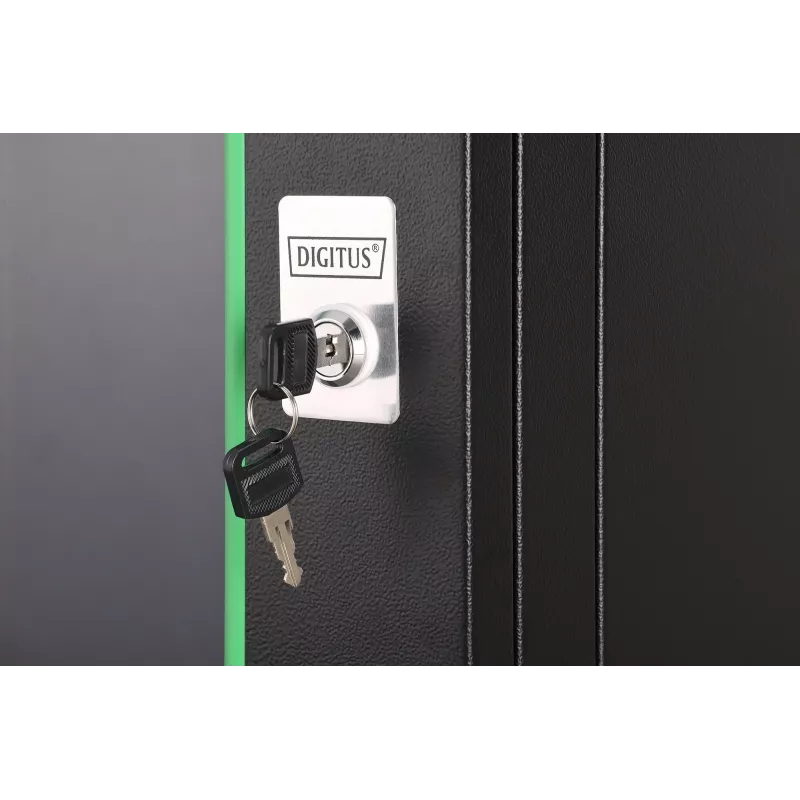

• Security: 1-point key lock on front door; removable panels and doors

How to use

Mount the supplied wall plate to a suitable load-bearing wall following the enclosed installation instructions, then fix the cabinet housing to the plate. Assemble the cabinet panels and doors as shown in the manual. Fit the 19" equipment onto the adjustable galvanized profile rails, using the height markings to position devices. Route cables through the pre-punched entries in the roof, base or rear and use the ventilation provisions or install a fan module if active cooling is required. Ensure all earthing points are connected and lock the front door with the supplied key after installation.

What to consider before purchase

• Confirm total weight and dimensions of planned equipment do not exceed 9U / 60 kg and the internal installation depth (219–320 mm)
• Check that IP20 protection is sufficient for the intended environment
• Allow time and space for on-site assembly and wall mounting
• Plan cable routing and any additional cooling (fan module) required

Recommendations

Place heavier devices lower in the cabinet to maintain stability on the wall mount, secure all earthing points and distribute cabling to avoid obstructing airflow. If the installation site is exposed to dust, moisture or higher mechanical risk, consider a cabinet with a higher IP rating or a floor-mounted solution.
